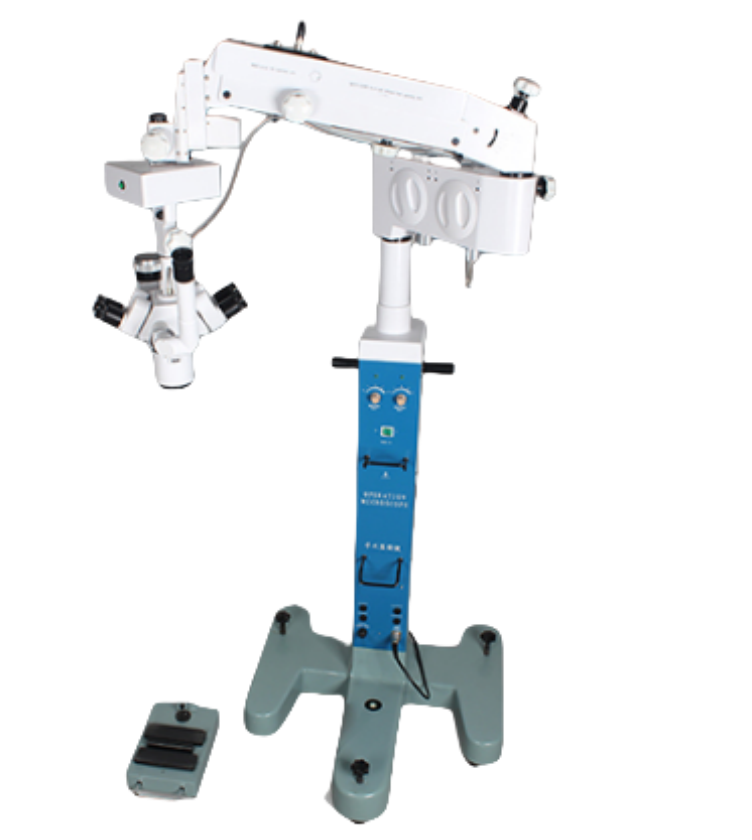

Surgical Microscope Dedicated for Maxillofacial Surgery ZJ LZL-6A

Head

1. The main mirror features a double – person and binocular 180° fixed posture, with the same optical path, magnification, and field of view.

2. Working distance: 200mm, 250mm, 300mm

3. Magnification: 5X – 25X motorized continuous zoom (manual operation is also available)

4. Field of view diameter: Φ82.5 ~ Φ11mm

5. Short – type “universal joint” structure monocular teaching mirror

6. Eyepiece: 12.5X Φ27.5mm Erfle – type wide – angle eyepiece

7. Interpupillary distance adjustment range: 54mm ~ 75mm

8. Diopter adjustment: ±6D

9. Motorized fine adjustment range: 40mm

Frame

1. The frame adopts a spring – arm balanced type.

2. Coarse adjustment range: 500mm (from the ground to the large objective lens: 900 ~ 1400mm), motorized fine adjustment range: 40mm

3. Maximum extension distance: 1200mm

4. X – Y plane mover, can automatically return to zero, movement range (front – back, left – right): 40mm for each direction

5. Independent dual – light source illumination: The halogen lamp uses 4 – bulb conversion, 150W/15V imported from Germany. Coaxial cold light source illumination, with the surgical surface illuminance ≥ 60000LX. LED illumination with long – life natural light can be optionally equipped, and the surgical surface illuminance can reach above 160000LX. Both light sources can be switched.

6. Power supply: 220V/50HZ

7. Power consumption: 200W

8. Multi – function waterproof foot switch
