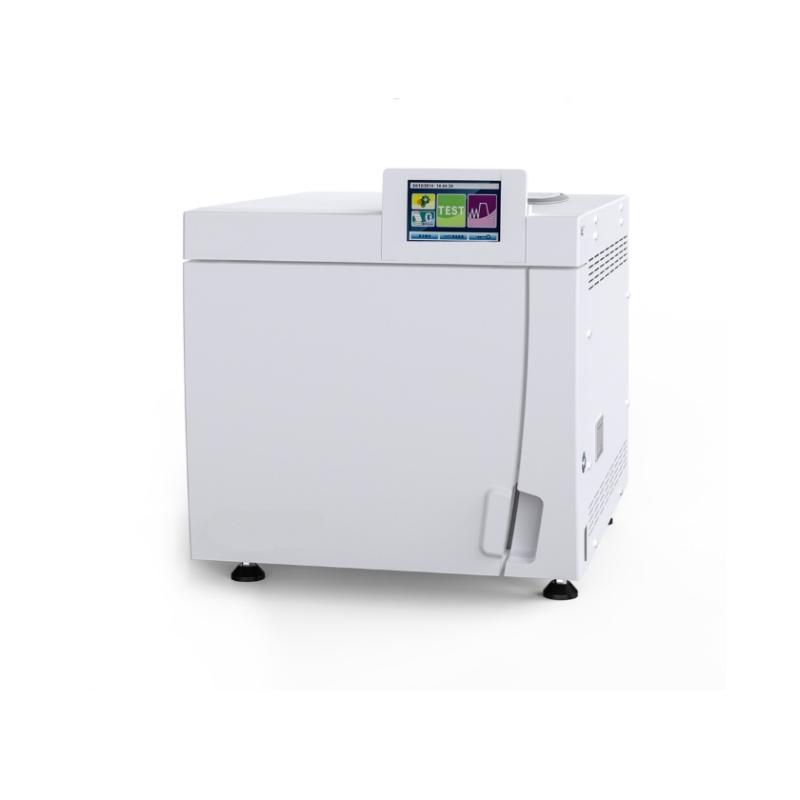

Steam Sterilizer class B KD JN-29
Features high-efficiency, full-wave sterilization. Handles diverse instrument types, meeting complex sterilization needs.
Complies with EN 13060-2014, supporting Class B and Class S sterilization. Achieves-85Kpa vacuum, <0.2% residual humidity. Sterilizes packed/unpacked, solid, Hollow A/B, and Hollow B pipeline instruments.
Description
Technical Specifications
European Class B and S, in accordance with EN 13060-2014 standard, three times(CLASS B) and one time(CLASS S) pre-vacuum sterilization.
Vacuum index:-85Kpa.Residual humidity <0.2%.Being able to sterilize instruments those are packed, unpacked,solid,Hollow A,Hollow B and Hollow B pipeline.High efficiency,all wave sterilizing.
Model | Voltage(V/Hz) | Power(VA) | Vol(L) | Chamber(mm) | Product Size(mm) | Pack Size(mm) | G.W/N.W(kg) | Space(cm) |
|---|---|---|---|---|---|---|---|---|
JQ-23 | 230/50/60 | 1600 | 23 | Φ250×450 | 653×500×458 | 740×595×560 | 62.0/58.0 | 60 |
JQ-29 | 230/50/60 | 3500 | 29 | Φ319×420 | 688×565×500 | 805×685×750 | 120.0/104 | 70 |
JN-45 | 230/50/60 | 5500 | 45 | Φ319×620 | 838×565×500 | 975×685×750 | 136.0/119.0 | 80 |
