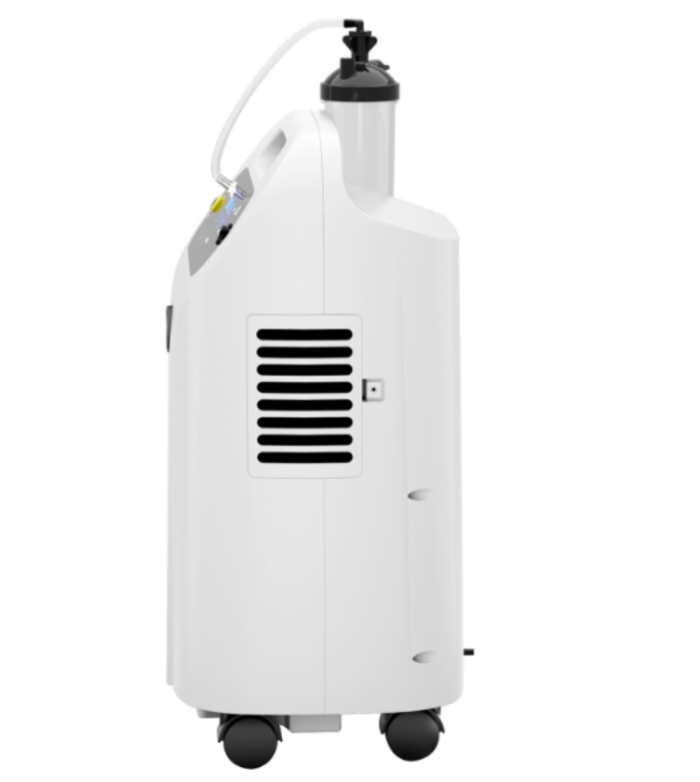

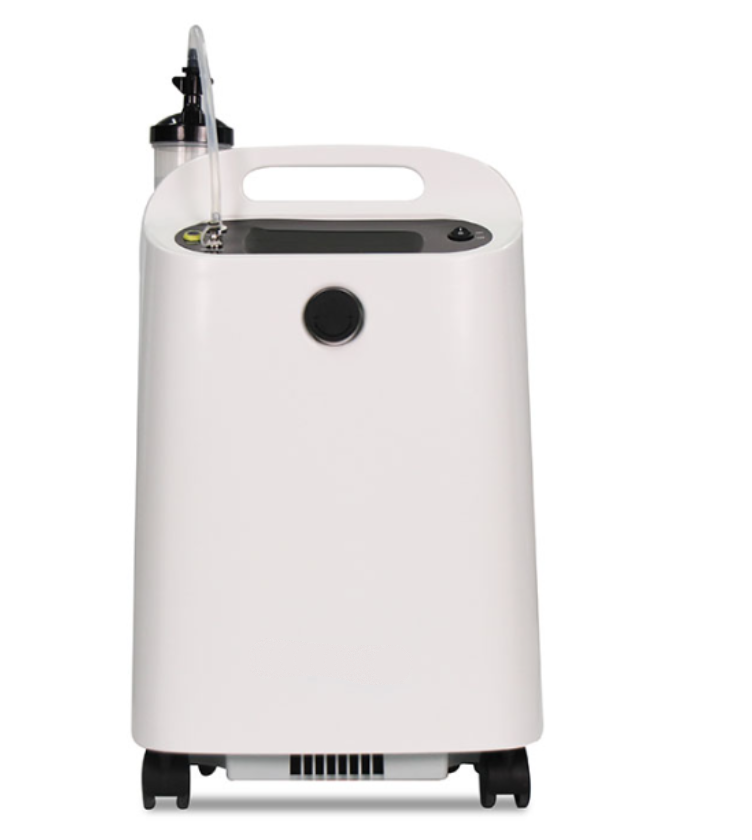

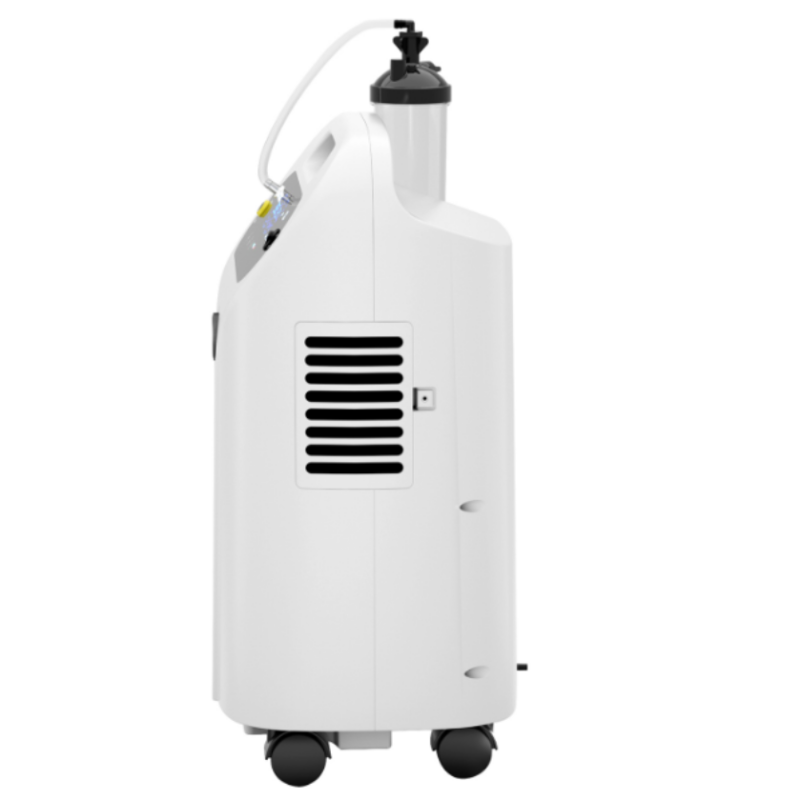

Stationary Oxygen Concentrator MZ JAY-5HW

  • This concentrator: 0.5 – 5L/min, 93%±3% O₂. ≤350W, ≤38dB. 3 alarm configs (A/B/C) for safety.

  • Medical – grade O₂, 24/7 use. 6PSI humidifier, 4 castors (2 brakes). Simple LCD, multi – alarm options.

  • medical O₂, good for pulmonary fibrosis. 24/7, auto – adapt to altitudes. 6PSI humidifier, mobile castors.

Add to quote
Categories: , Tags: ,
Description

Features

  • With medical grade oxygen concentration above 90%, better treatment effect for patients with pulmonary fibrosis;

  • Innovative cooling technology to ensure 24/7/365 operation;

  • Humidifier bottle with a pressure relief value of 6PSI, safer and more comfortable;

  • Four flexible castors with two brakes, easy to move or situate in any direction, safer and more convenient;

  • Simple operation functions and easy – to – read LCD Display;

  • JAY – 5HW can provide medical grade oxygen and automatically adapting to different altitude level.

Specification

Specification JAY-5HW
Flow Rate 0.5 – 5L/min
Net weight 15Kgs
Oxygen Concentration 93% (±3%)
Power Consumption ≤ 350W
Outlet Pressure 6 – 10PSI(0.04 – 0.07mpa);
Input Frequency 50Hz ; 60 Hz
Sound Level ≤38dB
Input Voltage AC230V ± 10% ; AC110V ±10%
Alarm Configuration A: Oxygen concentration on – site display. Low flow visual and audible alarm.
Configuration B: Configuration A+remote control, showing humidity/temperature/altitude, with visual&audible a alarm for high/low pressure low voltage, power failure alarm.
Configuration C: Configuration A+remote control, showing humidity/temperature/altitude, with visual&audible alamm for high/low pressure low voltage and warmup failure, extra voice broadcast.
