Stainless Steel Stretcher Compartment HR YHR-D1/D2

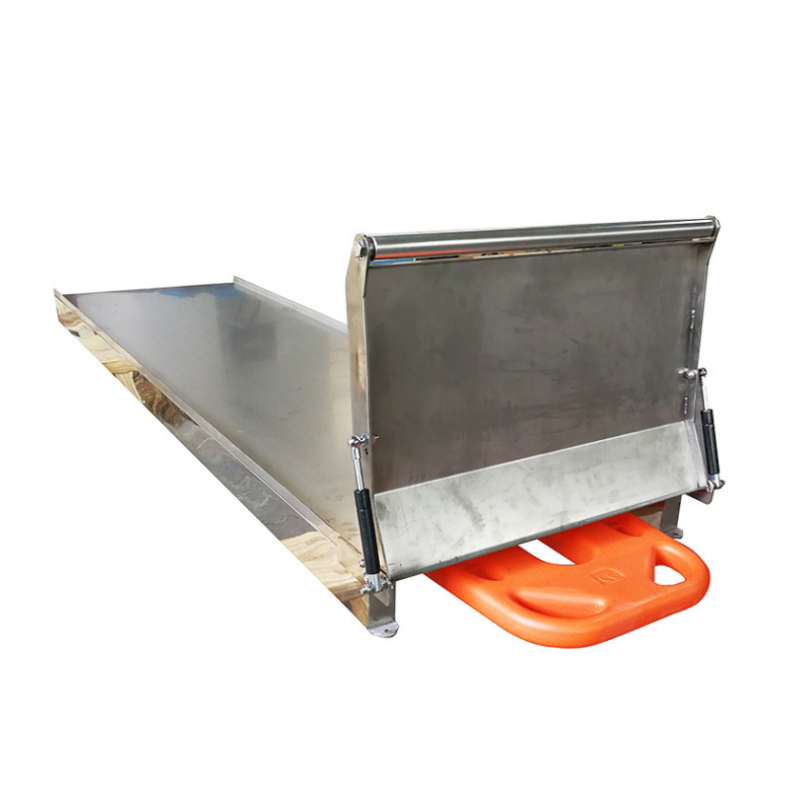

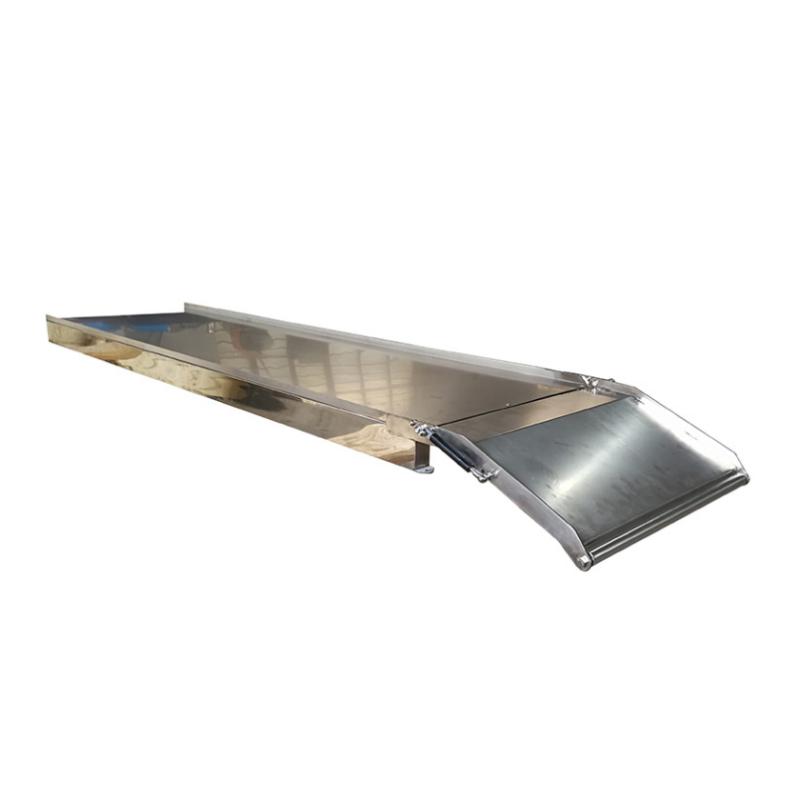

YHR-D1 and YHR-D2 stretcher compartments, made entirely of SUS201 stainless steel, feature platforms slightly larger than stretchers to support and secure both plate-type and shovel-type stretchers.
They protect vehicle floors from friction during frequent loading/unloading, are essential in most ambulances, with YHR-D1 unfolding to 215×65×40cm (carton 247×65×13cm) and YHR-D2 to 208×61×22cm (carton 229×68×25cm); both load ≤220Kg, net 35Kg, gross 40Kg.

The stretcher compartment consists of a platform slightly larger in area than the stretcher, which provides support and fixation for the stretcher.
Since stretchers need to be loaded and unloaded frequently, the stretcher platform can also protect the interior floor of the vehicle, preventing damage caused by long-term friction between the wheels of the stretcher and the floor, which may affect the normal use of the ambulance and the stretcher.
The stretcher platform plays an important role in the use of on-board stretchers, so it must be equipped in most ambulances and is an important auxiliary facility of the stretcher system.
Made entirely of stainless steel, it can hold both plate-type and shovel-type stretchers.

MODEL	MATERIAL	UNFOLDED SIZE (LENGTH × WIDTH × HEIGHT)	CARTON PACKAGING SIZE (LENGTH × WIDTH × HEIGHT)	LOAD CAPACITY	NET WEIGHT	GROSS WEIGHT
YHR-D1	SUS201	215×65×40cm	247×65×13cm	≤220Kg	35Kg	40Kg
YHR-D2	SUS201	208×61×22cm	229×68×25cm	≤220Kg	35Kg	40Kg
