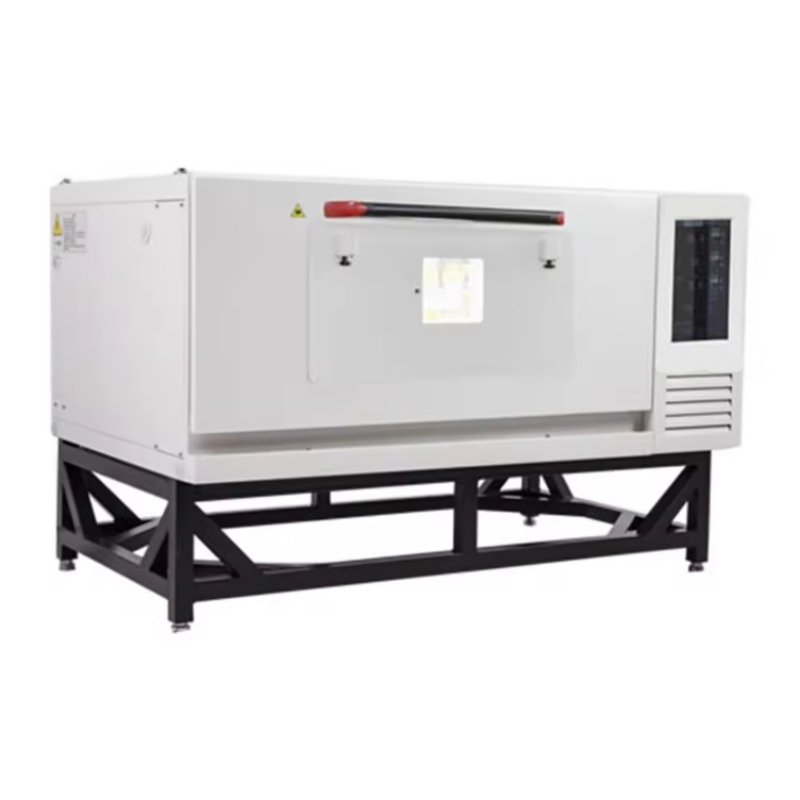

Stackable Illumination Constant Temperature Incubator Shaker LBA LIS-6CL
Technical Specifications
OVERVIEW
It can be equipped with advanced WiFi monitoring system, which can remotely monitor the same machine by multiple mobile phones at the same time, timely obtain power failure information, quickly deal with emergencies, and protect cultured cells.
FEATURES
1. Advanced self-adaptive full-automatic PID control According to the difference of each machine, self-learning and setting of relevant parameters to ensure that temperature and speed achieve high-precision and high-stability control.
2. Strong cooling capacity Can be cooled to 18 °C below ambient temperature.

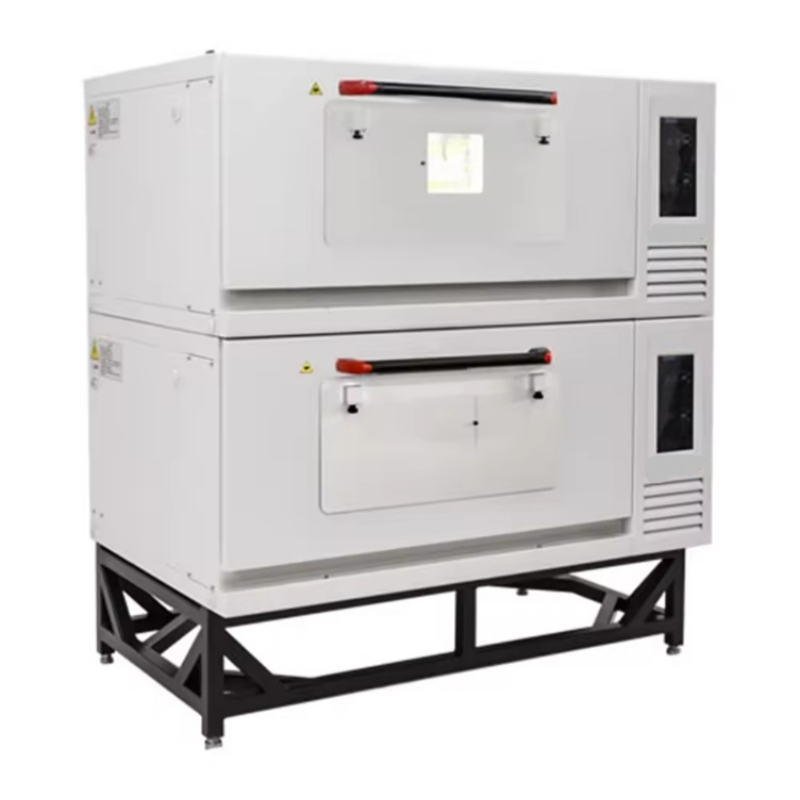

3. Can be arbitrarily superimposed and combined.
4. Two-way UV sterilization the cavity is equipped with two sets of UV sterilization components to enhance the sterilization effect and reduce the dead angle of sterilization.
5. DC brush less motor drive Low noise, high efficiency, maintenance-free, long life, minimal heat, and does not affect the temperature in the cavity.
6. Multiple sound and light alarm and protection functions Over temperature alarm, over speed alarm, sensor failure alarm, timing alarm, door open alarm, over concentration alarm, over humidity alarm, leakage protection, no air intake alarm (CO2 function machine).
8. 12-segment full-automatic program control function You can set 12 different speeds, temperatures and times, and then run according to these 12-segment programs.
9. Automatic recovery of incoming calls When a power outage is encountered during operation, the call will resume automatically according to the original procedure.
10. Powerful data storage function It can store data for more than 2 years of continuous operation. Record one data per minute.
11. Real-time data query function the operation data of the last 7 days can be queried on the display. Record one data per minute.
12. U disk export data function With USB interface, it is convenient for U disk to export operation data records for more than 2 years.
Parameter | Specification | Specification | Parameter |
|---|---|---|---|
Model | LIS-6CL | Name | 381L, White Light Touch Screen, with CO₂ |
Rocking Plate size | 900×560 mm | Max capacity | Flask clamp: 50ml×135 / 100ml×60 / 150ml×60 / 200ml×60 / 250ml×60 / 500ml×38 / 1000ml×24 / 2000ml×15 / 3000ml(Thomson)×12 / 5000ml(Thomson)×6 paste pads: 50ml×187 / 100ml×112 / 150ml×104 / 200ml×84 / 250ml×77 / 500ml×40 / 1000ml×28 / 2000ml×15 / 5000ml(Thomson)×8 |
Volume | 381 L | Maximum load | 20 kg |
Temp control range | Room temperature below 10°C~60°C (minimum 4°C, @20000LUX) | Temp control accuracy | ±0.1°C |
Temp uniformity | ±0.8 °C (@37 °C) | Rotation speed | 0 (stop), 30-300 rpm |
Amplitude | 26 mm | CO₂ sensor | IR (infrared) |
CO₂ concentration control range | 0-20% | CO₂ concentration control accuracy | ±0.1% |
Temperature recovery time after opening the door for 30s | ≤6 min (@37°C) | CO₂ concentration recovery time after 30s of door opening and restart | ≤6 min (@5%) |
Programmable segment | 12 segments | Illumination intensity | 0~20000 Lux (10cm position on the rocking plate) |
Light color & color temp | White light 6000K to 6500K | Light wavelength | 440~450 nm |
