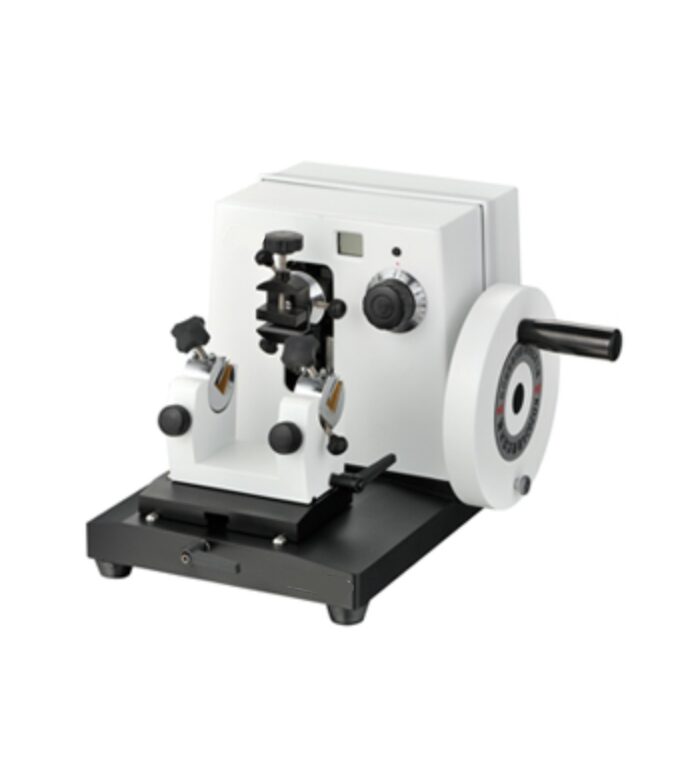

Semi-automatic Microtome KD 202A
Dual modes (0–25μm/1–40μm optional), 0–500μm trimming, 1μm resolution, ±10% error.
50×60mm samples, 30mm horizontal/55mm vertical shift. Knife holder: 50mm base/20mm lateral move. LCD count + safety alarm.
340×335×270mm (19kg), sealed enclosure for quick cleaning.
PARAMETER NAME | PARAMETER VALUE |
|---|---|
Slicing Range | 0-25μm continuous slicing; >25μm adjustable slicing thickness; 1-40μm continuous slicing; >40μm adjustable slicing thickness (optional) |
Trimming Range | 0-500μm |
Minimum Division Value for Slicing Adjustment | 1μm |
Maximum Sample Size | 50×60 (mm) |
Sample Horizontal Displacement | 30mm |
Sample Vertical Displacement | 55mm |
Sample Vertical Displacement | 55mm |
Maximum Movement of Knife Holder Base | 50mm |
Maximum Lateral Movement of Knife Holder | 20mm |
Slicing Error | ±10% |
Sealed Enclosure for Easy Cleaning | (Note: This row in the original table has no separate value on the right; related to the features below) |
LCD Display for Slicing Count, Safety Alarm System | Knife holder movable forward/backward and laterally for easy trimming and slicing |
Overall Dimensions | 340×335×270 (mm) |
Overall Weight | 19kg |
