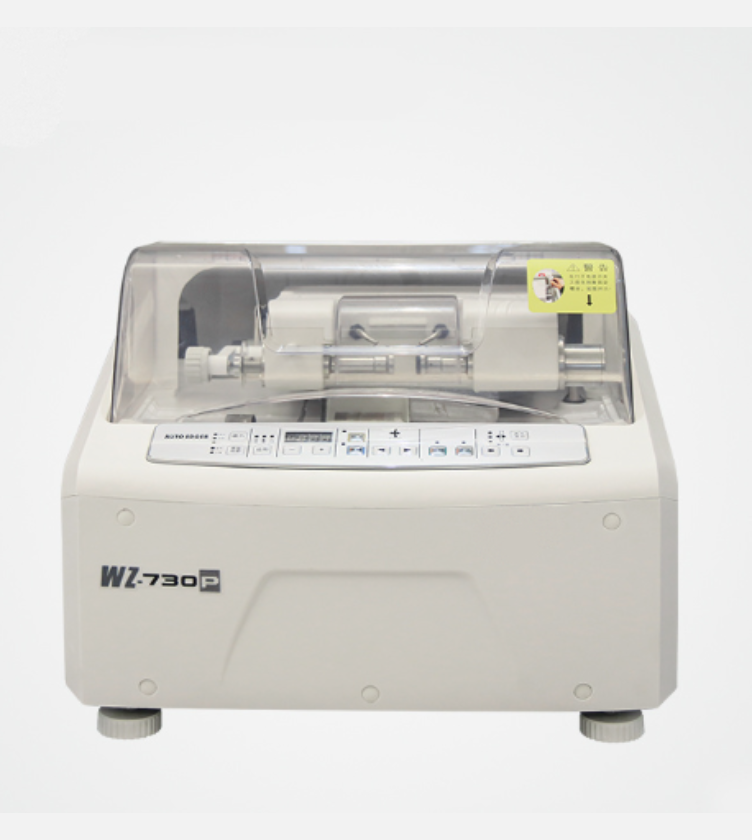

Semi-automatic Edge Frinding Machine WZ 730P

Features: High – automation, precision, ease of use, safety. Uses diamond, fine grinding, and polishing wheels for efficient, quality lens edge finishing.
Specs: Covers clamp force (0.5–0.75 MPa), compatible lens materials, size (550x470x410mm), voltage, grinding diameter (22–80mm), weight (48kg), and other key parameters.

Categories: Lens Edger, Ophthalmic Equipment Tags: Auto Lens Edger Machine, Machine for Edging PC/ GL/CR Lenses, New Arrival Optical Instrument

Description
Reviews (0)

Description

Equipment Function

Uses a high – precision grinding system and intelligent control. Processes lens edges (cutting, grinding, chamfering) by frame shape, lens diopter. Fits lenses to frames, ensures accurate optical center, smooth edges. Improves wearing comfort and aesthetics.

Equipment Features

High automation, precision, easy operation, safe & reliable. Boosts lens processing efficiency/quality.
Uses diamond grinding wheel (fast cutting), fine grinding wheel (shaping), polishing wheel (edge polishing). Makes edges smooth and transparent.

Technical Parameters

Parameter	Details
Grinding disc clamp force	0.5–0.75 MPa
Lens material	CR, PC, GL, HI
Size	550x470x410mm
Voltage	AC 220V, 50Hz or 110V, 60Hz
Grinding Diameter	22–80mm
Weight	48kg
Electric power consumption	≤500AV
Wheel diameter	*Φ100Φ17mm**
Temperature	5°C–40°C
Power	380w
Grinding wheel group capacity	60–100mm
Edge type	Sharp edge (framed), flat edge (rimless), sharp edge for high – index
Noise	≤65db + 125%
