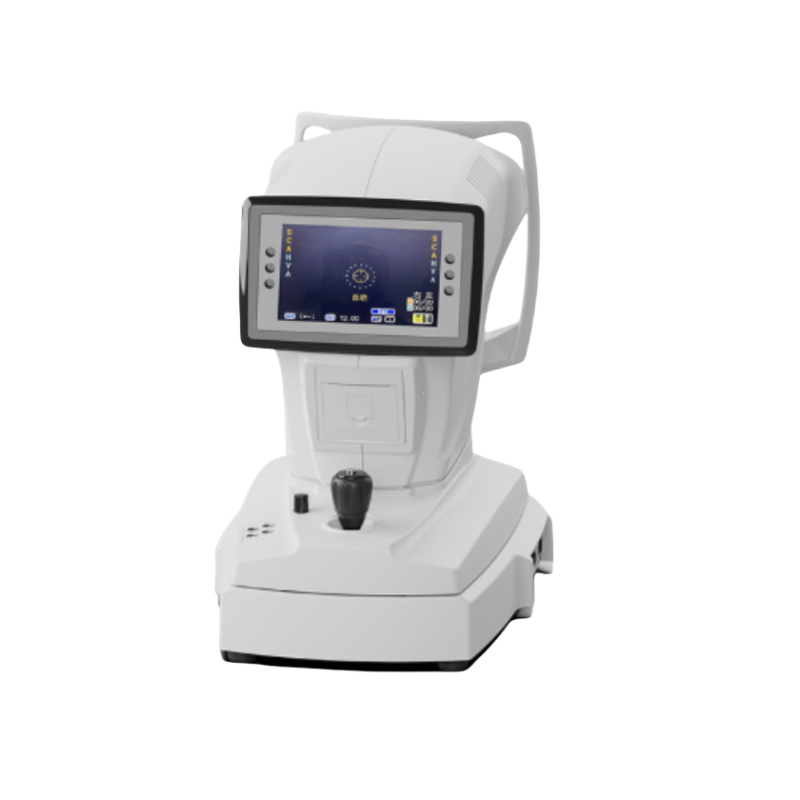

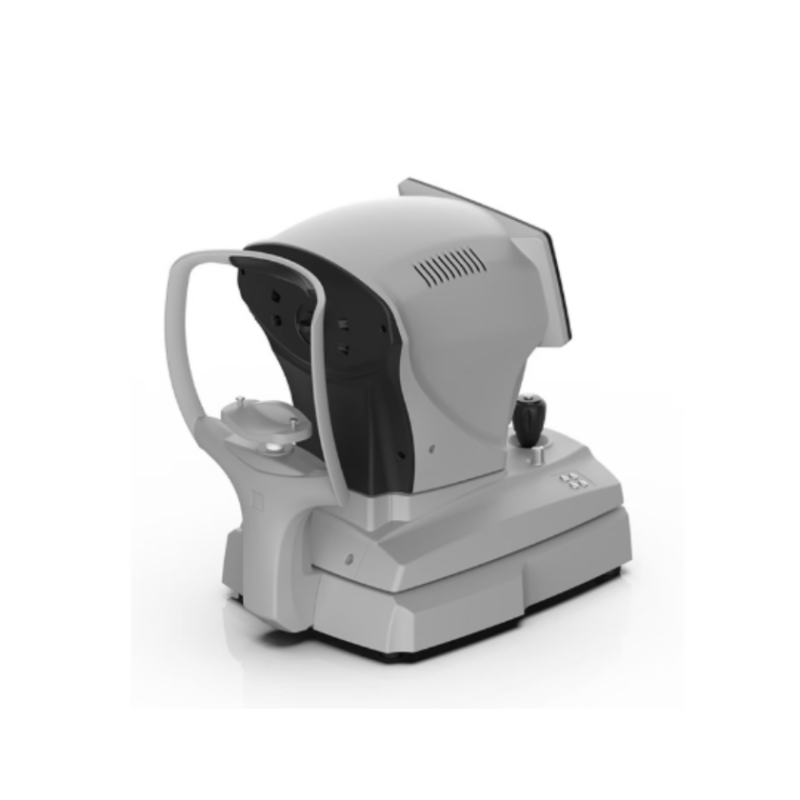

Semi-automatic computer refractor WZ 988KR
Description
Technical Specifications
Core Nature
- A computerized optometry device is an electronic objective instrument integrating refractive examination and computer technology.
Measurement Capability
- It quickly & accurately measures eye refractive power, providing key data for ophthalmic diagnosis and spectacle fitting.
Objectivity & Standards
- Without subjective input from clinicians/examinees, it evaluates refractive parameters objectively per preset criteria.
Application Scope
- Used in ophthalmic hospitals, optometry centers, optical shops, it supports vision screening, preliminary diagnosis of refractive errors (myopia, hyperopia, astigmatism), and determines accurate lens power for fitting.
Category | Details |
|---|---|
Power Supply Voltage | ~220V;50Hz |
Power | 60VA |
Printer | Thermal printer |
Data Interface | RS232C |
Wavelength | 850nm |
Fuse | 2XF1.5AL250V |
Display Screen | 5.7-inch TFT true-color liquid-crystal display |
K&RF Mode | Measure refractive power and corneal curvature |
REF Mode | Measure refractive power |
KRT Mode | Measure corneal curvature |
CLBC Mode | Measure the base curve of contact lenses |
Curvature Radius Measurement Range | 6.5~9.5mm |
Corneal Refractive Power Measurement | 35.00D~52.00D |
Vertex Distance | 0mm,12mm,13.75mm,15mm |
Sphere Power Measurement Range | -20.00D~+20.00D |
Axis Angle Measurement Range | 0°~180° |
Up-Down Working Range | Not less than 25mm(electric up-and-down movement);Not less than 45mm(electric up-and-down movement) |
Outer Box Dimensions | 635mm×415mm×625mm |
Weight | 23.5kg |
| Technical Parameters | Details |
|---|---|
| Power Supply Voltage | ~220V; 50Hz |
| Power | 60VA |
| Printer | Thermal printer |
| Data Interface | RS232C |
| Wavelength | 850nm |
| Fuse | 2XF1.5AL250V |
| Display Screen | 5.7 – inch TFT true – color liquid – crystal display |
| K&RF Mode | Measure refractive power and corneal curvature |
| REF Mode | Measure refractive power |
| KRT Mode | Measure corneal curvature |
| CLBC Mode | Measure the base curve of contact lenses |
| Curvature Radius Measurement Range | 6.5 – 9.5mm |
| Meridian Axis Angle Measurement Range | 0° – 180° |
| Corneal Refractive Power Measurement | 35.00D – 52.00D |
| Corneal Diameter Measurement Range | 2.0 – 12.0mm |
| Vertex Distance (VD) | 0mm, 12mm, 13.75mm, 15mm |
| Sphere Power Measurement Range | -20.00D – +20.00D |
| Cylinder Power Measurement Range | 0D – 6D |
| Axis Angle Measurement Range | 0° – 180° |
| Pupillary Distance Measurement Range | 45mm – 85mm |
| Minimum Measurable Pupil Diameter | f 2.0mm |
| Front – Back Movement Range | Front – back: not less than 44mm |
| Left – Right Movement Range | Left – right: not less than 86mm |
| Up – Down Working Range | Not less than 25mm (electric up – and – down movement); Not less than 45mm (electric up – and – down movement) |
| Outer Box Dimensions | 635mm×415mm×625mm |
| Weight | 23.5kg |
