Self-propelled Intelligent Air-assisted Sprayer BJ
Description
Technical Specifications

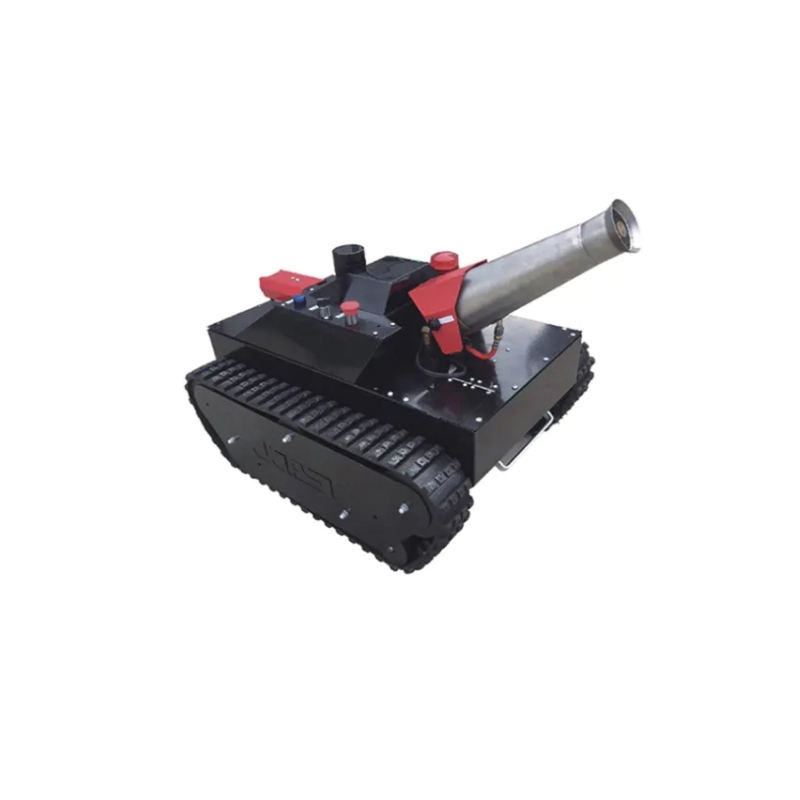

- The I-MOV511 Self-propelled Intelligent Air-assisted Sprayer, which was developed for unmanned disinfection for the epidemic, is mainly applied to high-risk infection areas, hospitals, communities, public plazas, airports, and other outdoor spaces to proceed with the auto-spraying disinfectant. It can be also used for auto pesticide spraying in farms and orchards.
- It adopts the full sources navigation solution combined with satellite navigation, inertial navigation, lidar, and camera, which realize continuous indoor and outdoor positioning and navigation. It has high performance in various aspects such as topography adaptability, working efficiency, battery life, obstacle detection, and route plan.
- The operator could get live interaction such as making the setting and getting the working area map through a mobile or tablet app. The remote interaction could be realized through a 4G network, to finish task assignments, work procedure uploading, and real-time surveillance. The drive speed could reach 1m/s, and the working efficiency is 15000 m²/h.
Category | Details |
|---|---|
Car body size | 850×680×500mm |
Weight | 45kg |
Working width | 8m |
Max. Driving speed | 1m/s |
Battery package | 24V80ah lithium battery |
Working efficiency | 15000m²/h |
Dosing box capacity | 48L |
Caterpillar band width | 100mm |
Max. Climbing angle | 45° |
Disinfectant spray pump | 24V 200W 1.0 – 3.0Mpa |
Fan | 12V 60W |
Driving motor | DC brushless planetary reduction motor; Maximum power: 400W |
