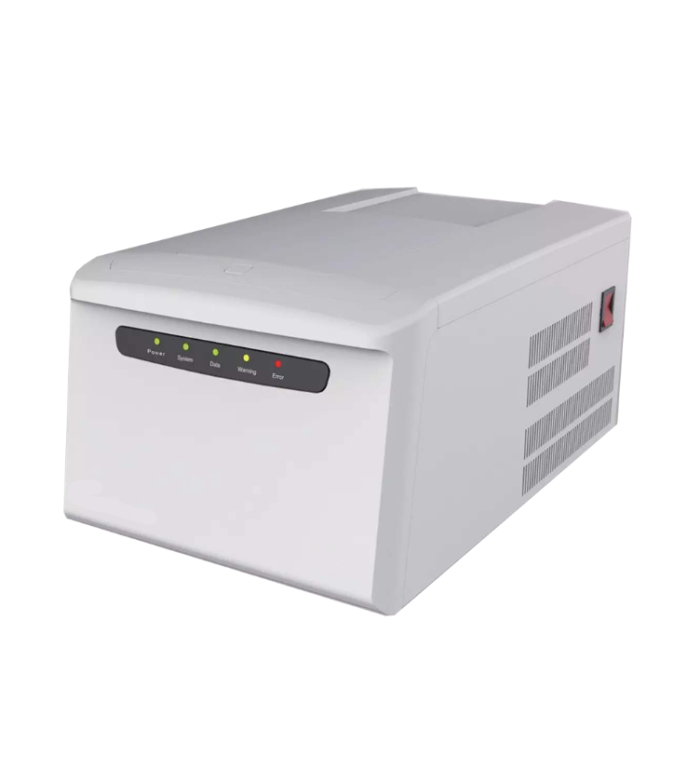

Real-Time Fluorescent Quantitative PCR Analyzer YR MA-6000

96×0.2ml capacity (8-tube strips/single tubes). 6-zone temp control (±0.1℃ accuracy) with thermal compensation, 5-6 customizable fluorescence channels.
Halogen tungsten excitation, isometric fiber conduction. Cooled CCD (0.15s/color), high-res melting curve, ≥1 copy sensitivity (CV≤1%).
USB/PC connectivity, LIMS/LIS support. Auto result analysis, PDF/Excel output. CE/ISO certified, CFDA registered.

FEATURES

96*0.2ml, compatible with 8-tube strip and single tube
6-zone independent temp. control to set different reaction conditions
5-color fluorescence channels and support the custom 6th one
Thermal compensation tech without edge effects, gradient function in wide temp. range
Maintenance-free long-life continuous-spectrum excitation light source
Isometric optical fiber conduction tech in excitation and detection
Simultaneous fast acquisition of 0.15s per color by cooled CCD
High-resolution melting curve, 1.5 times high sensitivity distinction of relative quantitative
Support multiple connections to one computer and LIMS/LIS system

Performance Parameters

Basic	Sample Capacity	96×0.2ml
	Applicable Consumables	0.2ml single tube, 8×0.2ml tube strip, 96-well plate
	PCR Volume Range	10-120μL
	Working Temperature	15-30℃
	Storage Temperature	-20-55℃
	Ambient Relative Humidity	≤85%
	Dimensions and Weight	600390320mm (WDH), 23kg
	Power Supply	100-240V, 50Hz, 1500VA
Temp. Control System	Heating/cooling Method	Peltier, independent and intelligent temp. control over 6 zones
	Temperature Range	4℃-100℃
	Temperature Accuracy	±0.1℃
	Temperature Uniformity	±0.2℃
	Temperature Control Technology	6-zone independent temp. control combined with thermal compensation tech to reduce edge effect
	Gradient Temp. Function	Yes
	Gradient Temp. Columns	12
	Gradient Temp. Range	1℃-32℃
	Gradient Temp. Zones	6
	Gradient Temp. Set Range	30℃-100℃ (Room temperature is lower than 28℃)
Detection System	Excitation Source	Halogen Tungsten Lamp
	Detection Device	-20℃ Cooled CCD
	Light Propagation Medium	Dual-96 High Temperature resistant optical fibers for Space
	Detection Channels	5 (Expandable to 6)
	Excitation Range	1st Channel: 470nm±10nm 2nd Channel: 525nm±10nm 3rd Channel: 570nm±10nm 4th Channel: 620nm±10nm 5th Channel: 670nm±10nm 6th Channel: Customizable
	Detection Range	1st Channel: 512nm-528nm 2nd Channel: 562nm-578nm 3rd Channel: 612nm-628nm 4th Channel: 662nm-678nm 5th Channel: 702nm-718nm 6th Channel: Customizable
	Dye Compatibility (name)	FAM/SYBR Green/Eva Green/LC Green/Fluorescein; VIC/HEX/TET/Cy3/JOE/Alexa555; ROX/Cy3.5/Texas Red; Cy5/LC Red640; Cy5.5/LC Red705; Tamara
	Detection Sensitivity	≥1 copy
	Confidence Coefficient	99.90%
	Sensitivity	Allowed 1.5-fold in single reaction
	Sample Detection Repeatability	CV≤1%
	Linear Range	1-10¹⁰
	Sample Linearity	≥0.99
Software	Software Language	Chinese/English
	Control Method	USB connection to PC, multiple connections, support LIMS/LIS system
	Software Function	Real-time monitoring, automatic identification and calculation of positive and negative results, automatic establishment of standard curve, absolute/relative quantification, multiple quantification, melting curve, gene mutation, Endpoint genotyping (TaqMan probe method), Tm value determination, quality control graphic analysis, PCR amplification efficiency, etc.
	Output	EXCEL/WORD/PDF
	Medical Device Registration	CFDA No. 20172221410
	Safety Compliances	CE/ISO9001/ISO13485

Click to enlarge

Categories: In-Vitro Diagnostics, PCR Analyzer Tags: Gradient Thermocycler PCR, Medical Lab PCR Analyzer, PCR Testing Machine

Description
Reviews (0)

Description

Basic	Sample Capacity	96×0.2ml
	Applicable Consumables	0.2ml single tube, 8×0.2ml tube strip, 96-well plate
	PCR Volume Range	10-120μL
	Working Temperature	15-30℃
	Storage Temperature	-20-55℃
	Ambient Relative Humidity	≤85%
	Dimensions and Weight	600390320mm (WDH), 23kg
	Power Supply	100-240V, 50Hz, 1500VA
Temp. Control System	Heating/cooling Method	Peltier, independent and intelligent temp. control over 6 zones
	Temperature Range	4℃-100℃
	Temperature Accuracy	±0.1℃
	Temperature Uniformity	±0.2℃
	Temperature Control Technology	6-zone independent temp. control combined with thermal compensation tech to reduce edge effect
	Gradient Temp. Function	Yes
	Gradient Temp. Columns	12
	Gradient Temp. Range	1℃-32℃
	Gradient Temp. Zones	6
	Gradient Temp. Set Range	30℃-100℃ (Room temperature is lower than 28℃)
Detection System	Excitation Source	Halogen Tungsten Lamp
	Detection Device	-20℃ Cooled CCD
	Light Propagation Medium	Dual-96 High Temperature resistant optical fibers for Space
	Detection Channels	5 (Expandable to 6)
	Excitation Range	1st Channel: 470nm±10nm 2nd Channel: 525nm±10nm 3rd Channel: 570nm±10nm 4th Channel: 620nm±10nm 5th Channel: 670nm±10nm 6th Channel: Customizable
	Detection Range	1st Channel: 512nm-528nm 2nd Channel: 562nm-578nm 3rd Channel: 612nm-628nm 4th Channel: 662nm-678nm 5th Channel: 702nm-718nm 6th Channel: Customizable
	Dye Compatibility (name)	FAM/SYBR Green/Eva Green/LC Green/Fluorescein; VIC/HEX/TET/Cy3/JOE/Alexa555; ROX/Cy3.5/Texas Red; Cy5/LC Red640; Cy5.5/LC Red705; Tamara
	Detection Sensitivity	≥1 copy
	Confidence Coefficient	99.90%
	Sensitivity	Allowed 1.5-fold in single reaction
	Sample Detection Repeatability	CV≤1%
	Linear Range	1-10¹⁰
	Sample Linearity	≥0.99
Software	Software Language	Chinese/English
	Control Method	USB connection to PC, multiple connections, support LIMS/LIS system
	Software Function	Real-time monitoring, automatic identification and calculation of positive and negative results, automatic establishment of standard curve, absolute/relative quantification, multiple quantification, melting curve, gene mutation, Endpoint genotyping (TaqMan probe method), Tm value determination, quality control graphic analysis, PCR amplification efficiency, etc.
	Output	EXCEL/WORD/PDF
	Medical Device Registration	CFDA No. 20172221410
	Safety Compliances	CE/ISO9001/ISO13485
