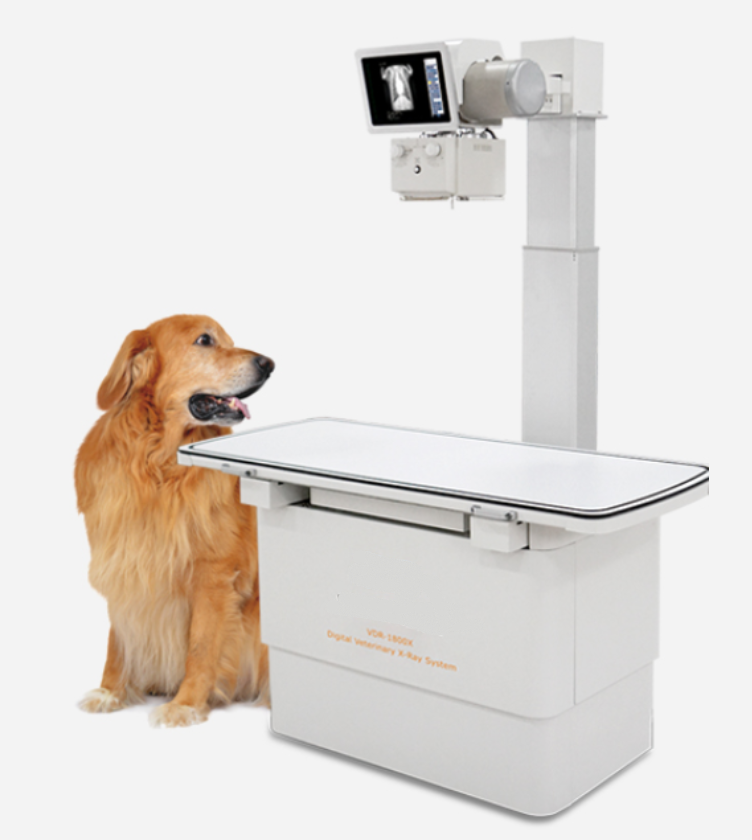

Professional DR Imaging System HY VDR-1800X

VDR-1800X

• 17″×17″ Amorphous Silicon Cesium Iodide Flat Panel Detector

• Medical High-Definition Head Display

• Ultra-High Frequency High-Voltage Generator

• Electric Lifting, Four-Directional Floating Bed Surface

• Supports Advanced Measurement Tools

Overall Machine Features

① The whole machine has the industry-unique power optimization technology. When the fluctuation range of the mains power is within ±30%, the machine can work stably. It has low requirements for power supply conditions and low-capacity power distribution. It can expose normally when the single-phase mains power is within 2.2KW.

② It can achieve ultra-short-time exposure. The KV rise time is <500US, and the shortest exposure time is 1MS, which can reduce the artifacts caused by animal movement and avoid misdiagnosis and missed diagnosis.

③ The whole machine has a wider application range and can photograph various animals. The KV range is 40 – 125, and the MA range is 10 – 400, with sufficient penetration and exposure.

④ The machine has a lightning protection design. The high-voltage EMC adopts five-level processing. There is electromagnetic compatibility protection for the 220V input, rectifier bridge input, output, inverter part, etc. The machine has strong anti-interference ability and little interference to the external power supply; it can be applied to a variety of complex environments.

⑤ The whole machine has the unique energy storage capacitor charging and discharging technology, and the capacitor charging and discharging time is as short as 20S; it can quickly enter the exposure state, facilitating engineers’ maintenance.
⑥ Electric lifting, variable SID (focus-film distance), meeting the shooting needs of different scenarios.
