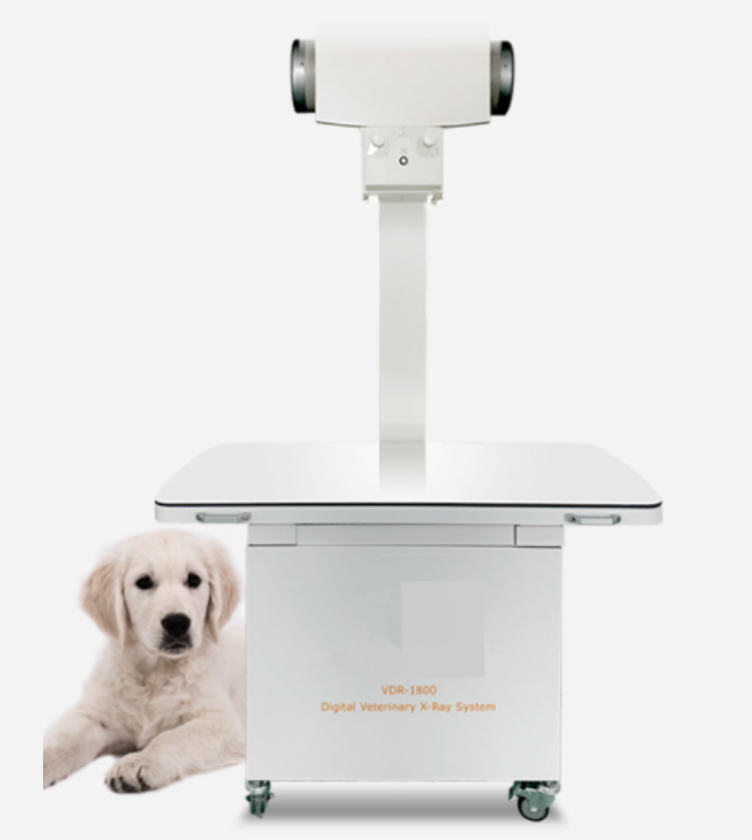

Professional DR Imaging System HY VDR-1800
-
Ultra – light (< 4.0kg), 17″×17″ size, F2AEDTM tech, fits X – ray systems, upgrades CR, uses advanced tech for high – quality low – dose images.
-
A cost – effective veterinary diagnostic DR with excellent imaging, advanced measurement tools support, low – dose mode, and an amorphous silicon cesium iodide flat panel detector.
Description
VDR-1800
17″×17″ Fixed Flat Panel Detector
17″×17″ cassette size, ultra – light design (< 4.0kg), full – field automatic exposure sensing (F2AEDTM) technology, 1800L is suitable for various applications, such as integrating with X – ray radiography systems that need to use detectors in different positions, or upgrading and transforming existing CR film systems.
Adopting advanced technologies (high – performance cesium iodide direct growth technology, optimized electronic digital signal processing technology) to achieve high detective quantum efficiency, high spatial resolution, ultra – high dynamic range, and ultra – low noise level of the product, ensuring high – quality images at low doses, and showing care for pets and veterinarians.
| Parameter Category | Specific Parameters |
|---|---|
| Input Power Supply | 100VAC – 300VAC, 50/60Hz |
| Input Current | 10A |
| Inverter Frequency | 400KHz |
| Maximum Output Power | 32Kw |
| Rise Time | < 500us |
| Kv Ripple | < 1% |
| Charge – Discharge Time | < 20s |
| Dimensions | 600 x 400 x 400mm |
| Weight | 80Kg |
| Tube Voltage | 40Kv – 125Kv |
| Tube Voltage Accuracy | ± (1% + 1Kv) |
| Tube Voltage Step | 1Kv |
| Tube Current | 10mA – 400mA |
| Tube Current Accuracy | ± (1% + 1mA) |
| Maximum Tube Voltage | 125Kv |
| Minimum Tube Voltage | 40Kv |
| Small Focus | 0.6 |
| Maximum Tube Current | 550mA (Large Focus); 200mA (Small Focus) |
| Large Focus | 1.2 |
| Anode Heat Capacity | 150KHU (900KJ) |
| Anode Rotational Speed | 50Hz —— 2700/min; 60Hz —— 3200/min |
