Power stair stretcher HR YHR-LD01E

  • CE/ISO/FDA – approved stair chair, aluminum, 24V 130W motor, 1.5 – 2h battery. Folds compact, 4″ front/6″ rear wheels, 181kg load.

  • Features: Multi – angle track (3 angles), ergonomic handles, 4 – point belt, removable head support. Grease – free, easy to clean/store.

  • Specs: 45×42cm seat, 50cm height, telescopic rods (110 – 157cm), 29kg N.W., 43kg G.W. Suits home/medical, dual – tread traction.

Description

Overview

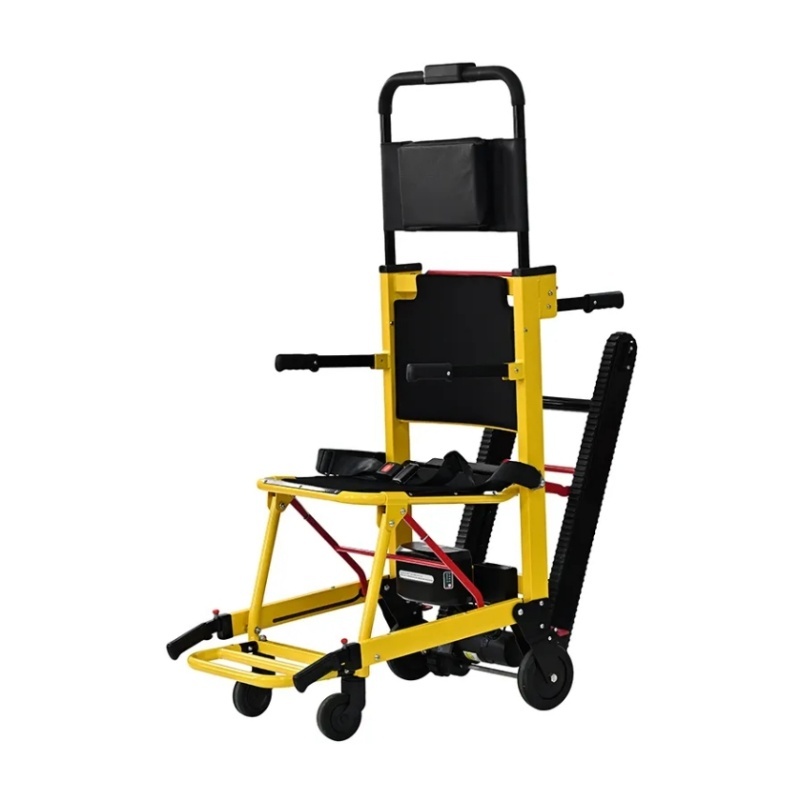

The Stair chair meets CE and ISO standard and is powered by a lithium-ion battery and driven by motor it can transport mobility impaired persons up and down stairs easily.

Features

1. Can be used at home and in medical facilities

2. Light-weight, aluminum construction powder-coated frame

3. Ergonomic lifting handles with molded hand grips to reduce stress and provide extra control for caregiver

4. Locking guide handles extend for secure lifting if necessary

5. Telescoping lift handles easily adjust to caregivers specific needs

6. Dual, extra traction treads withstand high volume use, high durability tracks for non-slip traction on any surface with adjustable track

7. 4 inch swiveling front castors increase range of motion and sharper turn radius for use in confined spaces

8. The track system can be adjusted at three angles, making it suitable for a variety of staircases and a wide range of applications.

9. Dual locking rear wheels with sealed bearings stabilize patient loading and unloading

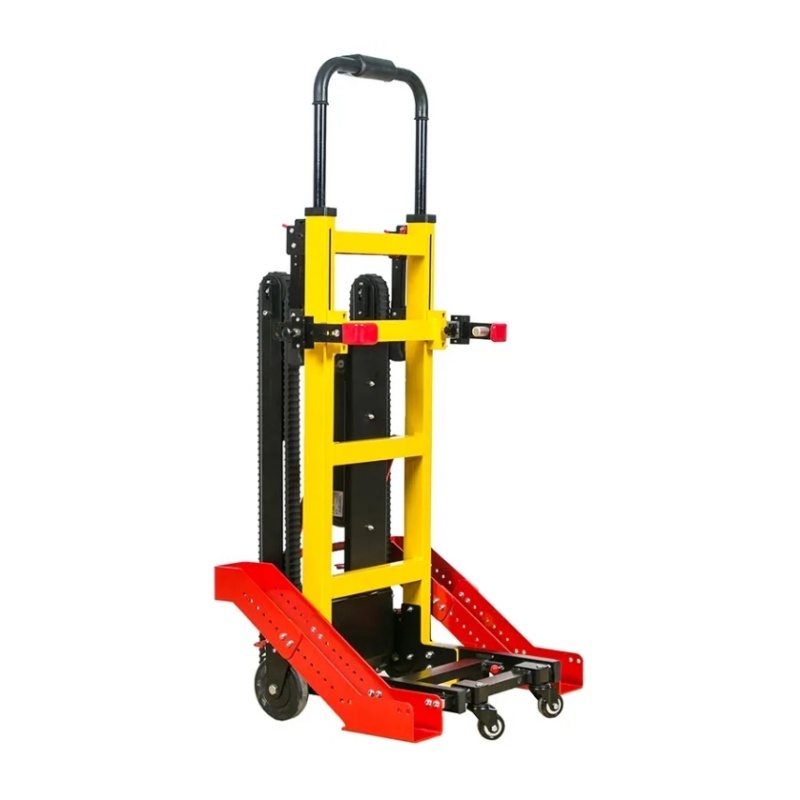

10. Easy-to-fold, compact for convenient storage for small spaces.

11. Retractable solid foot rest ensures safe transport and added comfort

12. 4-point patient safety belt

13. Head support and headrest is easily removed for storage

14. Easy to clean, grease-free maintenance

15. CE and ISO Certificate,FDA approved

Specifications

Technical data
Model YHR-LD01E
Usage Move a patient or loved one up and down a flight of stairs
Material Durable aluminum alloy
Color Yellow
Seat Aluminum board&Spongy Cushion
Size of seat 45×42cm
height of seat 50cm
Height of telescopic tie rod H110cm, H127cm, H144cm, H157cm
Front handle expansion length 60cm, 81cm
Back folding handle length 26cm
Castors Front Dia.4″ Back Dia.6″
Motor 24V 130W brush motor/constant speed
Battery 24V 13Ah Lithium-Ion Battery
Working time Fully charged can work 1.5-2hours
Charger 29.4V 2A
Dimension 106×51×110
Folded 110×51×26cm
N.W. 29kg
Load bearing Max.181kg (400 LBS)
Packing 116×58×28cm; 1set/Plywood case
G.W. 43kg
