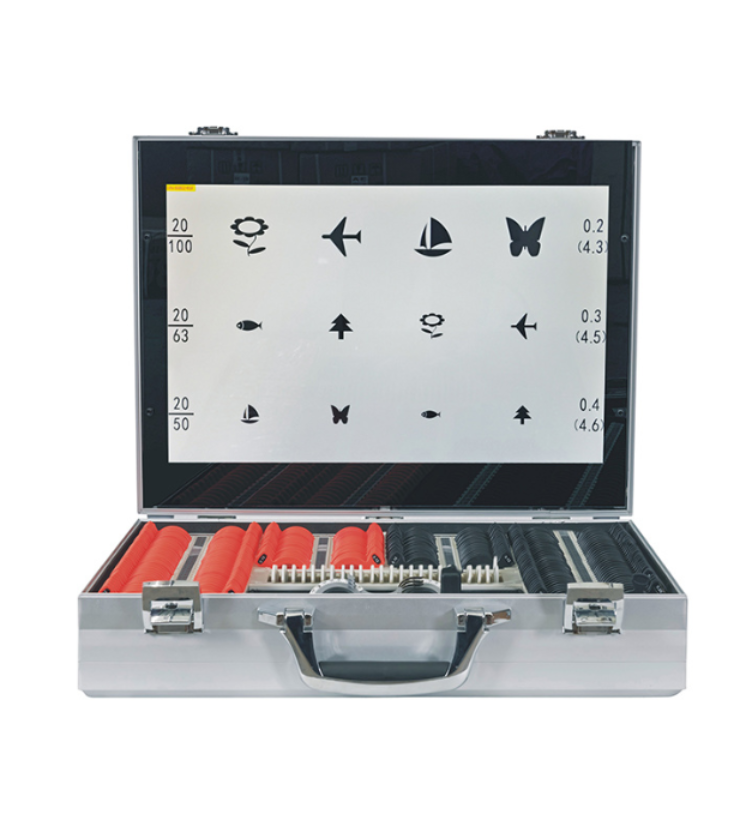

Portable trial lens set WZ vc-12

Adopts advanced LCD tech for precise vision measurement. Clear, standardized targets support ophthalmic diagnosis, correction & screening. Suited for eye hospitals, optometry centers, schools, etc. 1 – year warranty.
High – res LCD screen ensures sharp, high – contrast targets, reducing errors for accurate results. Supports 1M – 6M distance, decimal/imperial recording, with diverse test charts (E – charts, color – blindness tests, etc.).
Features 16:9 ratio, 19″ screen, H:170/M:160 angle. Flexible masking, 8m+ remote. Weighs 9.6kg (590x465x230mm). Fits various settings.

This liquid crystal visual acuity chart is a vision testing device adopting advanced liquid crystal display technology, designed for precise measurement of human visual acuity.
With clear and standardized display of visual targets, it provides reliable evidence for ophthalmic diagnosis, vision correction, physical examination screening, etc. It is suitable for various places such as ophthalmic hospitals, optometry centers, schools, and physical examination institutions.

TECHNICAL PARAMETERS (FEATURES)	Details
Power (Input Power Parameter)	AC100 – 240V/50Hz/60Hz
Standard Power	80VA
Dot Pitch (Distance)	0.284mm
Screen Ratio	16:9
Screen Size	19″
Visual Angle	H:170/M:160
Color	16.7M
Maximum Brightness	300cd/m
Working Distance	Adjustable from 1M to 6M
Record Method (Adjustable Vision Recording Method)	Decimal, imperial fraction recording method
Distance Of Control (Remote Control Distance)	Maximum remote distance not less than 8m
Screen Masking	Horizontal direction / Vertical direction / Single character
Test Graph (Standard Test Pattern)	Letter vision chart / Children’s vision chart / Red – green color blindness test chart E – chart / C – chart / WCTH four – point target / Digital vision chart Cross target / Contrast sensitivity test chart / Red – green target / Honeycomb target Maddox rod target / Astigmatic disc target, etc.
Weight (Overall Weight)	9.6kg
Dimensions	590(L)x465(W)x230(H)mm
