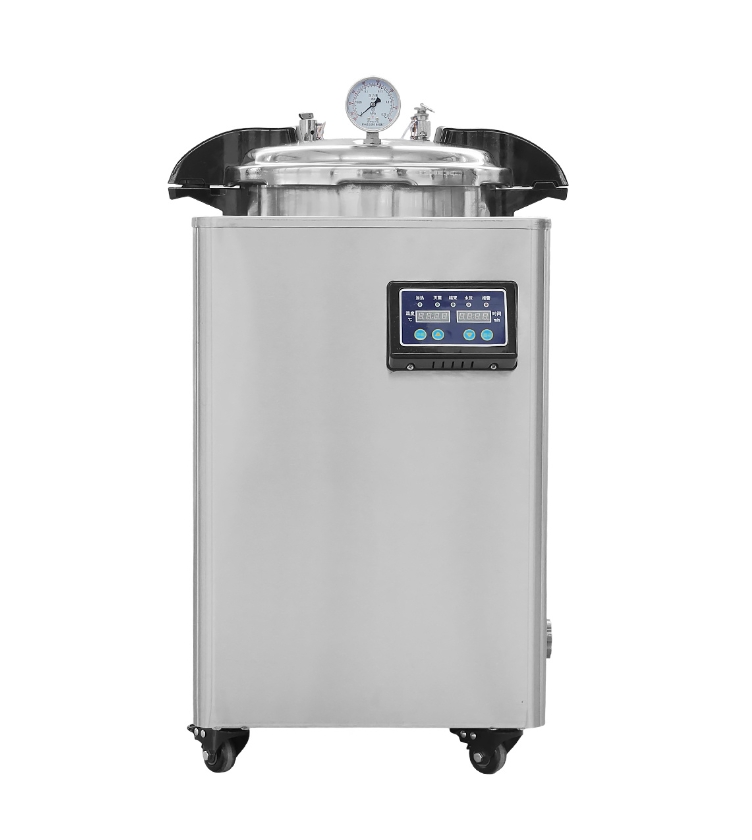

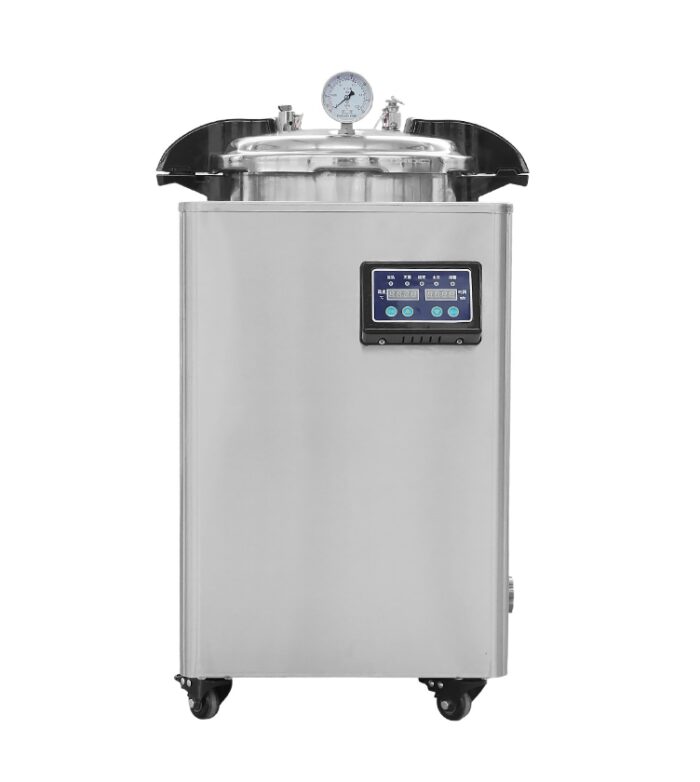

Portable Pressure Steam Sterilizer DGS-29KF

Sterilizer specs: Max working pressure 0.142MPa, rated temp 126℃ (adjustable 115-126℃). Operates in 5-40℃, ≤85% humidity, 70-106kPa pressure, with (220±22)V 50Hz power.
Models DGS-18K/24K/29K: Volumes 18±3L, 24±3L, 29+35L. K type (fast-opening automatic) with adjustable temp (0-130℃) and time (0-99min).
Functional types differ: A (fixed temp/time), B (self-controlled adjustable), C (coal-electric dual-use fixed), K (quick-rotating seal, adjustable). All rated 0.142MPa, 126℃, 2.0kW input.

Maximum working pressure of sterilizer: 0.142MPa
Rated operating temperature of sterilizer: 126 ℃ (can be set within the range of 115 ℃ to 126 ℃)
Environmental temperature range:+5 ℃~+40 ℃
Relative humidity range: not greater than 85%
Atmospheric pressure range: 70kPa~106kPa
Use AC power supply: (220 ± 22) V, frequency: (50 ± 1) Hz
The water used in the sterilizer should not affect the sterilization process or damage the sterilizer or sterilized items

MODEL/TECHNICAL DATA	Functional type	Volume range L	Rated working pressure (MPa)	Rated working temperature （°C）	Input power （KW）
DGS-18K	A is a regular type, and the sterilization temperature and time cannot be adjusted; B is a selfcontrolled type, with adjustable sterilization temperature (0-130 'c) and time (0-99min); C is adual-use type for coal and electricity, and the sterilization temperature and time cannot beadjusted. K is a fast opening automatic type, with adjustable sterilization temperature (0-130 °C)and time (0-99min). A. B and C are handles, bolted together for sealing; K is the upper andlower handle, with quick rotation connection and sealing.	18±3	0.142	126	2
DGS-24K	Same	24±3	0.142	126	2
DGS-29K	Same	29±3	0.142	126	2

Description

MODEL/TECHNICAL DATA	Functional type	Volume range L	Rated working pressure (MPa)	Rated working temperature （°C）	Input power （KW）
DGS-18K	A is a regular type, and the sterilization temperature and time cannot be adjusted; B is a selfcontrolled type, with adjustable sterilization temperature (0-130 'c) and time (0-99min); C is adual-use type for coal and electricity, and the sterilization temperature and time cannot beadjusted. K is a fast opening automatic type, with adjustable sterilization temperature (0-130 °C)and time (0-99min). A. B and C are handles, bolted together for sealing; K is the upper andlower handle, with quick rotation connection and sealing.	18±3	0.142	126	2
DGS-24K	Same	24±3	0.142	126	2
DGS-29K	Same	29±3	0.142	126	2
