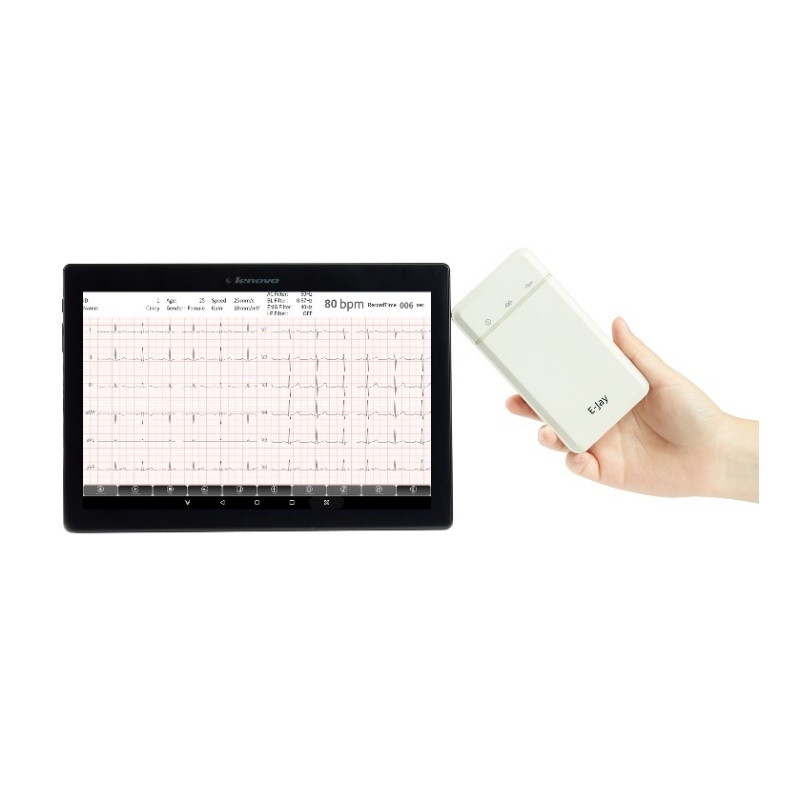

Bluetooth ECG HQXY PE-1204A

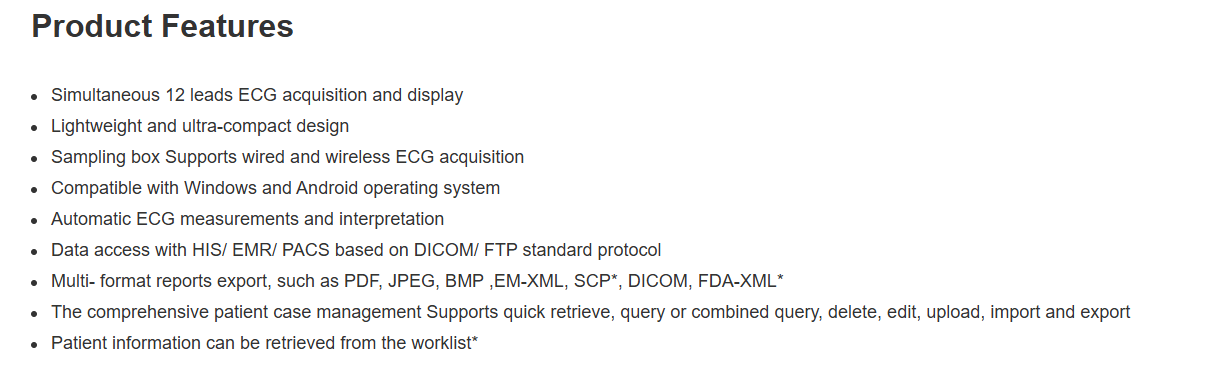

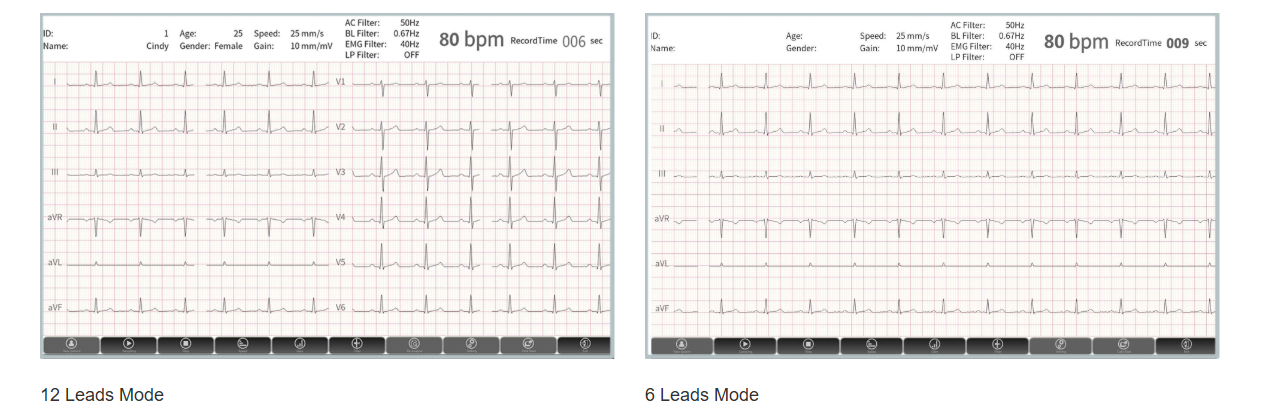

• Simultaneous 12 leads ECG acquisition and display
• Lightweight and ultra-compact design

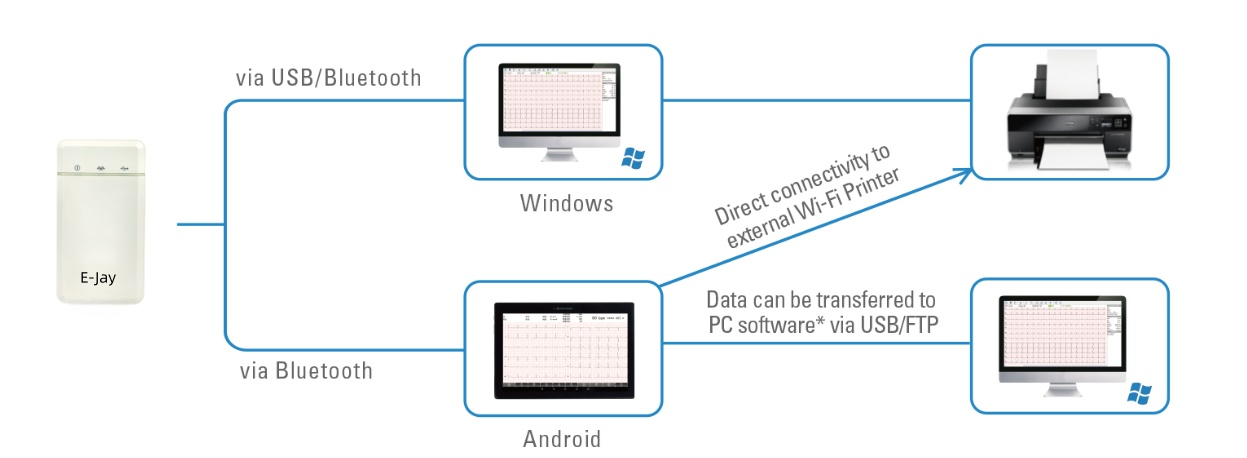

• Sampling box Supports wired and wireless ECG acquisition
• Compatible with Windows and Android operating system
• Automatic ECG measurements and interpretation
• Data access with HIS/EMR/PACS based on DICOM/ FTP standard protocol
• Multi- format reports export, such as PDF, JPEG, BMP, EM-XML, SCP*, DICOM, FDA-XML*.
• The comprehensive patient case management Supports quick retrieve, query or combined query, delete, edit, upload, import and export.
• Patient information can be retrieved from the worklist.

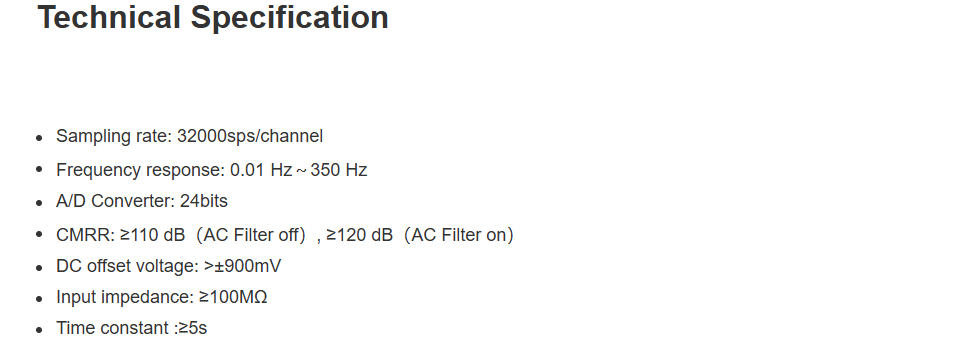

Technical Specification

• Sampling rate: 32000sps/channel
• Frequency response: 0.01 Hz ~ 350 Hz
• A/D Converter: 24bits
• CMRR: ≥110 dB (AC Filter off), ≥120 dB (AC Filter on)
• DC offset voltage: >±900mV
• Input impedance: ≥100MΩ
• Time constant: ≥5s
