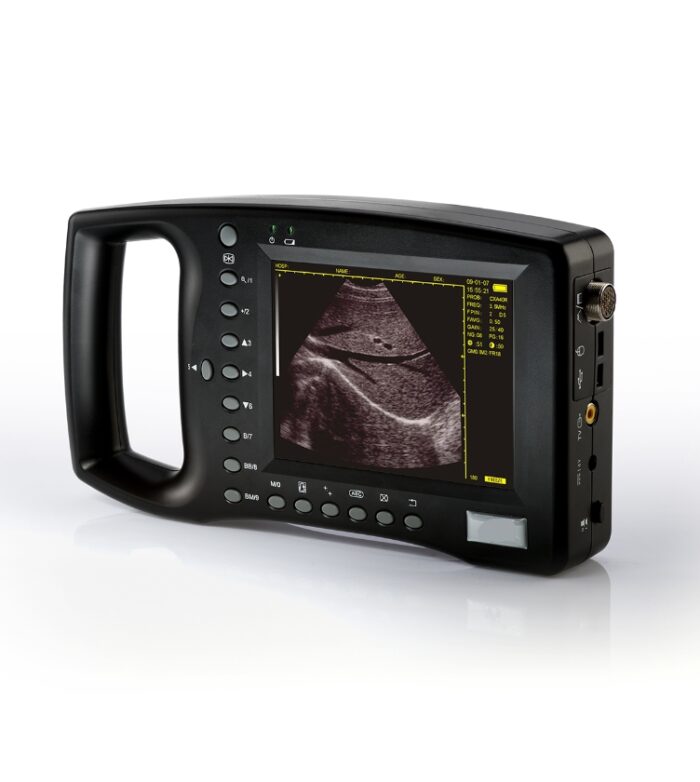

Palmsize digital Ultrasound Diagnostic System WED-3100

Adopts microcomputer control, DSC, DBF and other technologies, supports 4 display modes (B/B+B/B+M/M), 256-level gray scale, with clear and stable images.
Dual power supply of AC adapter + lithium battery (3 charging modes), with undervoltage protection; handle design is suitable for outdoor diagnosis.

WED-3100 adopts multiple technologies such as micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization, real time Dynamic receiving
focusing (DRF), Digital frequency Scan (DFS), frame correlation technologies and so onAll these technologies can endure
its image with clarity, stability and high resolution.
Combined power supply mode of AC adapter and built-in Li-ion chargeable battery, 3 battery charging modes and the specialized brownout mode enables more lasting battery operation.
Four display modes: B, B+B, B+M, M;
256 levels gray scale.
The handle structure and plastic injection model can satisfy out door diagnosis.

Category	Details
Scanning Model	Electronic Linear Array, Electronic Convex Array
Frequency	2.0MHz-7.5MHz
Cine-loop	≥400 frames
Image Storage	≥64 frames; non-volatile
Image Adjustment	Left/Right, Up/Down, Brightness, Contrast Ratio, Focus Position
Image Processing	Pseudo-color, Image smoothing, Histogram, Gamma Correction
Measurement	General: Distance, Perimeter, Area, Volume Obstetrics: BPD, FL, AC, HC, CRL, GA, LMP, EDD
Report	Automatic report generation
Text	Date, Clock, Name, Gender, Age, Doctor, Hospital, Full-screen editing
External Ports	Video Port, Mouse Port, USB2.0 Port
Battery Capacity	≥2200mAh

Description

Category	Details
Scanning Model	Electronic Linear Array, Electronic Convex Array
Frequency	2.0MHz-7.5MHz
Cine-loop	≥400 frames
Image Storage	≥64 frames; non-volatile
Image Adjustment	Left/Right, Up/Down, Brightness, Contrast Ratio, Focus Position
Image Processing	Pseudo-color, Image smoothing, Histogram, Gamma Correction
Measurement	General: Distance, Perimeter, Area, Volume Obstetrics: BPD, FL, AC, HC, CRL, GA, LMP, EDD
Report	Automatic report generation
Text	Date, Clock, Name, Gender, Age, Doctor, Hospital, Full-screen editing
External Ports	Video Port, Mouse Port, USB2.0 Port
Battery Capacity	≥2200mAh
