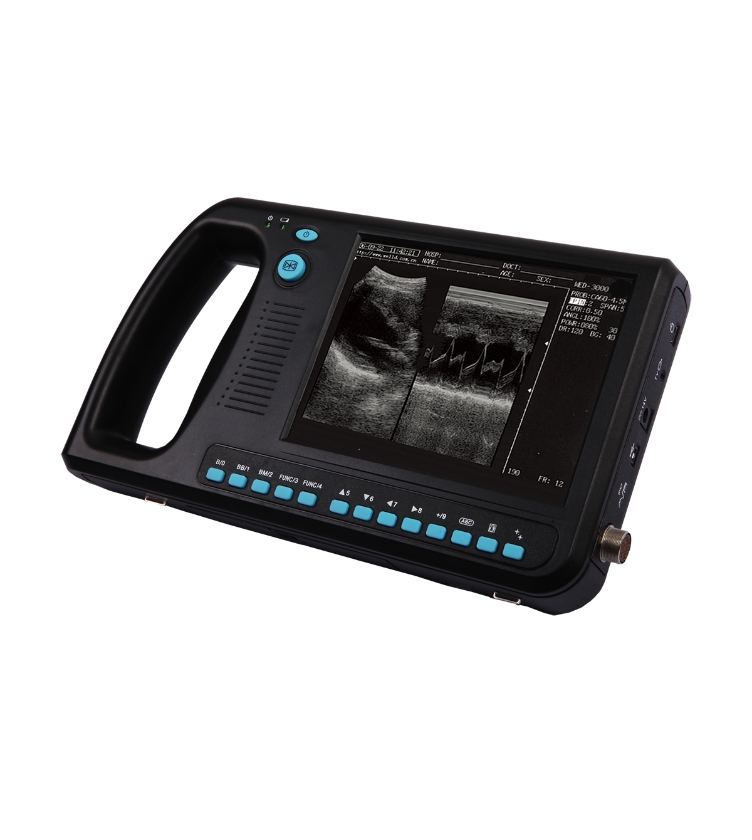

Palmsize digital Ultrasound Diagnostic System WED-3000
-
Technology & Imaging：Utilizes microcomputer control, DSC/DBF technologies, supports 4 display modes (B/B+B/B+M/M) with 256-level grayscale for clear/stable imaging.
-
Power & Portability：Dual power supply (AC adapter + Li-battery) with 3 charging modes & undervoltage protection; handle-type injection design for outdoor diagnostics.
Description
| Machine Parameters | Details |
|---|---|
| Scanning Model | Electronic Linear Array, Electronic Convex Array |
| Frequency | 2.0MHz-7.5MHz |
| Cine-loop | ≥400 frames |
| Image Storage | ≥64 frames; non-volatile |
| Image Adjustment | Left/Right, Up/Down, Brightness, Contrast Ratio, Focus Position |
| Image Processing | Pseudo-color, Image smoothing, Histogram, Gamma Correction |
| Measurement | General: Distance, Perimeter, Area, Volume Obstetrics: BPD, FL, AC, HC, CRL, GA, LMP, gestational age, EDD |
| Report | Automatic report generation |
| Text | Date, Clock, Name, Gender, Age, Doctor, Hospital, Full-screen character editing |
| External Ports | Video Port, Mouse Port, USB2.0 Port |
| Battery Capacity | ≥2200mAh |
Features
-
WED-3000 adopts multiple technologies such as micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization, real time Dynamic receiving
-
focusing (DRF), Digital frequency Scan (DFS), frame correlation technologies and so on All these technologies can endure
-
its image with clarity, stability and high resolution.
-
Combined power supply mode of AC adapter and built-in Li-ion chargeable battery, 3 battery charging modes and the specialized brownout mode enables more lasting battery operation.
-
Four display modes: B, B+B, B+M, M;
-
256 levels gray scale.
-
The handle structure and plastic injection model can satisfy out door diagnosis.
