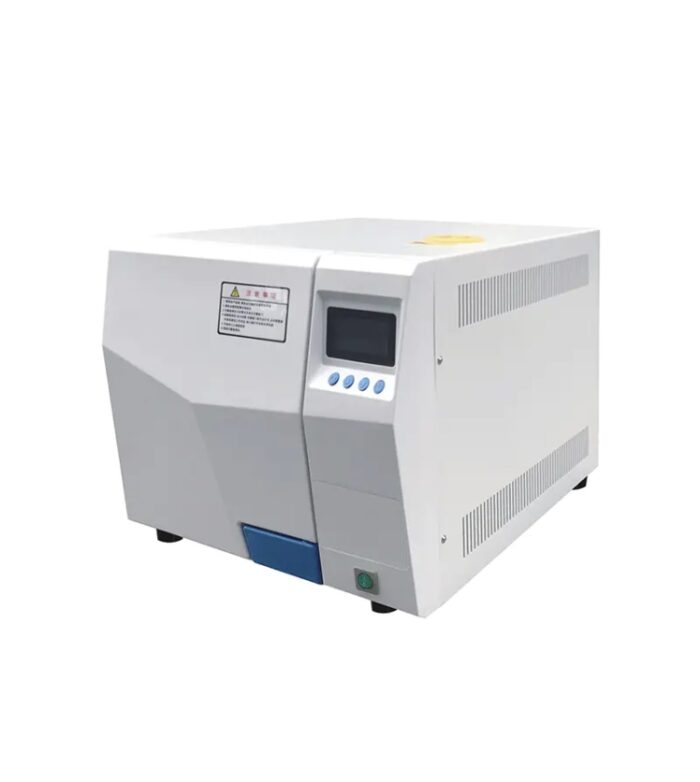

Ophthalmic instrument used Table Top Steam Sterilizer BJ

  • Ophthalmic – use table – top steam sterilizers (TM – XD20D/24D, 20L/24L). 4 – 6min rapid sterilization, auto – controlled full process (water add, temp rise, etc.). Digital display, touch keys, 3 fixed + adjustable cycles.

  • Features: Steam – water inner circulation (no steam discharge), auto cool – air exhaust, door safety lock, water – lack protection. Stainless steel chamber/plates, post – sterilization auto shut – off + beep, with drying function.

  • Specs: 134℃ working temp (105 – 134℃ adjust), 0.22Mpa pressure, ≤±1℃ heat average, 1.5KW power. Compact (dimensions 480×680×455mm), meet ophthalmic instrument sterilization needs.

Add to quote
Categories: , Tags: ,
Description

Technical Specifications

  • The ophthalmic instrument used Table Top Steam Sterilizer for Rapid sterilization in 4~6 minutes, a quick sterilization cycle, which is essential for the efficient processing of ophthalmic instruments. the sterilizer is equipped with safety measures to prevent operation when there is a lack of water, protecting the equipment and ensuring the effectiveness of sterilization. offers flexibility with both pre-set sterilization programs and the ability for users to adjust settings based on their specific needs. The whole process of water adding, temperature rising, sterilizing, drying, and steam discharging is controlled automatically: This indicates a fully automated sterilization process, minimizing the need for manual intervention. With four stainless steel sterilizing plates: The sterilizer includes stainless steel plates for placing ophthalmic instruments during sterilization.
  • For 4~6 minutes rapidly sterilized.
  • Digital display of working status, touch type key.
  • With 3 fixed cycles of the sterilizing program and adjustable for the user.
  • The whole process of water adding, temperature rising, sterilizing, drying steam discharging is controlled automatically.
  • Steam-water inner circulation system: no steam discharge and the environment for sterilizing will be clean and dry.
  • Safe protection of water lacking.
  • Exhaust the cool air automatically.
  • Door safety lock system.
  • With four stainless steel sterilizing plates.
  • The chamber of the sterilizer is made of stainless steel.
  • Automatically shut off with beep reminding after sterilization.
  • With drying function.

MODEL/TECHNICAL DATA

TM-XD20D

TM-XD24D

Sterilizing chamber volume

20L/Φ250×420mm

24L/Φ250×520mm

Working pressure

0.22Mpa

0.22Mpa

Working temperature

134℃

134℃

Temperature adjust range

105-134℃

105-134℃

Timer range

0-99min

0-99min

Heat average

≤±1℃

≤±1℃

Power

1.5KW/AC220V 50Hz

1.5KW/AC220V 50Hz

Sterilizing plate

340×200×30 (3 piece)

400×200×30 (3 piece)

Dimension

480×680×455

480×680×455

Exterior package dimension

580×700×500

580×800×500

G.W/N.W

43kg/40Kg

50kg/45Kg
