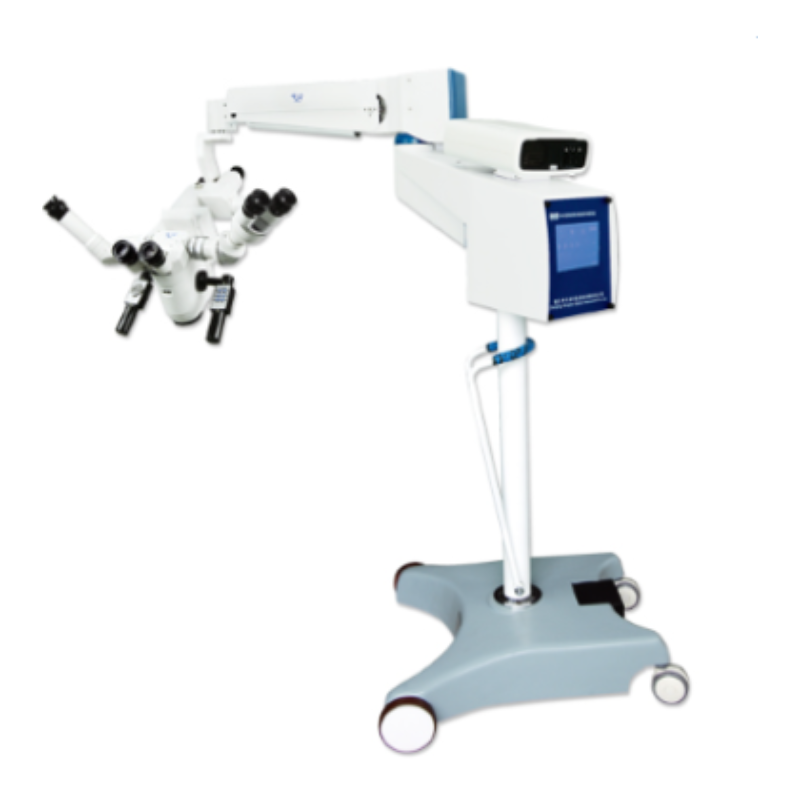

Multifunctional Surgical Microscope ZJ LZL-21

Features

• Handle – type control with one – key start

• Main mirror with optical hinge

• Space electromagnetic locking positioning

• Stepless electric continuous zoom

• Main & auxiliary mirrors share the same optical path, magnification and field of view, featuring clear imaging, strong stereoscopic sense, large depth of field, suitable for deep cavity surgery

• Illumination spot size adjustable as per surgical requirements

• Six – degree – of – freedom movement, large – angle electric pitching and rotation in all directions for easy positioning during surgery

• Microcomputer – controlled modular design supporting teaching, photography and video recording

• Optional accessories: monocular teaching mirror, X – Y plane mover, foot switch, digital photography system, CCD camera system and surgical video image processing system

• LED illumination with dual bulb switching

Main Functions & Technical Parameters

• Handle – type control enables one – key activation of 6 major functions for comfort and convenience

• Space electromagnetic locking positioning ensures flexible control of all rotating joints

• Binocular main mirror with optical hinge can flip – 30°~60° along with the main mirror, supporting six – degree – of – freedom movement. Electric pitching range: left/right ≥130°, front/back ≥130° for easy positioning in surgery

• Eyepiece: 12.5X wide – angle with diopter adjustment and limit device. Working distances: 200, 250, 300, 350, 400mm (optional special large objectives for 450mm and 500mm)

• Interpupillary distance adjustment: 50mm~75mm

• Diopter adjustment: +6D~-6D

• Binocular auxiliary mirror can rotate at any angle and synchronize with the main mirror (same optical path, magnification and field of view)

• Both main and auxiliary mirrors feature electric continuous stepless zoom (5X~25X), with clear imaging and maximum depth of field over 10cm, strong stereoscopic sense meeting deep cavity surgery needs. LED coaxial cold light source illumination system provides 120,000~180,000Lx surgical surface illuminance with dual lamp switching

• Field of view diameter: 85mm~8.5mm, adjustable spot size suitable for deep cavity surgery

• Electric fine focusing system with focusing range ≥40mm

• Microcomputer program control with stepless dimming and speed regulation, storing 8 doctors’ preferred parameters. LCD touchscreen switch design ensures stable and reliable use. Foot – supported device for flexible and stable operation

• Streamlined frame design with coarse adjustment lifting range ≥500mm, arm span ≥1200mm and carrying arm rotation angle 360°

Optional Accessories

• Monocular teaching mirror, X – Y plane mover, foot control switch, digital photography system, CCD camera system, surgical video image processing system (computer workstation)
