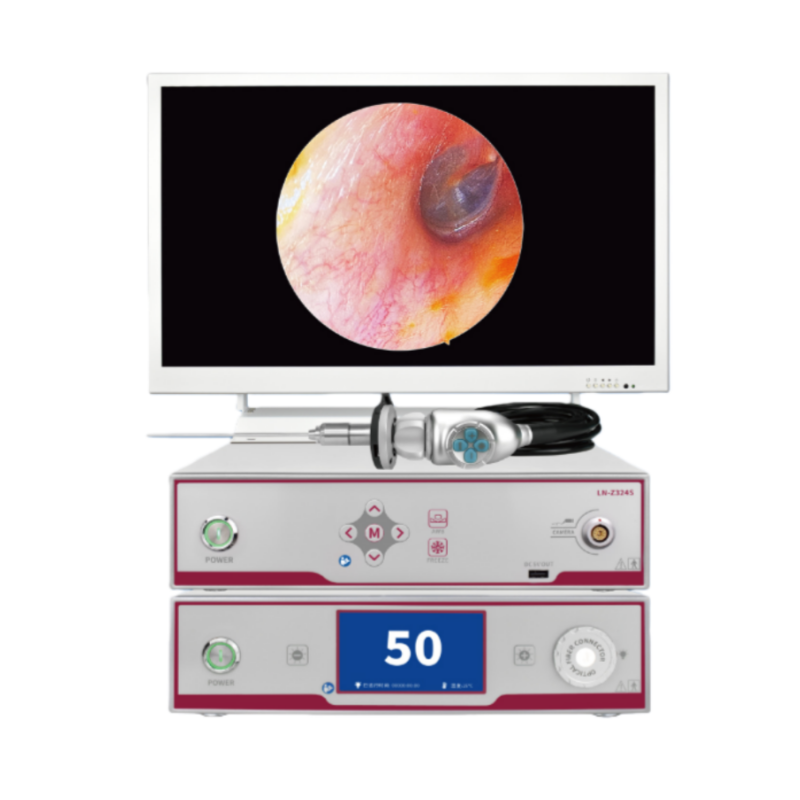

Medical Endoscopic Video Processor Sn LN-Z324S
Designed for diverse clinical scenarios, the LN-Z324S offers 1080P 60FPS visuals, 5500K color temp, and 100W LED lighting (≥60000H lifespan). It includes HDMI/SDI outputs, multifunctional features (smoke penetration, zero-delay), and customizable endoscopy modes.
Technical Specifications
Multiple modes available: The menu offers seven selectable modes based on usage scenarios. Depending on specific conditions, different imaging modes enhance colors and shadow in distinct ways. Mode selection can be adjusted within the menu.
Parameter | Specification |
|---|---|
Model Number | LN-Z324S |
Resolution | 1080P 60FPS (1920×1080) |
Image Sensor | 1/2.8" SONY CMOS |
Endoscopy Mode | Otolaryngology/Hysteroscopy/Cystoscopy/Funicular Endoscopy/Fiberoptic Endoscopy/Laparoscopy/Customization, etc. |
Shortcut Keys | White balance, freeze, image zoom in, image zoom out |
Color temperature | 5500K |
Light Source Adjustment | 0-100 |
Output Interface | HDMI/DVI/SDI/CVBS |
Light source power | 100V |
Luminous Flux | 800-2600lm |
Light source lifespan | ≥60000H |
Monitor | L380×W316×H120mm(≈3.8kg) |
Multifunctional Applications | Smoke and haze penetration. Real-time zero-delay. Grid elimination. Dual-camera integration. Low-temperature cold light. Image flipping. Moire pattern removal. Endoscopy modes. |
