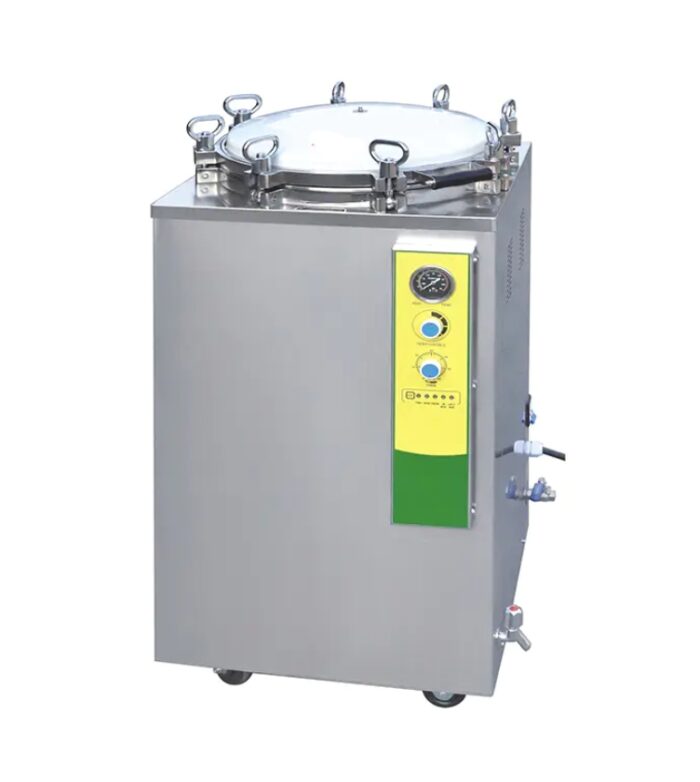

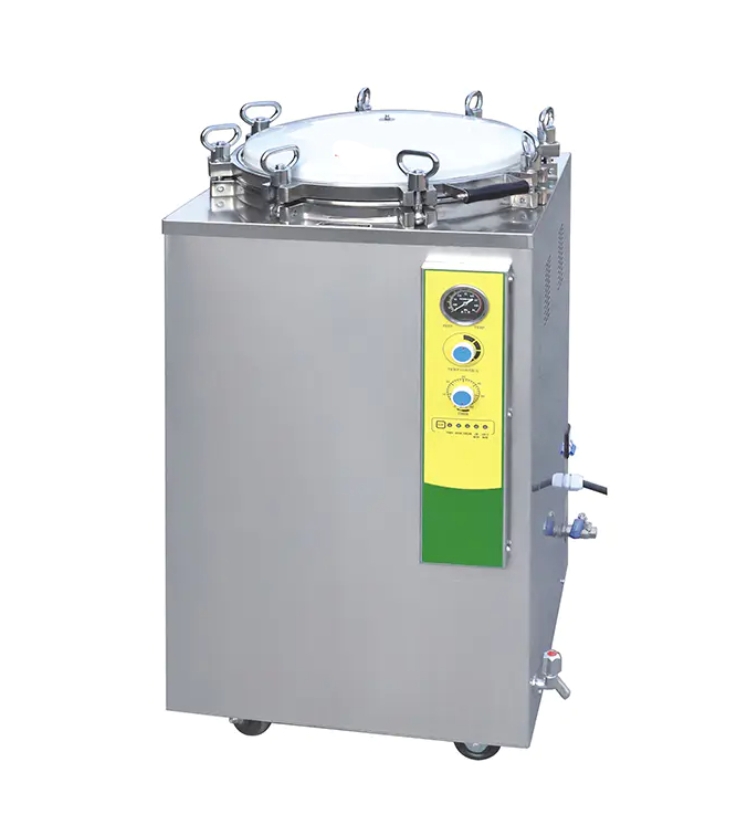

Mechanical Type Vertical Pressure Steam Sterilizer BJ

Structural & Safety Design: Features a fully stainless steel structure for durability and corrosion resistance, with two stainless steel sterilizing baskets for practical use. Equipped with over-temperature/over-pressure auto-protection, water shortage safety safeguards, and a double-scale pressure gauge, ensuring safe and reliable operation.
Operational Convenience: Indicator light shows working status, with a bottom exhaust structure for easy cold air discharge. Automatically shuts off with a beep reminder after sterilization, simplifying operation. Temperature adjustable 105-134℃, timer range 0-60min, adapting to various sterilization needs.

MODEL/Technical Data	LS-35LJ	LS-50LJ	LS-75LJ	LS-100LJ	LS-120LJ	LS-150LJ
Chamber volume	35L/Φ318×450mm	50L/Φ340×550mm	75L/Φ400×600mm	100L/Φ440×650mm	120L/Φ480×660mm	150L/Φ510×740mm
Power	2.5KW/AC220V 50HZ	3KW/AC220V 50HZ	4.5KW/AC220V 50HZ	-	6KW/AC220V 50HZ	-
Overall dimension(mm)	480×460×850	520×500×980	560×560×980	590×590×1080	600×640×1140	670×690×1130
Transport dimensio(mm)	540×540×970	580×580×1090	610×610×1110	640×640×1170	690×690×1240	730×730×1230
G.W/N.W	61Kg/46Kg	Single gross weight	73Kg/56Kg	95kg/73Kg	116Kg/100Kg	130Kg/111Kg

Description

MODEL/Technical Data	LS-35LJ	LS-50LJ	LS-75LJ	LS-100LJ	LS-120LJ	LS-150LJ
Chamber volume	35L/Φ318×450mm	50L/Φ340×550mm	75L/Φ400×600mm	100L/Φ440×650mm	120L/Φ480×660mm	150L/Φ510×740mm
Power	2.5KW/AC220V 50HZ	3KW/AC220V 50HZ	4.5KW/AC220V 50HZ	-	6KW/AC220V 50HZ	-
Overall dimension(mm)	480×460×850	520×500×980	560×560×980	590×590×1080	600×640×1140	670×690×1130
Transport dimensio(mm)	540×540×970	580×580×1090	610×610×1110	640×640×1170	690×690×1240	730×730×1230
G.W/N.W	61Kg/46Kg	Single gross weight	73Kg/56Kg	95kg/73Kg	116Kg/100Kg	130Kg/111Kg
