Mechanical Type Portable Pressure Steam Sterilizer BJ

  • Mechanical-controlled portable steam sterilizer with full stainless steel structure and electric heating. Operates at 126℃/0.14-0.16MPa, with 18-24L capacity, easy and safe to use.

  • Equipped with indicator light for working status, double-scale pressure gauge, 0-60min timer. Automatically shuts off with beep after sterilization, temperature adjustable 105-126℃ (uniformity ≤±1℃).

  • Models YX-18LDJ/YX-24LDJ, transport dimensions 410×410×520-630mm, net weight 16-18kg, suitable for small-scale sterilization scenarios relying on mechanical control.

Description

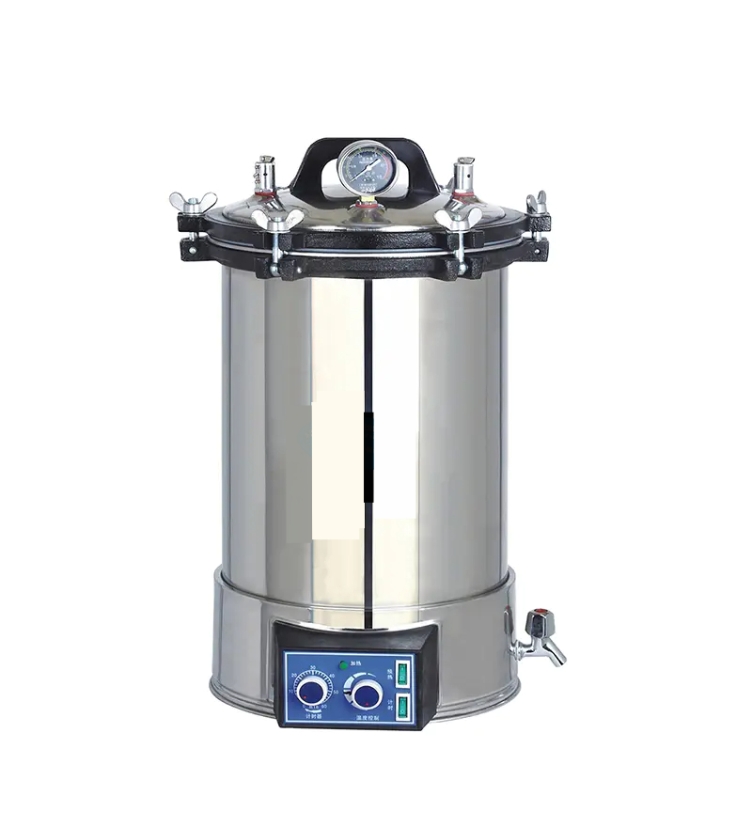

Mechanical Type Portable Pressure Steam Sterilizer typically refers to a sterilization device that operates using mechanical controls, rather than digital or electronic controls. Instead of electronic sensors and programmable settings, a mechanical sterilizer uses a pressure control mechanism that is often manually set or adjusted. This can involve turning knobs or adjusting levers to control the pressure within the sterilization chamber. Mechanical sterilizers typically have manual temperature controls. Users might adjust the temperature settings using mechanical dials or switches to achieve the desired level for effective sterilization. Mechanical sterilizers may have analog gauges that display the current temperature and pressure inside the sterilization chamber. Users monitor these gauges to ensure that the conditions are within the specified range. The construction of the sterilizer is often sturdy and durable, commonly made of stainless steel to withstand the high pressure and temperature conditions during sterilization.

● Fully stainless steel structure.
● Indicator light indicates working state.
● Double scale indication pressure gauge.
● Time scope: 0~60min.
● Automatically shut off with beep reminding after sterilization.
● Electric heated.
● Easy to operate, safe, and reliable.

MODEL/Technical Data YX-18LDJ YX-24LDJ
Sterilizing volume 18L 24L
Φ280×260mm Φ280×390mm
Working pressure 0.14-0.16Mpa
Working temperature 126℃
Temperature adjust range 105~126℃
Timer range 0-60min
Max. Safety pressure 0.165Mpa
Heat average ≤±1℃
Power AC220V 50HZ/2KW
Transport dimension(mm) 410×410×520 410×410×630
G.W/N.W 18kg/16Kg 20kg/18Kg
