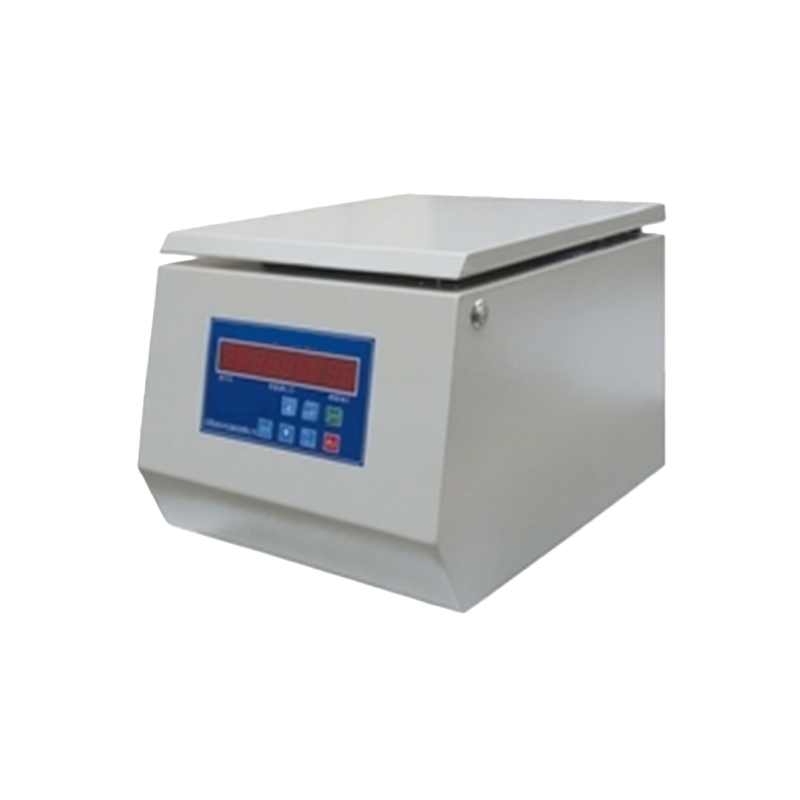

Low Speed Centrifuge JTGF TDZ4A-WS/TDZ5A-WS

Centrifugal separation technology is a new technology developed based on the state of particles in a practical centrifugal environment. Particles with different densities, sizes or shapes settle in different centrifugal environments, so a roughly spherical heterogeneous mixture can be separated by centrifugation. The centrifuge is used for further research in biochemistry and separation of large quantities of substances. For example, it can collect cells, separate plasma, isolate DNA and protein molecules from these pre-purified preparations, and also separate viruses, large-scale Escherichia coli, strict cellular components, nucleoprotein particles, etc.

II. Main Technical Parameters:

• Power Supply: AC 220V±10V, 50Hz

• Total Power: 250W (TDZ4A-WS, 4000 rpm); 450W (TDZ5A, 5000 rpm)

• Rotational Speed: 500–4000 rpm±50 rpm, with digital display

• Centrifugal Capacity: 6×20ml, 12×20ml, 18×15ml, 24×15ml, 36×10ml

• Relative Centrifugal Force (RCF): 2360×g

• Overall Dimensions: 350×380×280 (mm)

• Timer: 1–99 minutes, with digital display

• Weight: 20kg

• Noise: ≤65dB at maximum rotational speed
