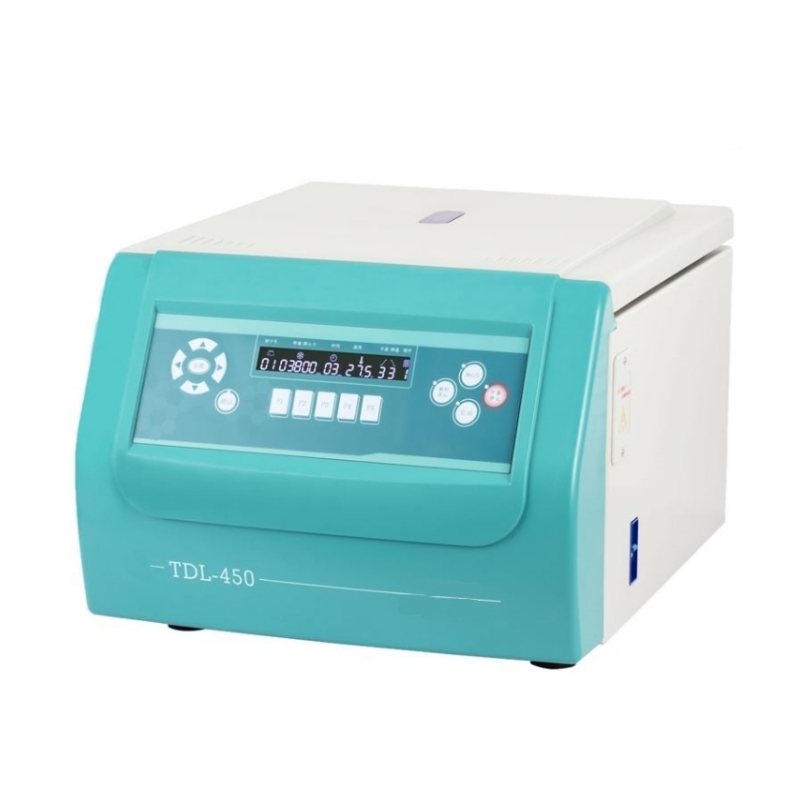

Low Speed Centrifuge BO TDL-450
The TDL-450 centrifuge, a domestic-made benchtop model for cell/bacteria centrifugation, has a max speed of 5000rpm, generating 5000xg centrifugal force. With a 250ml×4 capacity,
it uses an AC variable-frequency brushless motor, is maintenance-free and has a Hall speed measurement system. The microcomputer variable-frequency control with LCD display allows parameter changes during operation. It suits medical, biotech and pharmaceutical fields, with a spring – suspended balance system (20g unbalance tolerance), 9 programmable programs and safety features like auto rotor balance detection.
With ≤60dB noise, 63×50×40cm size and 60kg weight, it fits well in lab spaces. The spring-suspended balance and auto unbalance stop ensure stable runs, while the Hall speed sensor and microcomputer control guarantee precision.
Description
Technical Specifications
- Driven by an AC variable-frequency brushless motor, maintenance-free, equipped with a Hall speed measurement system.
- Microcomputer variable-frequency control system, with liquid crystal display.
- Parameters (rpm/rcf) can be changed at any time during operation without stopping the machine.
- Adopt a spring-suspended balance system, with an unbalance capacity of up to 20 grams.
- Programmable operation, 9 sets of program storage, 9 levels of acceleration and deceleration, and soft-brake function.
- Button setting for quick parameter configuration.
- Constant-speed timing function: the countdown starts only after reaching the set speed.
- With automatic rotor balance measurement function, it will automatically stop running when unbalance occurs.
- Dual-channel airflow heat dissipation technology, equipped with a temperature anomaly detector to protect sample safety.
- After centrifugation, the centrifuge cover opens automatically for easy sample loading and unloading.
- Micro-motor double-suction electronic door lock, press lightly to close the door cover quickly, safe and mute.
- With an automatic fault diagnosis system, providing multiple protections for overspeed, over-temperature, unbalance, electronic door cover, etc., to ensure the safe operation of the instrument.
PARAMETER NAME | PARAMETER VALUE |
|---|---|
Typical Configuration | Horizontal Rotor Centrifuge |
Origin Category | Domestic |
Instrument Function | Ordinary Centrifuge |
Centrifugation Grade | Cell/Bacteria |
Maximum Speed | 5000rpm |
Price Range | To be negotiated |
Application Field | Medical and Sanitary, Biological industry, Pharmaceutical/Biopharmaceutical, Comprehensive |
Maximum Capacity | 250ml |
PARAMETER NAME | PARAMETER VALUE |
|---|---|
Maximum Speed | 5000R/MIN |
Control System | Variable-frequency Processor |
Maximum Capacity | 250ml×4 pieces |
Drive System | AC Variable-frequency Motor |
Maximum Relative Centrifugal Force | 5000Xg |
Power Supply | AC220V 50Hz |
Timing Range | 1s – 99min59s |
Input Power | 600W |
Size (Length * Width * Height) | 63×50×40cm |
Net Weight | 60kg |
