Laboratory Spectrophotometer JK WFH-207

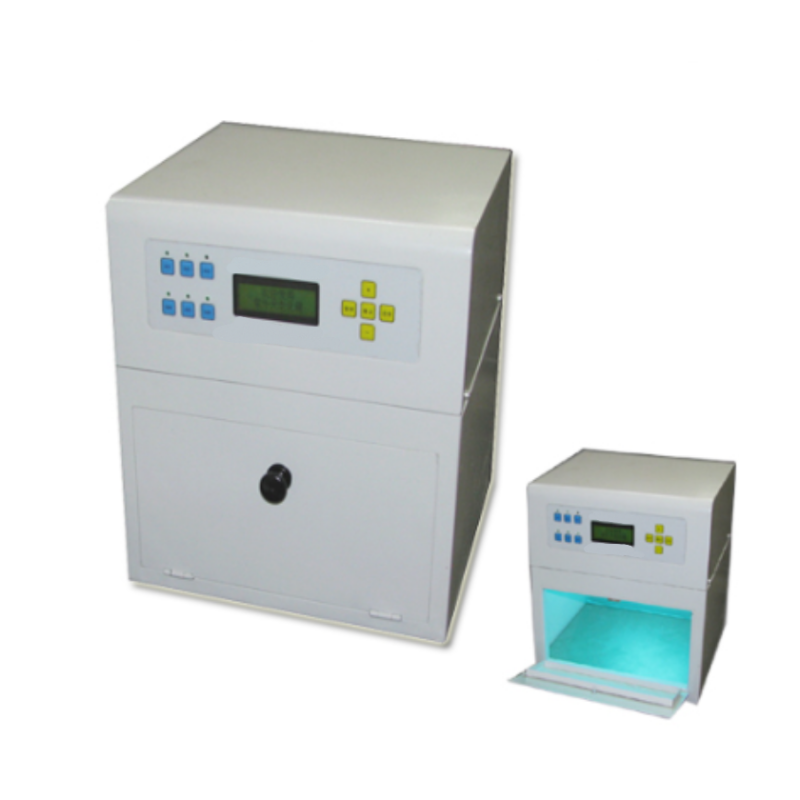

WFH-207 UV Crosslinker is a versatile tool for lab and industrial use. It fixes nucleic acids to membranes (key for Southern/Northern blotting) and tests material aging under UV, simulating outdoor durability for plastics, coatings, etc.
With 6 independently controlled UV lamps, microcomputer timing (0-999min), it’s easy to operate, compact, and multi-purpose—suitable for crosslinking, aging tests, and disinfection.
Technical Specifications
1. Overview & Core Uses
WFH-207 UV Crosslinker, also called UV Crosslinking Instrument, UV Mutagenesis Chamber, etc., is a versatile UV radiation system for labs and industrial testing. It fixes nucleic acids to membranes (critical for Southern/Northern blotting) via controllable UV exposure, and accelerates material aging tests (plastics, coatings, etc.) to assess UV durability.
2. Key Features
Equipped with 6 UV lamps (independently controlled), it enables adjustable intensity. A microcomputer timer supports long-term operation. Compact, lightweight, and easy to operate, it serves multiple purposes: crosslinking, aging tests, and disinfection.
3. Technical Specifications
Wavelength: 254nm (optional 365nm, 302nm)
Power: 36W (6×6W lamps), 220V 50Hz
Timer: 0-999min
Dimensions: 280×250×300mm (external); 230×230×110mm (inner space)
Weight: 7kg
