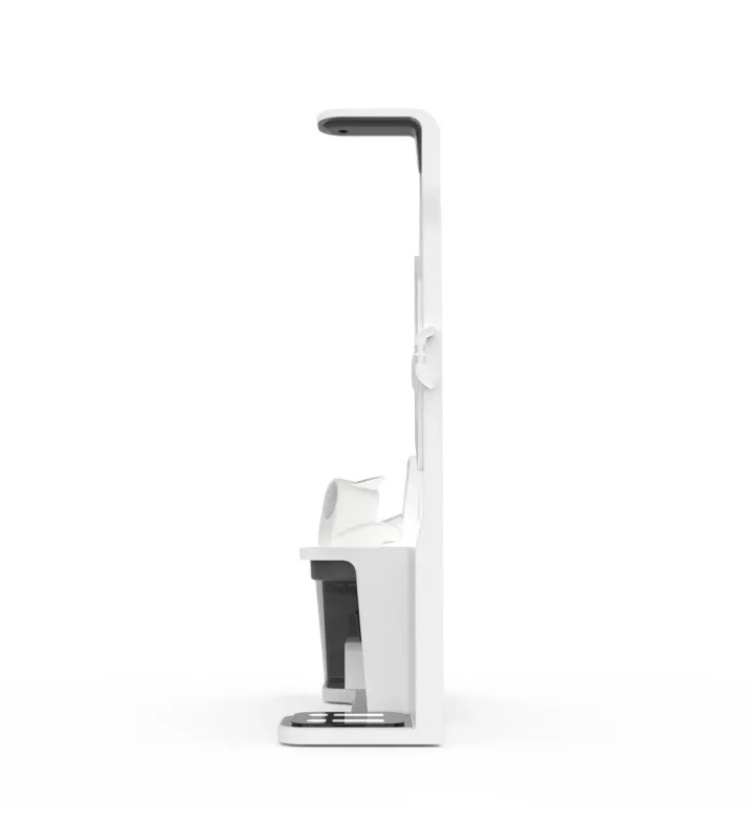

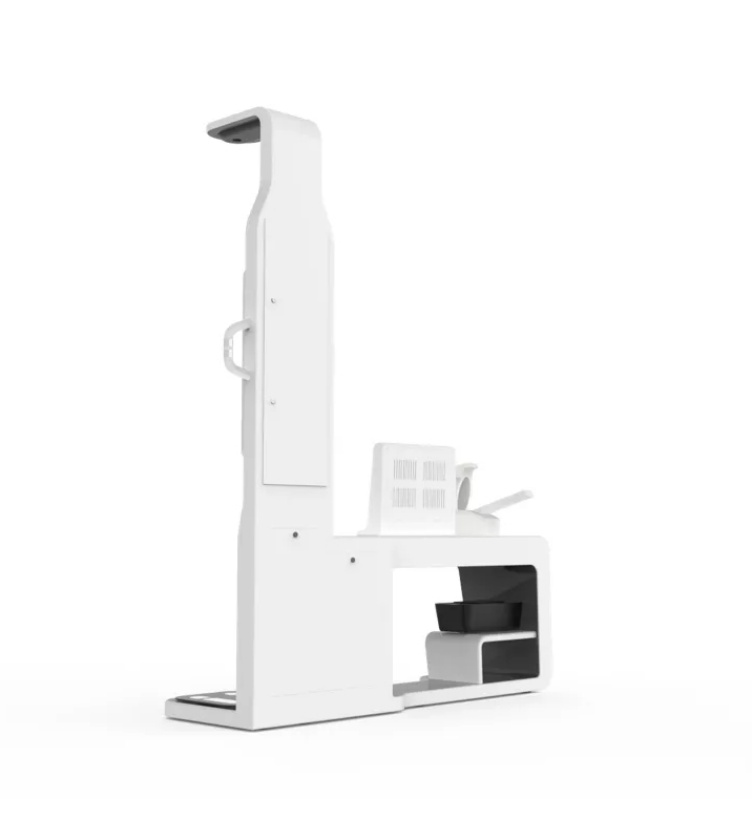

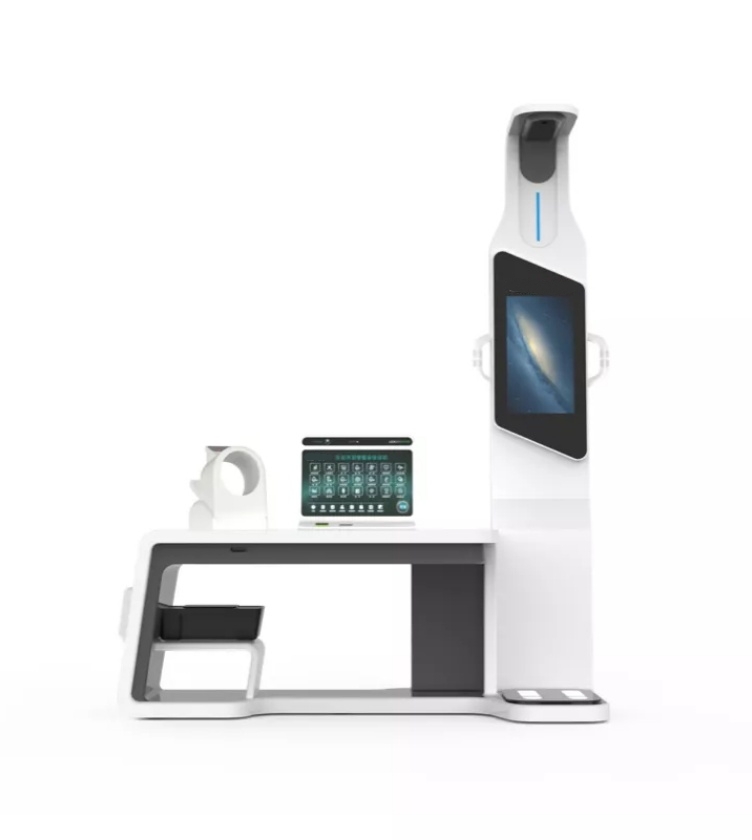

Intelligent Health Check-up Kiosk LJ HW-V7000
-
HW – V7000 Intelligent Health Check – up Kiosk integrates multiple health detection functions.
-
Adopting modern medical tech, it offers comprehensive check – ups, supports intelligent file building, cloud – based data analysis, and chronic disease management, with 70 + health indicators and expandable functions like rapid ECG.
-
It features dual – screen collaboration (21.5 – inch & 18.5 – inch screens), multiple identity recognition methods, online consultation, and multi – level user permission management.
Description
Product Introduction
HW-V7000Intelligent Health Check-up Kiosk is an advanced device integrating multiple health detection functions. It adopts a number of modern medical technologies to provide users with comprehensive and accurate health check services. It is a self-service one-stop, all-round professional health examination equipment independently developed based on the national public health service system. Its own can only collect information about multiple vital signs and parameters of the human body, realize intelligent file building and intelligent data collection, perform data analysis through cloud computing, conduct health assessment, and realize intelligent, integrated and accurate chronic disease management.
-
Measurement items: height, weight, BMI, human body composition (17 items), blood pressure, heart rate, arteriosclerosis, blood oxygen, 12-cardiogram, blood sugar, psychological assessment and 70+ health indicators
-
Expand functions: rapid electrocardiogram, bone density, alcohol detection, etc.
Product Advantages
-
Support online consultation, including search for famous doctors and health status consultation
-
Remote replacement of missionary videos, pictures, and no time and place restrictions
-
Multiple identity recognition methods
-
Multi-level user permission management, clear division of labor to improve work efficiency
-
Dual-screen collaborative interaction: 21.5 large screen supports infrared remote control operation, 18.5-inch main operating screen
Project configuration
Product model
ＨＷ－V7000Intelligent Health Check-up Kiosk
Standard functions
Dual screen collaborative work: ≥21.5-inch high-definition LCD screen supports the release of education videos and pictures, and supports infrared remote control operation; ≥18.5-inch main operation touch screen, which can personalize measurement items according to needs
Extended features
Rapid electrocardiogram, bone density, arteriosclerosis, alcohol testing, etc.
Auxiliary functions and system configuration
Screen configuration
Dual screen collaborative work: ≥21.5-inch high-definition LCD screen supports the release of education videos and pictures, and supports infrared remote control operation; ≥18.5-inch main operation touch screen, which can personalize measurement items according to needs
Fully automatic blood pressure meter
Medical pulse wave blood pressure meter, oscillometric measurement method, 17-42cm large boom, accuracy within ±3mmHg
Human body composition testing
Human body resistance method to measure fat, basal metabolism, moisture, muscle, protein, fat removal weight, bone salt, internal and external fluids, etc.
Blood oxygen test
Finger-type blood oxygen detection is an important physiological index of respiratory cycle, measuring accuracy ±2% resolution 1%
Temperature test
Contactless precision infrared temperature measurement, automatic temperature compensation, range 32.0℃-42℃ resolution 0.1℃ distance 1-5cm
Rapid ECG test
Hand-held rapid measurement of electrocardiogram, the measured electrocardiogram is standard lead I
12-lead electrocardiogram
500Hz ECG signal sampling rate, standard twelve leads, three-speed gain, error ≤±5%
Blood sugar, uric acid, cholesterol
Standard resistance bar test, fingertip microvascular whole blood, unit: mmol/L
Hemoglobin detection
Test content: Hemoglobin and erythrocytic backlog
Four tests for blood lipids
Total cholesterol, triglycerides, high-density lipoprotein, low-density lipoprotein
Urine analysis
Test items: twelve items including leukocytes, nitrites, proteins, pH values, vitamin C, microalbumin, etc.
Physical identification of traditional Chinese medicine
The nine major physiques of traditional Chinese medicine can be automatically judged and analyzed, and the two systems of 33 questions and 66 questions can be selected.
Waist-hip ratio
Test items: Automatic tape measure to measure waist circumference and hip circumference, and calculate waist-to-hip ratio
Lung function
Test items: peak exhalation flow, exhalation volume in one second, and vigorous lung capacity
arteriosclerosis
Detection of blood flow velocity pulse index and arterial pressure volume index

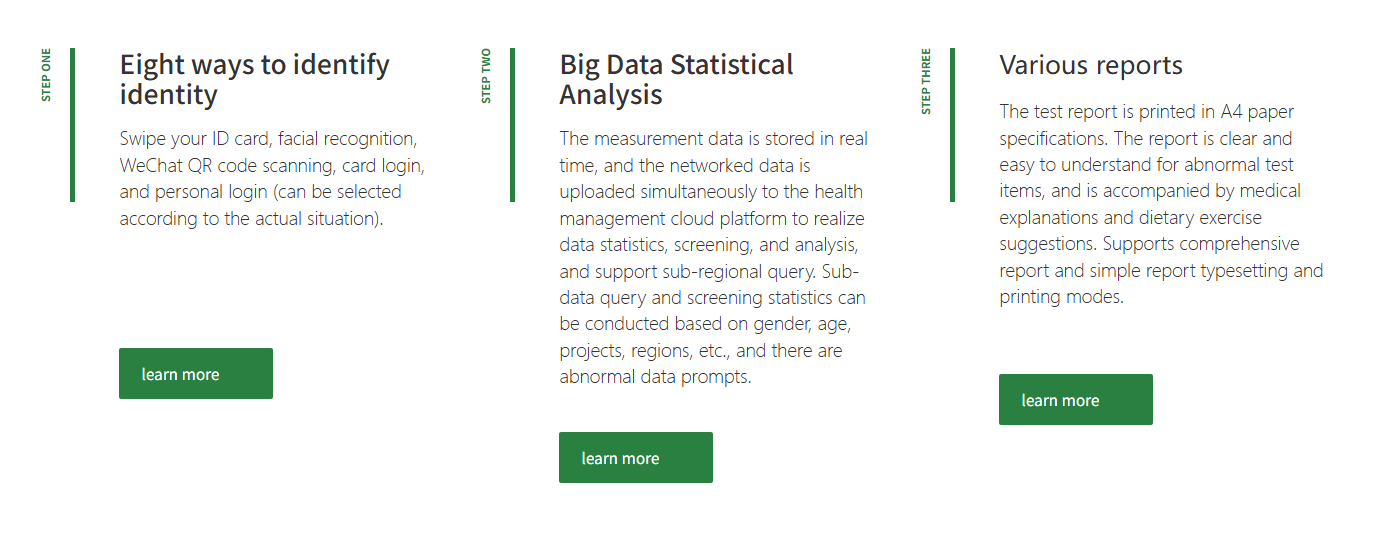

Eight login methods
Scan the ID card, facial recognition, fingerprint, WeChat code scan, card login, work number login, personal login, bar/QR code login (can be selected according to actual situation)
Intelligent one-step file creation
Residents swipe their ID cards, and the system quickly collects information on the person’s name, gender, date of birth, address, etc., and automatically creates personal health records.
Psychological assessment
15 evaluation methods
Vision color blindness
Wireless infrared remote control operation 32-inch screen to measure vision color blindness
Operation method
The industrial control host uses three-screen collaborative work to complete the physical examination in an intelligent one-stop
Power supply voltage
AC: 110V-240V, 50Hz; DC: 12V±10%
Average power consumption
≤85W
Working environment
Temperature: -10℃-+40℃, humidity: ≤85%
Product weight
≤200kg
External dimensions
MAX: 195 (L)×60 (W)×235 (H) cm
