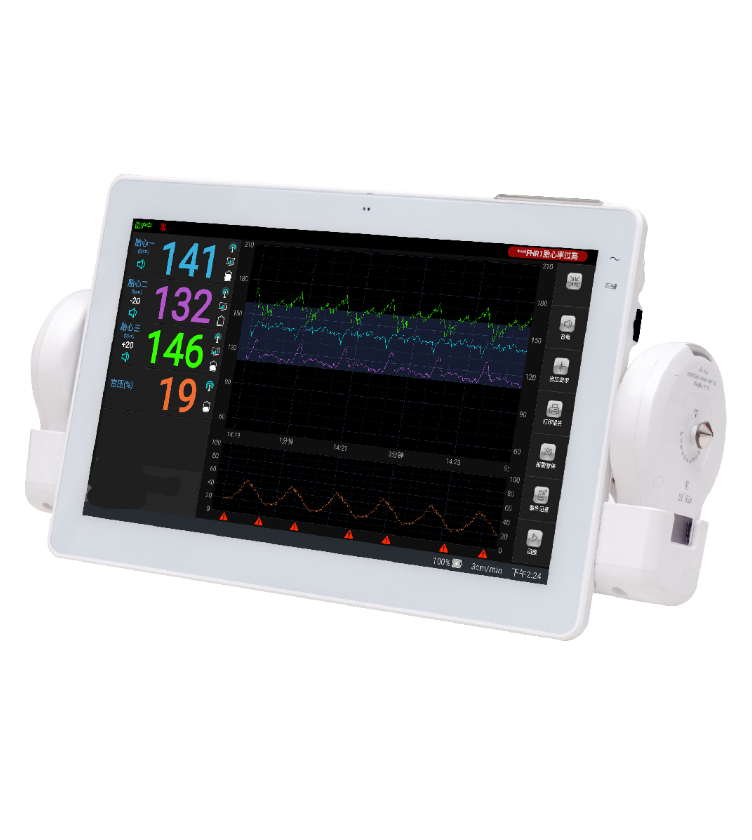

Intelligent Fetal Monitoring System LY LM-F3

Doppler Fetal Monitor

Third-generation fully digital wireless probe: The probe functions as the main unit with the unique “network interruption and continuation” feature.

The fully digital wireless probe can completely replace traditional wired probes. The patented “network interruption and continuation” feature ensures that monitoring information is not lost and can adapt to various harsh wireless network environments in hospitals.

Dynamic configuration for multiple pregnancies monitoring

The probe and main unit automatically recognize each other, allowing for the addition of fetal heart probes for dual or triple pregnancy monitoring based on needs.

Fetal heart sound playback and monitoring curves

Real-time dragging and reviewing of monitoring curves and listening to fetal heart sounds during monitoring.

Mobile emergency monitoring, supports probe roaming and bed transfer functions

No need to replace the monitoring probe, one-click seamless switching and connection to the main unit, meeting the monitoring needs during transportation from an ambulance to the delivery room.

Graphical management and presentation of labor data

High-resolution touch screen, graphical information input, and recording of clinical events, meeting the quick input needs in obstetrics clinical practice.

Highly integrated and feature-rich

Integrates fetal monitor and clinical information terminal, meeting the requirements of medical informationization.

Paperless design, supports wireless network printing

Technical specifications

Wireless probe: Compatible with Bluetooth and WiFi wireless connections to the main unit, with an extended WiFi communication distance.

Display screen: 12-inch capacitive touch screen with high-definition display.

Multiple pregnancies monitoring: FHR+TOCO can be dynamically configured for dual or triple pregnancy monitoring as needed.

Holistic monitoring records: CTG fetal heart contraction graphs and Doppler fetal heart sound playback at any moment.

Supports wireless centralized printing: Directly connect to standard WiFi printers or thermal printers.

Mobile network connectivity (optional): Built-in 4G mobile network access function, seamlessly connecting to the hospital information platform during ambulance transportation to ensure real-time monitoring data availability.

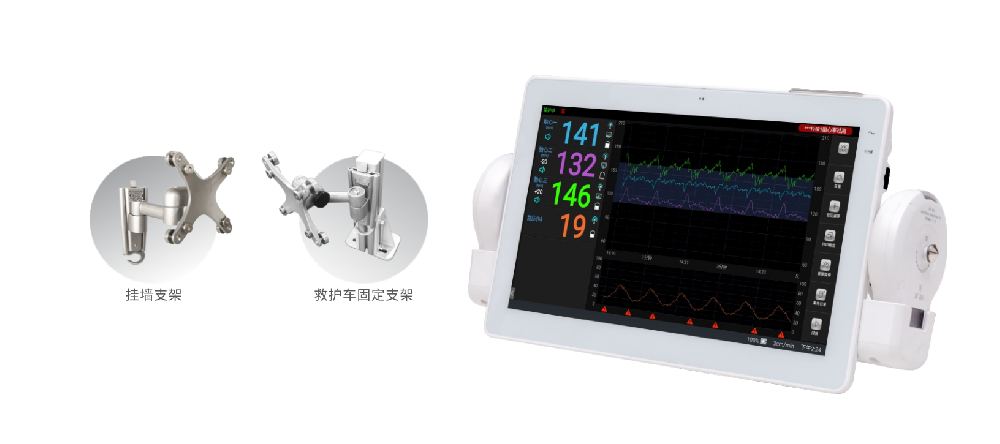

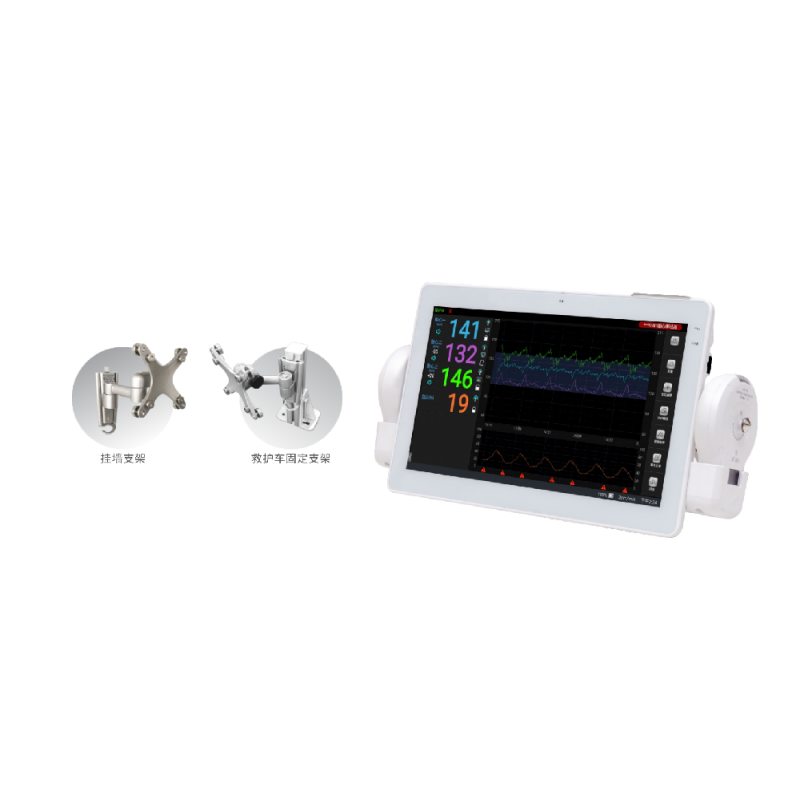

Installation options: Tabletop, portable, optional wall-mount brackets, ambulance fixed brackets.
