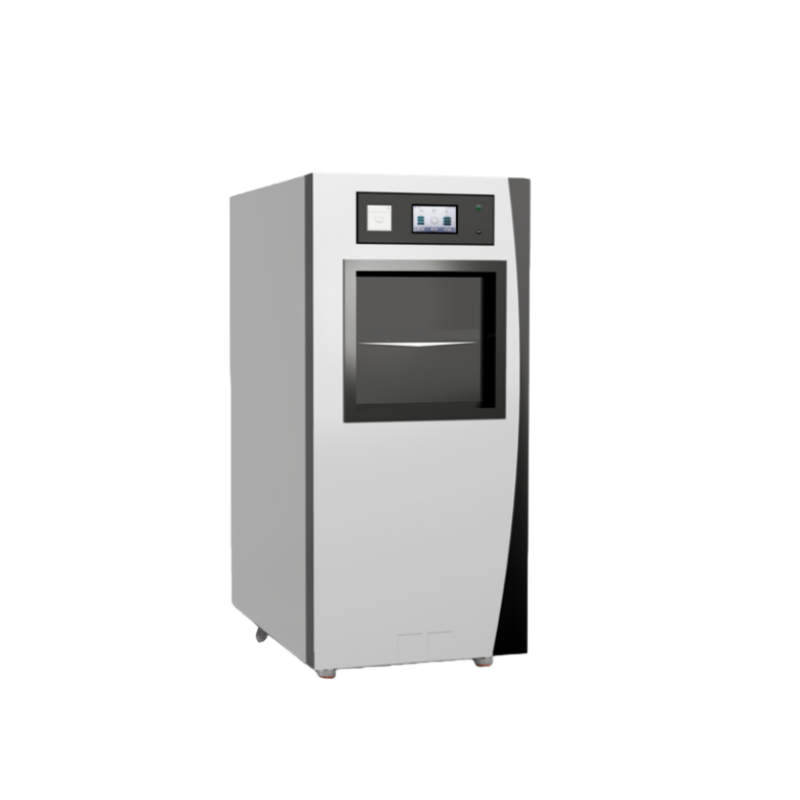

Hydrogen Peroxide Low-Temperature Plasma Sterilizer SQ WD Series

  • Low-temperature plasma H₂O₂ sterilizers use high-frequency electric fields (low temp/vacuum) to generate plasma, eliminating microbes via active substances and H₂O₂.

  • Sterilizes endoscopes, medical tools, and materials like metal, glass, silicone, rubber.

  • Models SQ-WD-100 (100L, 3.4KVA), SQ-WD-135 (135L, 3.5KVA), SQ-WD-190 (190L, 4.3KVA) with varied dimensions.

Description

Features

Equipment Principle

Low-temperature plasma hydrogen peroxide sterilizers generate plasma through high-frequency electric fields under low-temperature and vacuum conditions. Active substances within the plasma react with proteins and nucleic acids in microorganisms, destroying them and disrupting their survival functions. Additionally, with H₂O₂ as the medium, it acts on microbial cells to further eliminate microorganisms.

Scope of Application

Items and materials that can be sterilized include:
Hysteroscopes, laparoscopes, laryngoscopes, probes, rigid endoscopes, flexible endoscopes, ophthalmic lenses, fiber optic cables, intracranial pressure sensors, cryotherapy probes, prostate resectoscopes, esophageal dilators, electrocautery instruments, defibrillator motors, laser heads, as well as metal, glass, silicone, and rubber materials, etc.

Parameter

MODEL

INNER TANK DIMENSIONS (MM)

OVERALL DIMENSIONS (MM)

VOLUME

POWER

WEIGHT

SQ-WD-100

700×430×360

1067×790×1782

100L

3.4KVA

301KG

SQ-WD-135

750×450×400

1067×790×1782

135L

3.5KVA

308KG

SQ-WD-190

820×510×460

1067×790×1782

190L

4.3KVA

341KG
