Hydrogen Peroxide Low-Temperature Plasma Sterilizer SQ DZ Series

1. Product Overview

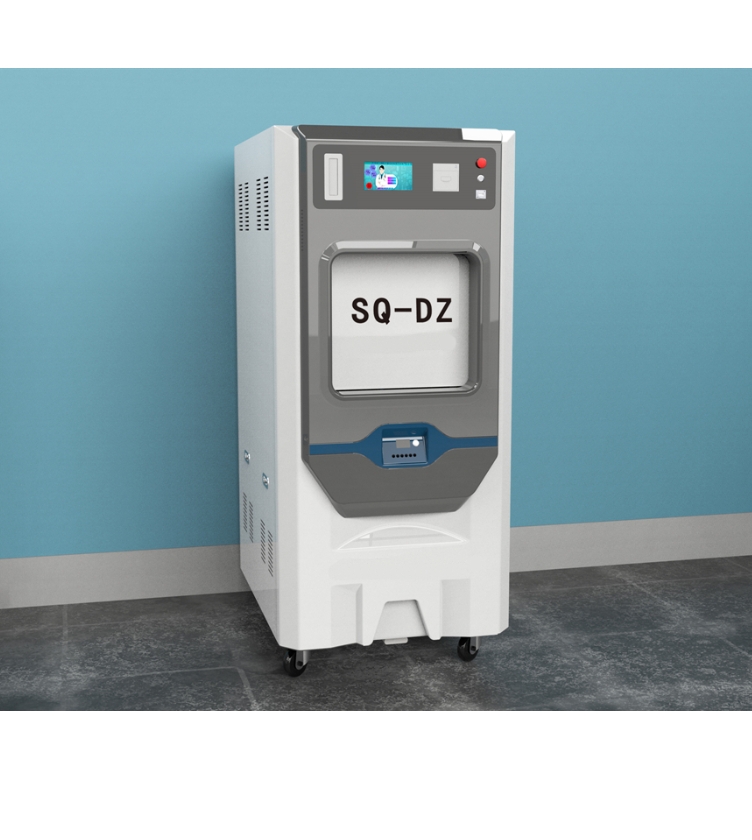

Hydrogen Peroxide Low-Temperature Plasma Sterilizer SQ-DZ Series
Sanqiang brand low-temperature plasma hydrogen peroxide sterilizers generate plasma in a vacuum chamber under low temperature (50℃±5℃) via high-frequency electric fields. Active plasma substances react with microbial proteins/nucleic acids, while hydrogen peroxide further eliminates pathogens by disrupting cellular functions. This dual-action mechanism ensures thorough sterilization without damaging heat-sensitive instruments.

2. Core Advantages & Applications

Applications

Ideal for CSSD (Central Sterile Supply Departments), operating rooms, laboratories, and medical testing facilities requiring rapid, safe sterilization.

• Eco-Friendly: Uses hydrogen peroxide (no toxic residues, zero emissions).

• Low-Temp Protection: Operates at 50℃±5℃ to safeguard delicate instruments.

• High Efficiency: Rectangular chamber design maximizes loading capacity.

• Uniform Performance: Aluminum chamber ensures rapid heat conduction and stable H₂O₂ concentration.

• Smart Operation: One-button control with 8G U-disk storage for ≥1M sterilization records.

3. Compatible Items

• Medical Devices: Hysteroscopes, laparoscopes, endoscopes, probes, sensors, laser heads.

• Materials: Metal, glass, silicone, rubber, fiber optics, and plastic instruments.

  4. Technical Specifications

  Model	Inner Tank (mm)	Overall Dimensions (mm)	Volume	Power	Weight
  SQ-DZ100	700×430×360	1105×790×1765	108L	3.5KVA	265KG
  SQ-DZ130	750×450×400	1105×790×1765	135L	4.2KVA	272KG
  SQ-DZ220	820×510×460	1105×790×1765	192L	4.8KVA	305KG
