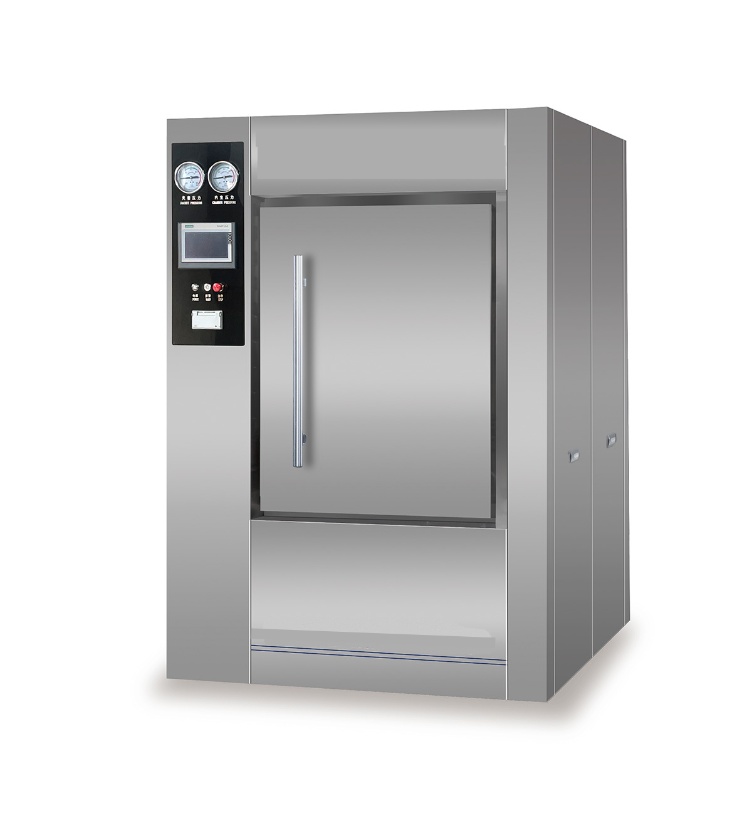

Horizontal Steam Sterilizer DG WF series

  • Horizontal rectangular inner chamber with reinforced ribs and jacket structure, gear-embedded + motor-locking door, pneumatic door seal. Good safety, insulation and drying performance.

  • HMI with touch screen + PLC control, F0 value and temperature-time dual guarantee for sterilization. Third-level permission management, traceable with multiple programs.

  • Working temp 105~138℃, pressure 0.245Mpa. Multiple models available for fabrics, instruments, etc., with varying steam/water consumption and dimensions.

Description

Technical Specifications

  • Product Features Horizontal rectangular inner chamber+reinforced ribs+jacket structure, with good safety, insulation, and drying effects;
  • Gear embedded+motor locking door structure, low fault and reliable;
  • The door seal is pneumatic, and single and double doors are optional (double door interlock);
  • Equipped with standard equipment verification interface;
  • The pipeline system is designed for optimization, with SUS304 pipes and clamp type quick installation method;
  • Control system: HMI human-machine interface, using touch screen+PLC;
  • The F0 value and temperature time double guarantee the sterilization effect, with a complete sterilization file record;
  • It has functions such as program selection, parameter setting, equipment operation, and report processing, and is traceable;
  • Third level permission management;Multiple security measures;
  • Sterilization process: fabrics, instruments, liquids BD、 Pressure holding test, customizing multiple programs;

Main technical parameters

Design pressure

-0.1~0.3Mpa

Design temperature

150℃

Working pressure

0.245Mpa

Working Temperature

105~138℃

Working pressure

0.245Mpa

Working Temperature

105~138℃

Vacuum

-0.086Mpa

Temperature Equilibrium

<+2.0℃

Water Pressure

0.1~0.2Mpa

Compressed air pressure

0.4~0.7Mpa

External Steam Pressure

0.3~0.7Mpa

Power voltage

Three-phase five-wire AC 380V 50Hz
