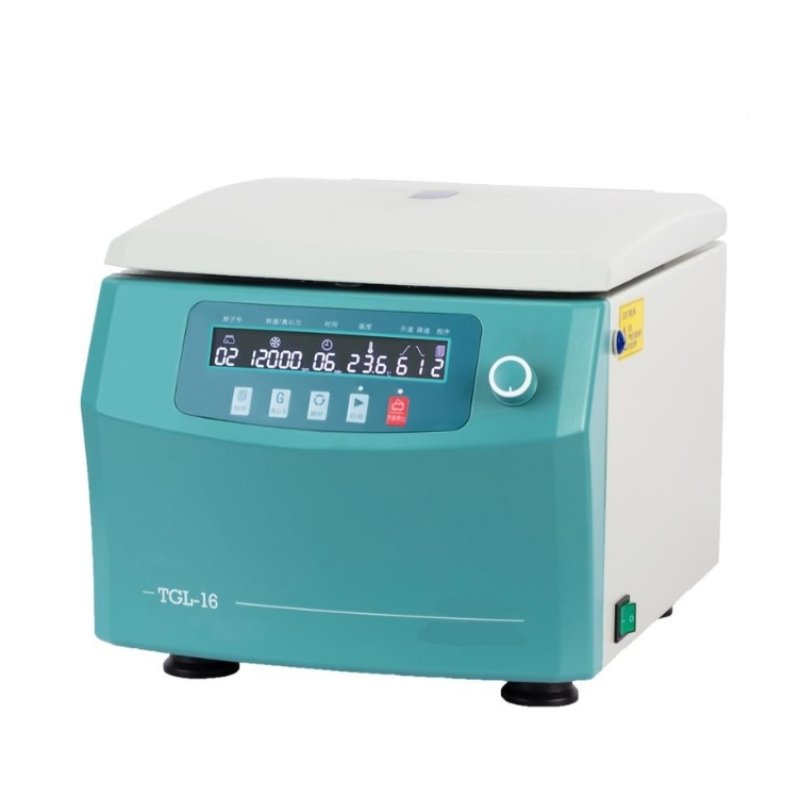

High Speed Centrifuge BO TGL-16 PCR

The TGL – 16 benchtop high – speed centrifuge, engineered for cell/bacteria separation in medical and biopharmaceutical labs, delivers 18,000 rpm (21,953×g RCF) with a 50ml×6 capacity.
Driven by a maintenance – free AC brushless motor with Hall speed sensing and microcomputer – controlled variable frequency technology, it features automatic rotor recognition and imbalance detection. Supporting 9 programmable protocols and 9 – stage acceleration/deceleration, it ensures precise and efficient processing for high – throughput workflows.
Safety – centered, the TGL – 16 includes automatic imbalance detection and a fault – diagnosis system that protects against overspeed, over – temperature, and door lock malfunctions. Operating at ≤60 dB (43×33×31 cm, 23 kg),

I. Basic Parameter Table

Maximum Centrifugal Force	21953xg
Typical Configuration	Angle Rotor Centrifuge	Instrument Function	Ordinary Centrifuge
Origin Category	Domestic	Instrument Type	Benchtop Centrifuge
Centrifugation Grade	Cell/Bacteria	Size	430330310mm
Maximum Speed	18000rpm	Maximum Capacity	50ml
Price Range	To be negotiated	Feature Parameter	High – speed
Application Field	Medical and Sanitary, Biological Industry, Pharmaceutical/Biopharmaceutical, Comprehensive

II. Detailed Parameter Table (Model: TGL – 16)

Maximum Speed	18000r/min	Control System	Variable – frequency Processor
Maximum Capacity	50ml×6 pieces	Drive System	AC Variable – frequency Motor
Maximum Relative Centrifugal Force	21953Xg	Power Supply	AC220V 50Hz
Timing Range	1s – 99min59s	Input Power	550W
Noise	≤ 60dB (A)	Size (Length * Width * Height)	43×33×31cm
Rotation Speed Accuracy	±10rpm	Net Weight	23kg

III. Product Features

Microcomputer variable – frequency control technology, with liquid crystal display;
Driven by an AC variable – frequency brushless motor, maintenance – free, equipped with a Hall speed measurement system;
Single – knob setting key for convenient and quick parameter setting;
Equipped with program quick – call buttons, 9 sets of commonly – used programs, 9 levels of acceleration and deceleration;
Full – automatic rotor program recognition and unbalance detection function;
The rotor is installed with an expansion – type structure, making rotor replacement easy and convenient;
Parameters (rpm/rcf) can be changed at any time during operation without stopping the machine;
Short Spin instantaneous centrifugation function, centrifugation can be performed by holding down [the corresponding key];
Micro – motor electronic door lock, press lightly to close the door cover quickly, safe and mute;
Constant – speed timing function: the countdown starts only after reaching the set speed;
With an automatic fault diagnosis system, providing multiple protections for overspeed, over – temperature, unbalance, electronic door cover, etc., to ensure the safe operation of the instrument.

dad3ae7f7c25ee0194b848fc3d32f534aa606f1ce6d63c979fce947c123d38ec4f1806be78c6e867_800_800_5

Click to enlarge

Categories: High Speed Centrifuge, Laboratory Equipment Tags: PRP Centrifuge Speed, Refrigerated Centrifuge for Laboratory, Table Top High Speed Refrigerated Centrifuge

Description
Reviews (0)

Description

Maximum Centrifugal Force	21953xg
Typical Configuration	Angle Rotor Centrifuge	Instrument Function	Ordinary Centrifuge
Origin Category	Domestic	Instrument Type	Benchtop Centrifuge
Centrifugation Grade	Cell/Bacteria	Size	430330310mm
Maximum Speed	18000rpm	Maximum Capacity	50ml
Price Range	To be negotiated	Feature Parameter	High – speed
Application Field	Medical and Sanitary, Biological Industry, Pharmaceutical/Biopharmaceutical, Comprehensive

Maximum Speed	18000r/min	Control System	Variable – frequency Processor
Maximum Capacity	50ml×6 pieces	Drive System	AC Variable – frequency Motor
Maximum Relative Centrifugal Force	21953Xg	Power Supply	AC220V 50Hz
Timing Range	1s – 99min59s	Input Power	550W
Noise	≤ 60dB (A)	Size (Length * Width * Height)	43×33×31cm
Rotation Speed Accuracy	±10rpm	Net Weight	23kg

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “High Speed Centrifuge BO TGL-16 PCR”

High Speed Centrifuge BO TGL-16 PCR

The TGL – 16 benchtop high – speed centrifuge, engineered for cell/bacteria separation in medical and biopharmaceutical labs, delivers 18,000 rpm (21,953×g RCF) with a 50ml×6 capacity.

Safety – centered, the TGL – 16 includes automatic imbalance detection and a fault – diagnosis system that protects against overspeed, over – temperature, and door lock malfunctions. Operating at ≤60 dB (43×33×31 cm, 23 kg),

I. Basic Parameter Table

Maximum Centrifugal Force

21953xg

Typical Configuration

Angle Rotor Centrifuge

Instrument Function

Ordinary Centrifuge

Origin Category

Domestic

Instrument Type

Benchtop Centrifuge

Centrifugation Grade

Cell/Bacteria

Size

430330310mm

Maximum Speed

18000rpm

Maximum Capacity

50ml

Price Range

To be negotiated

Feature Parameter

High – speed

Application Field

Medical and Sanitary, Biological Industry, Pharmaceutical/Biopharmaceutical, Comprehensive

II. Detailed Parameter Table (Model: TGL – 16)

Maximum Speed

18000r/min

Control System

Variable – frequency Processor

Maximum Capacity

50ml×6 pieces

Drive System

AC Variable – frequency Motor

Maximum Relative Centrifugal Force

21953Xg

Power Supply

AC220V 50Hz

Timing Range

1s – 99min59s

Input Power

550W

Noise

≤ 60dB (A)

Size (Length * Width * Height)

43×33×31cm

Rotation Speed Accuracy

±10rpm

Net Weight

23kg

III. Product Features

Microcomputer variable – frequency control technology, with liquid crystal display;

Driven by an AC variable – frequency brushless motor, maintenance – free, equipped with a Hall speed measurement system;

Single – knob setting key for convenient and quick parameter setting;

Equipped with program quick – call buttons, 9 sets of commonly – used programs, 9 levels of acceleration and deceleration;

Full – automatic rotor program recognition and unbalance detection function;

The rotor is installed with an expansion – type structure, making rotor replacement easy and convenient;

Parameters (rpm/rcf) can be changed at any time during operation without stopping the machine;

Short Spin instantaneous centrifugation function, centrifugation can be performed by holding down [the corresponding key];

Micro – motor electronic door lock, press lightly to close the door cover quickly, safe and mute;

Constant – speed timing function: the countdown starts only after reaching the set speed;

With an automatic fault diagnosis system, providing multiple protections for overspeed, over – temperature, unbalance, electronic door cover, etc., to ensure the safe operation of the instrument.
