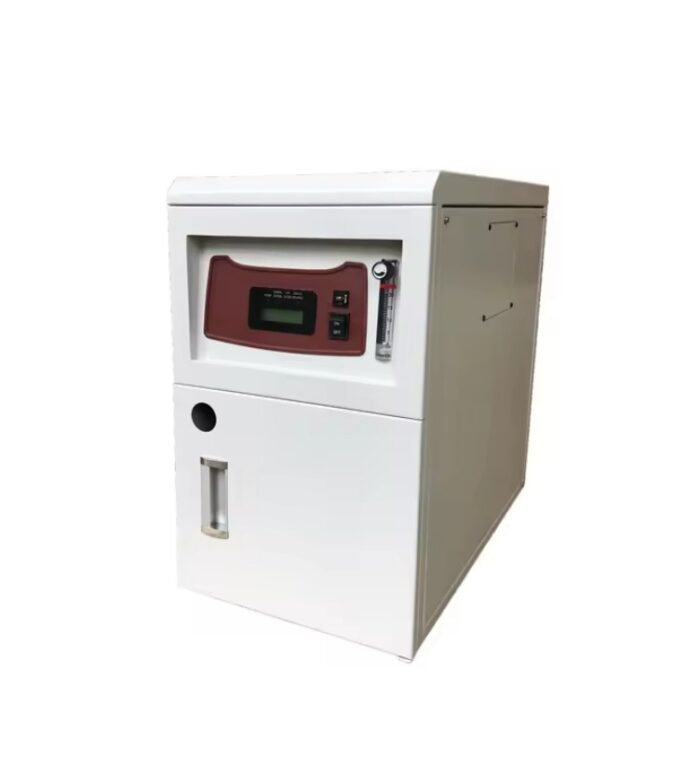

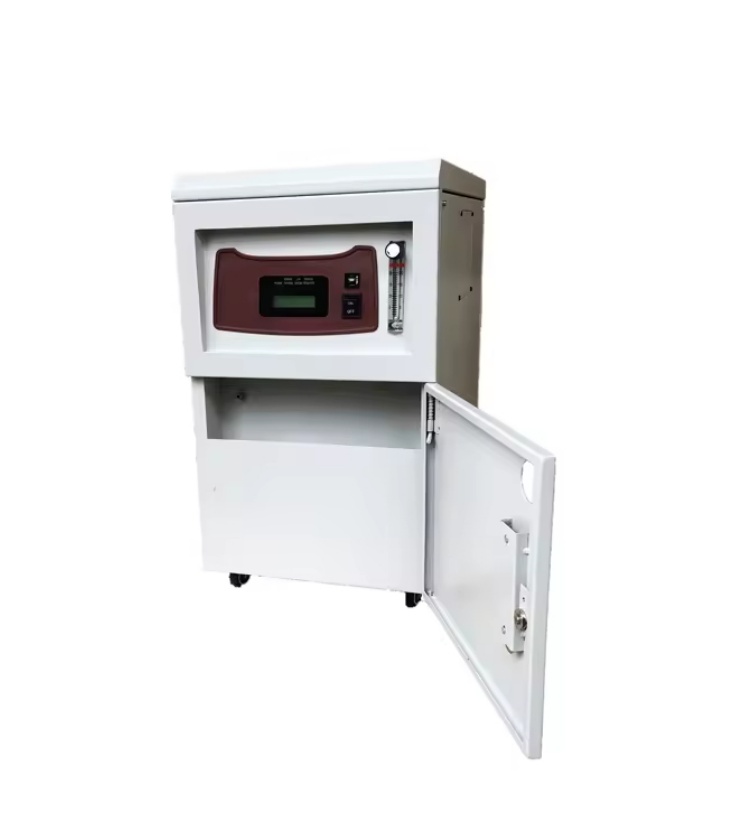

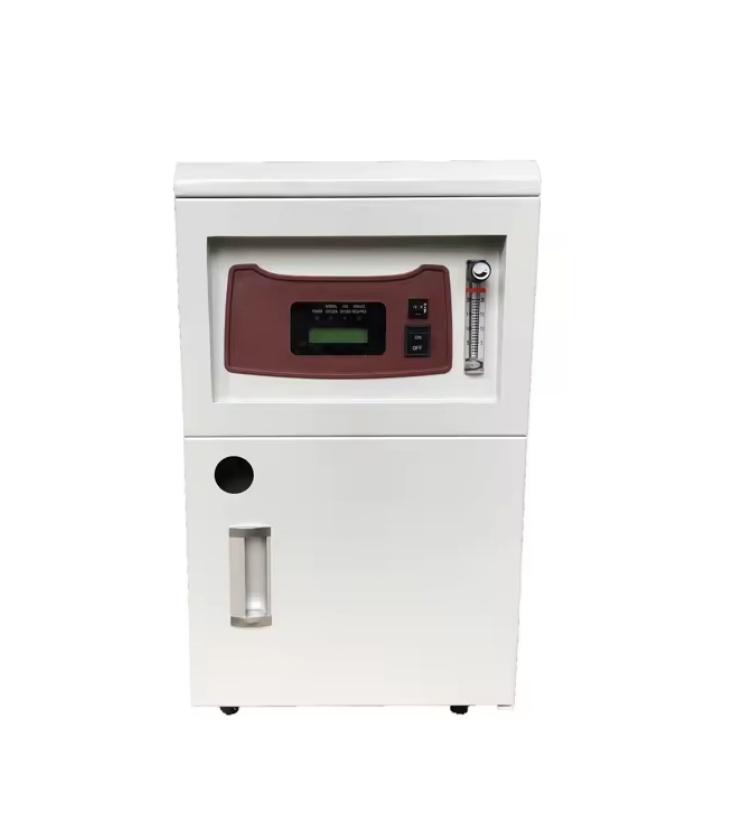

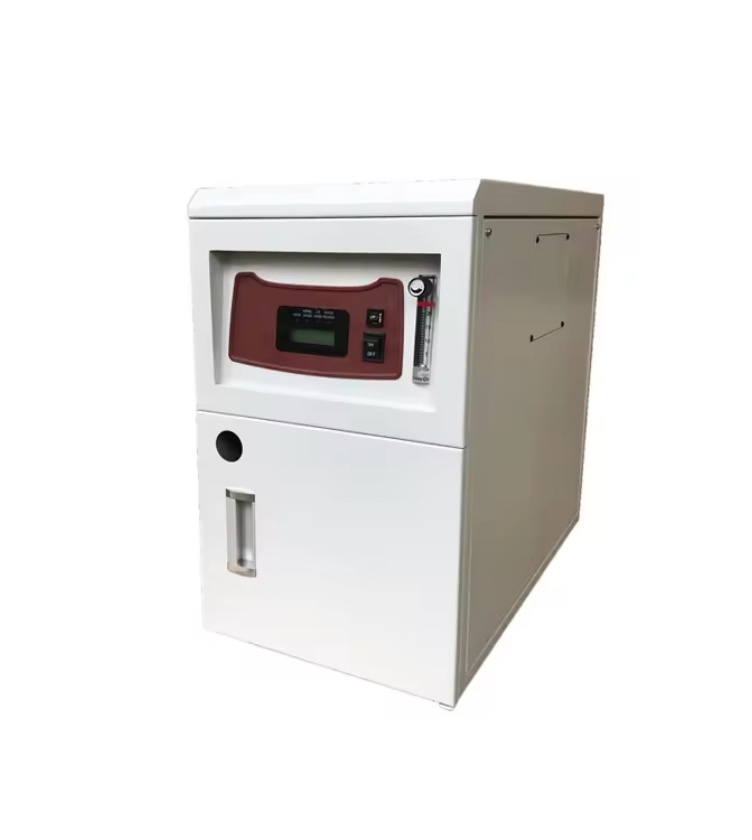

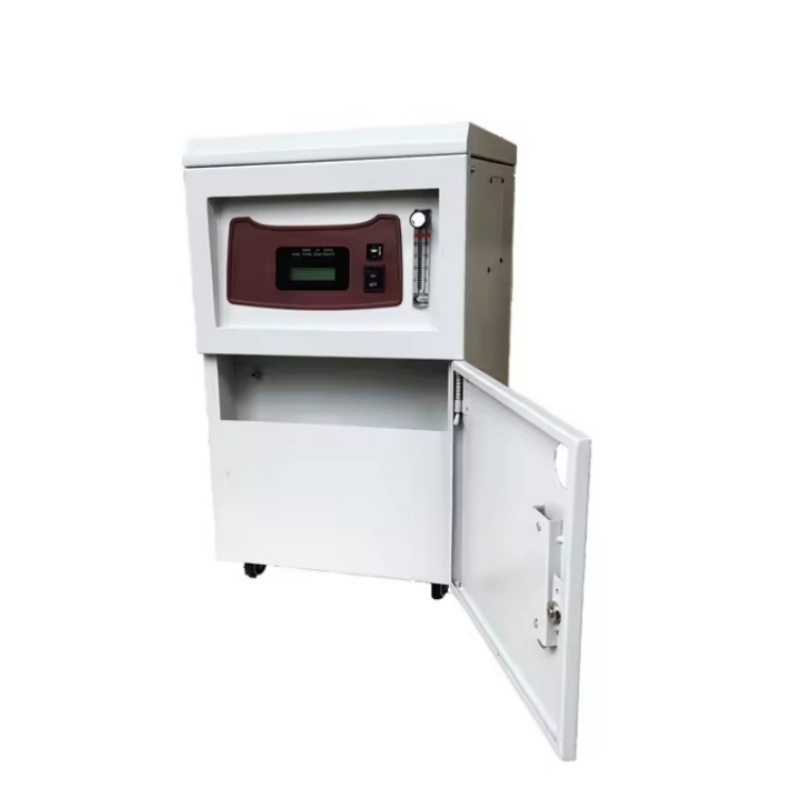

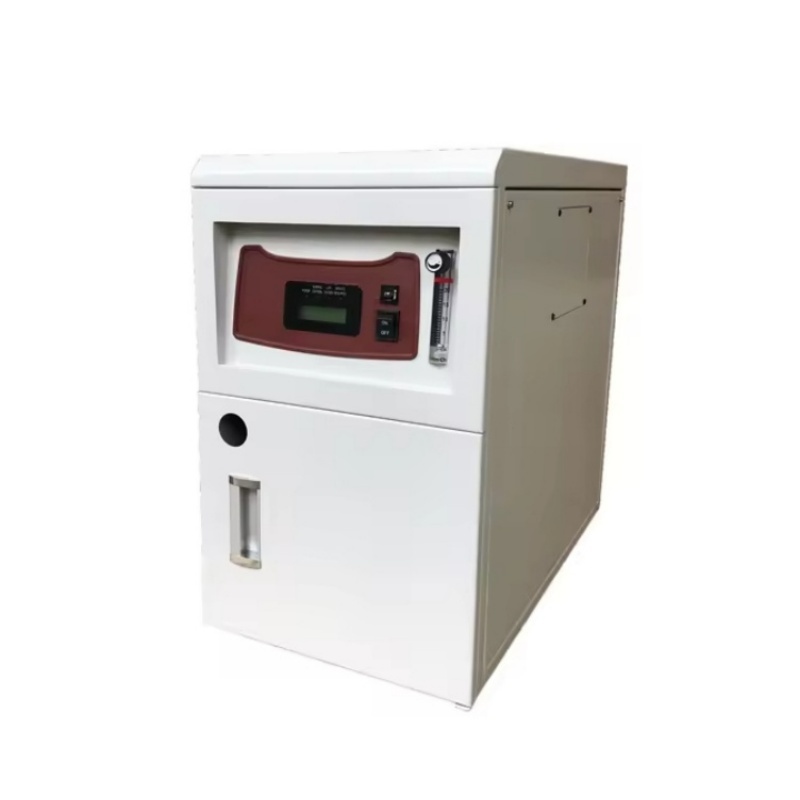

High flow 15/20L Oxygen Concentrator DM
This concentrator boasts a large LED screen, timing (working/accumulated), alarms (power, purity, pressure). 2-20LPM flow, 93%±3% purity, <1400W. Optional nebulizer/O₂ monitor.
With 2-20LPM flow, 93%±3% purity, 50-140Kpa pressure, it runs 5-40°C, <60dB. 60kg net, 75×39×61cm. Suits clinics/homes needing stable O₂.
Class II Type B, AC 220/110V. Features timing, alarms (power/fault), optional displays. 2-20LPM, 93%±3% purity. Safe, versatile for medical use.
Description
Technical Specifications
1.Large LED Screen
2.Timing Functions: present working time, accumulated working time.
3.Alarm Systems: Power failure alarm, Low purity, high/low pressure.
4.Optional Oxygen Monitor: oxygen purity display
Category | Details |
|---|---|
Oxygen flow | 2-20 LPM |
Oxygen purity | 93%±3% |
Functions | Timing accumulate, power off, compressor fault alarm |
Optional | Nebulizer, Oxygen alarm, Oxygen display, pressor fault alarm, double flow |
Power consumption | <1400 W |
Output pressure | 50-140Kpa /7-20Psi |
Operation noise(dB) | < 60dB (A) |
Operating temp | 5℃-40℃ |
Net weight | 132 lbs (60 kg) |
Gross weight | 154 lbs (70 kg) |
Dimensions (L×W×H) | 75 × 39 × 61 cm |
Carton size (L×W×H) | 84 × 46 × 76 cm |
Equip. Classification | Class II Type B |
Class II Type B | AC 220V±22V/50Hz or 110V±10V /60Hz |
| Oxygen flow: | 2-20 LPM |
| Oxygen purity: | 93%±3% |
| Functions: | Timing accumulate, power off, compressor fault alarm |
| Optional: | Nebulizer, Oxygen alarm, Oxygen display, pressor fault alarm, double flow |
| Power consumption: | <1400 W |
| Output pressure: | 50-140Kpa /7-20Psi |
| Operation noise(dB): | ＜60dB（A） |
| Operating temp: | 5°C–40°C |
| Net weight: | 132 lbs (60 kg) |
| Gross weight: | 154 lbs (70 kg) |
| Dimensions (L×W×H): | 75 x 39 x 61 cm |
| Carton size (L×W×H): | 84 x 46 x 76 cm |
| Equip. Classification: | Class II Type B |
| Power Supply: | AC 220V±22V/50Hz or 110V±10V /60Hz |
