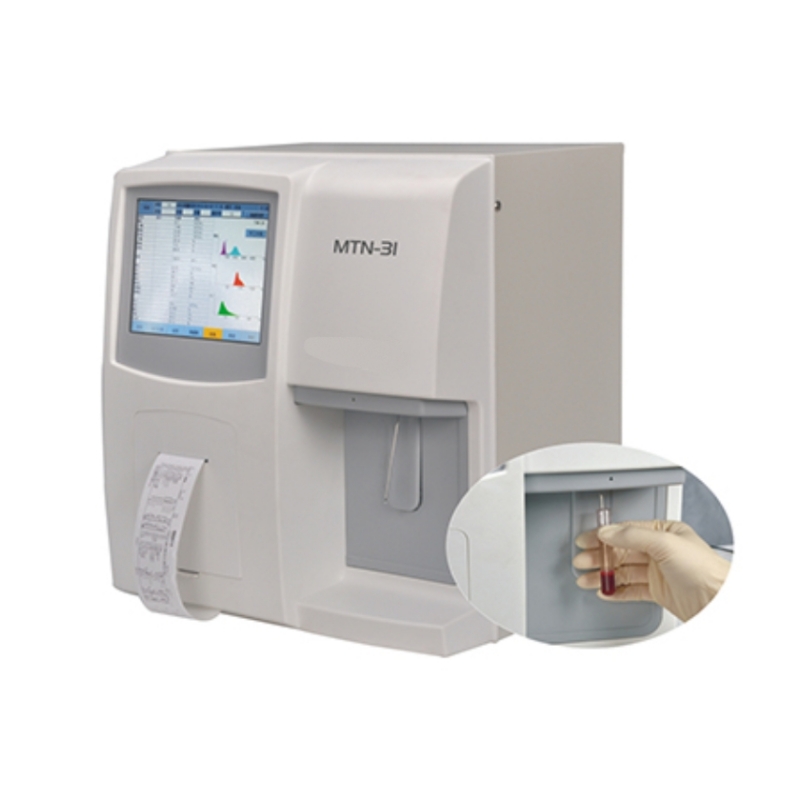

Hematology Analyzer MTN 3I

• 8.4 "touch screen LCD display, displaying all parameters and three histograms on the same screen without the need for page flipping.

• Full Chinese color operation interface, no need for external computer, graphical button operation, supports mouse and keyboard.

• Multiple online fast Chinese input and output of hospital and patient information.

• Built in high-speed thermal printer, with multiple Chinese report formats for measurement results to choose from.

• Can be connected to an external workstation to print standard Chinese reports

Technical parameter

• Complete machine function：Fully automatic white blood cell three part grouping, with 23 parameters (including three color histograms of WBC, RBC, and PLT).
• Working principle：Electrical impedance method for counting and cyanide free (environmentally friendly) colorimetric method for measuring hemoglobin.
• Test parameters：WBC，LYM#，MID#，GRAN#，LYM%，MID%，GRAN%，RBC，HGB，HCT，MCV，MCH，MCHC，RDW-SD，RDW-CV，PLT，MPV，PDW，PCT，P-LCR and WBC、 RBC、PLT three histograms
• Injection method：There are three options available: venous blood, anticoagulant peripheral blood, and  pre diluted peripheral blood.
• Detection speed：≥70 tests/hour, can be continuously turned on for 24 hours.
• Sample usage：Anticoagulated whole blood (venous blood) ≤ 9.6 μ l, anticoagulated peripheral blood ≤ 9.6 μ l, pre diluted peripheral blood ≤ 20 μ l.
• Working mode：Double counting cell, fully automatic injection, automatic measurement throughout the   detection process, and equipped with a built-in diluter, no need for external dilution. The host automatically adds hemolytic agent and performs secondary dilution automatically
• Drainage method：Various intelligent automatic blockage removal functions such as soaking, forward and reverse flushing, real-time monitoring, etc., with incomplete blockage monitoring function.
• Alarm function：Fully automatic system diagnosis, with self checking function, fault alarm prompt, insufficient reagent remaining and other alarm prompts.
• Automatic maintenance：The instrument automatically performs maintenance, cleaning, and upkeep. After turning on and off, the cleaning solution automatically soaks the pipeline  to reduce the chance of blockage.
• Result storage：Automatically store all parameters and three histograms of over 100000 samples, and can be infinitely expanded via USB.
• Calibration method：The three measurement modes have independent automatic calibration and manual  calibration, supporting national standard calibration materials and quality control material control.
