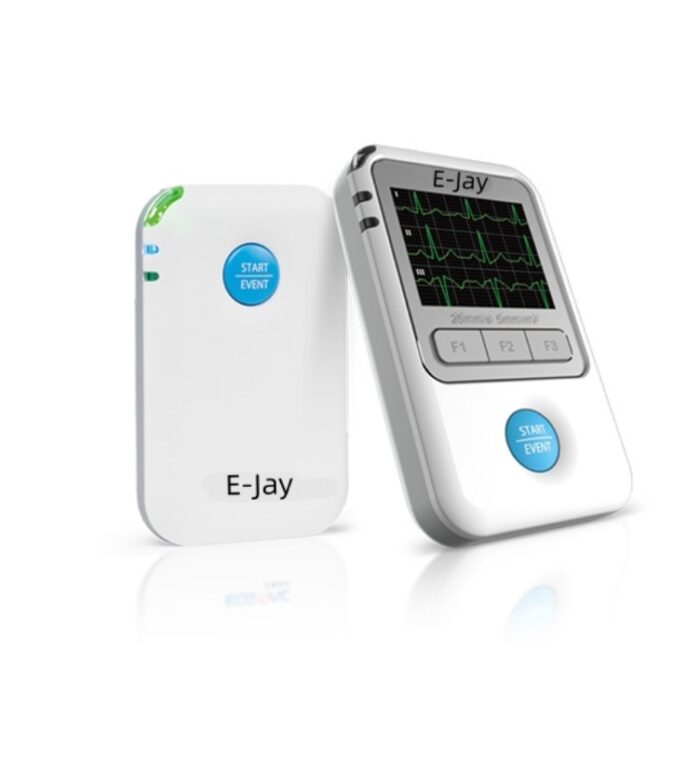

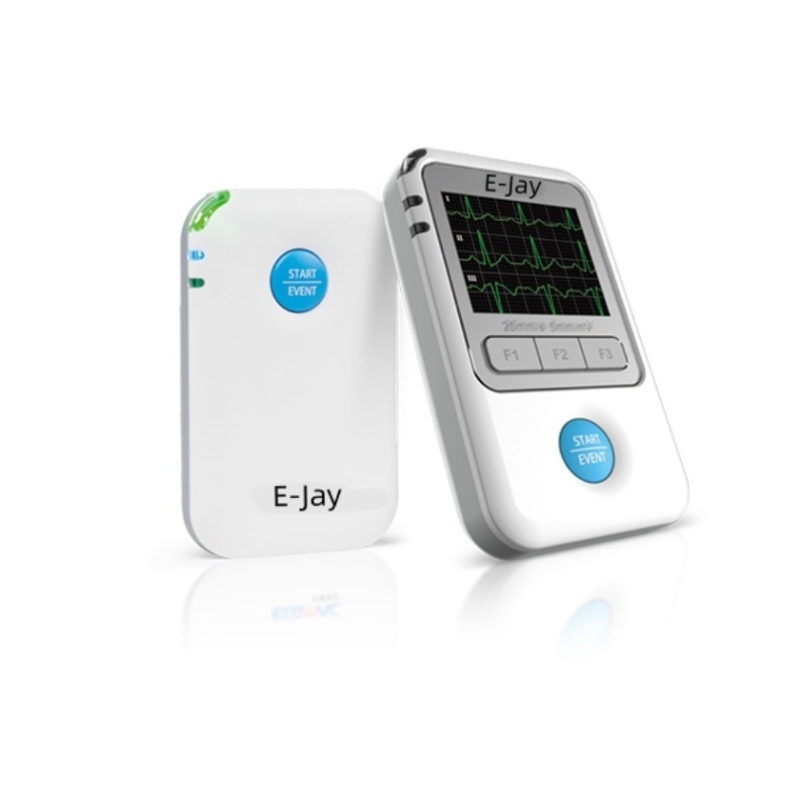

Holter ECG Machine HQXY H12B-plus H12B
Color Touchscreen with Adjustable Stand, Easy to Operate
10.1-inch capacitive touchscreen: Features an ECG standard grid background display for clear waveform visualization and responsive operation.
Description

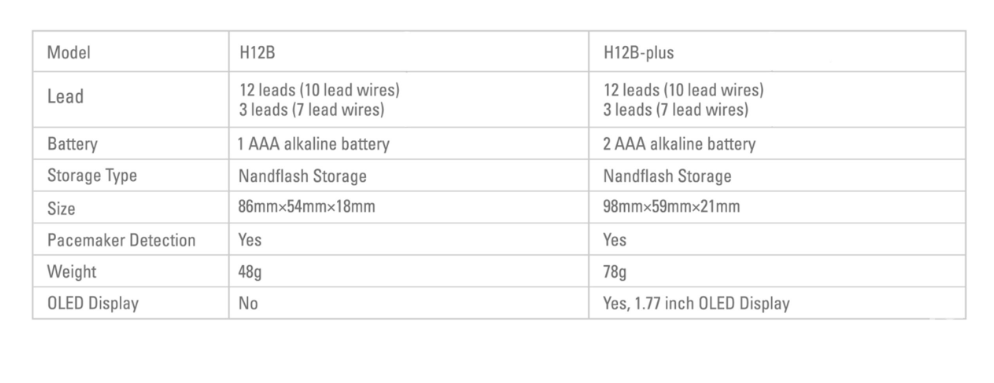

Technical Specifications

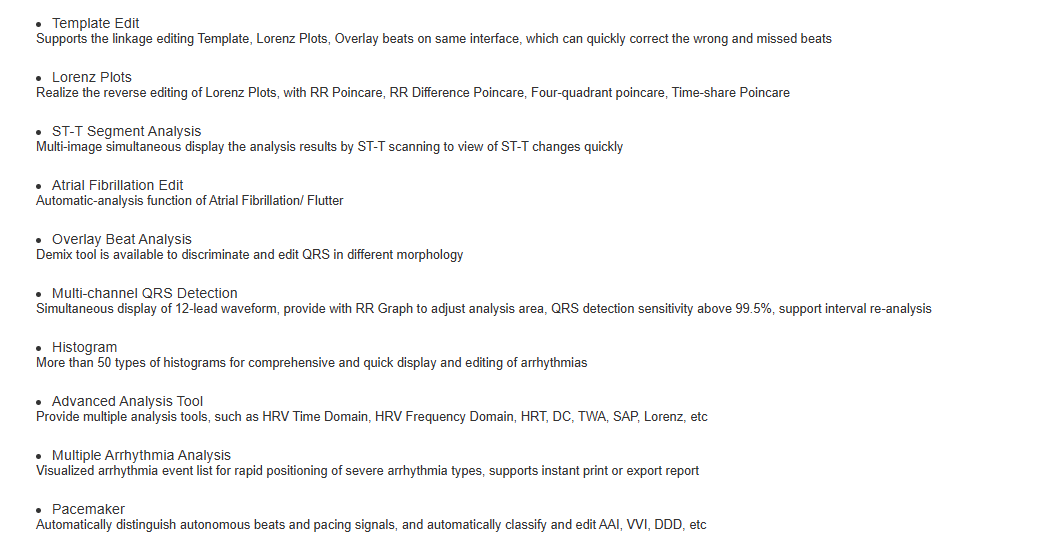

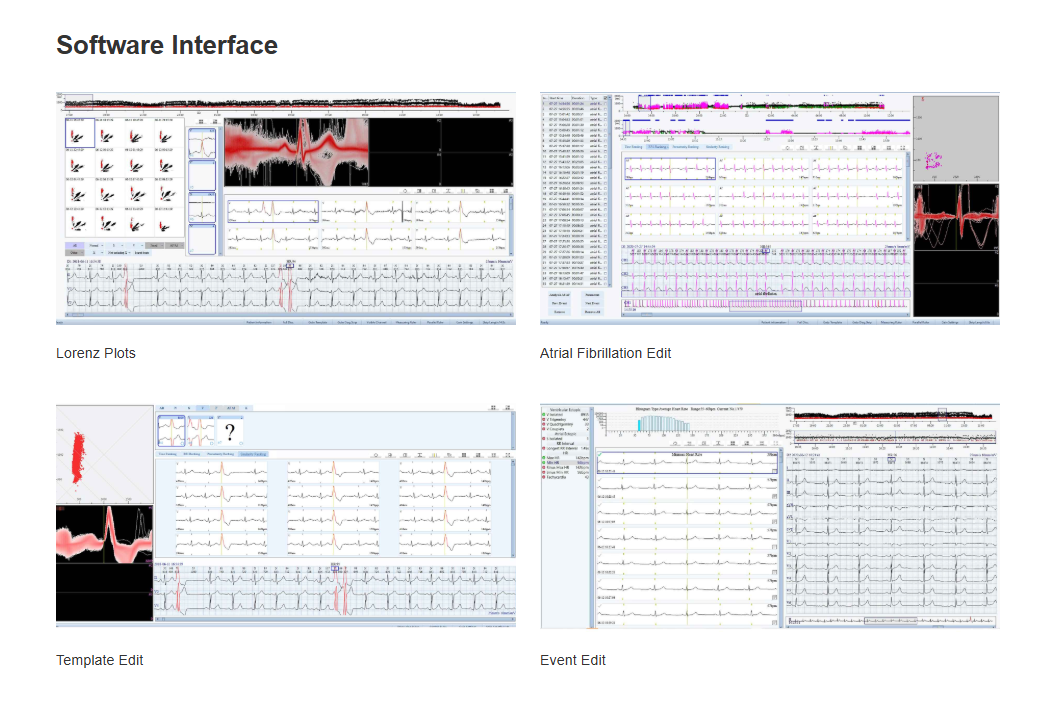

- Template Edit：Supports the linkage editing Template, Lorenz Plots, Overlay beats on same interface, which can quickly correct the wrong and missed beats
- Lorenz Plots：Realize the reverse editing of Lorenz Plots, with RR Poincare, RR Difference Poincare, Four-quadrant poincare, Time-share Poincare
- ST-T Segment Analysis：Multi-image simultaneous display the analysis results by ST-T scanning to view of ST-T changes quickly
- Atrial Fibrillation Edit：Automatic-analysis function of Atrial Fibrillation/ Flutter
- Overlay Beat Analysis：Demix tool is available to discriminate and edit QRS in different morphology
- Multi-channel QRS Detection Simultaneous display of 12-lead waveform, provide with RR Graph to adjust analysis area, QRS detection sensitivity above 99.5%, support interval re-analysis
- Histogram：More than 50 types of histograms for comprehensive and quick display and editing of arrhythmias
- Advanced Analysis Tool：Provide multiple analysis tools, such as HRV Time Domain, HRV Frequency Domain, HRT, DC, TWA, SAP, Lorenz, etc
- Multiple Arrhythmia Analysis：Visualized arrhythmia event list for rapid positioning of severe arrhythmia types, supports instant print or export report
- Pacemaker：Automatically distinguish autonomous beats and pacing signals, and automatically classify and edit AAI, VVI, DDD, etc
Feature

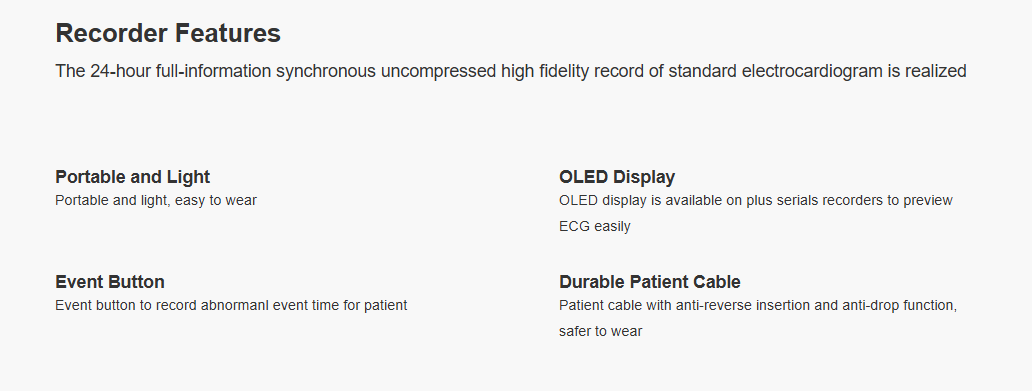

- Recorder Features：The 24-hour full-information synchronous uncompressed high fidelity record of standard electrocardiogram is realized

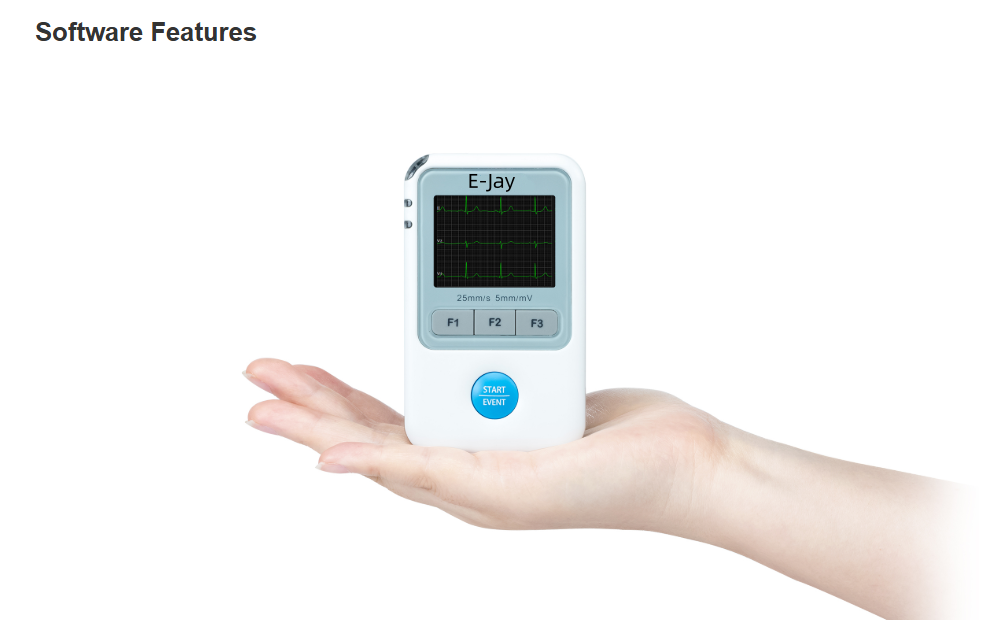

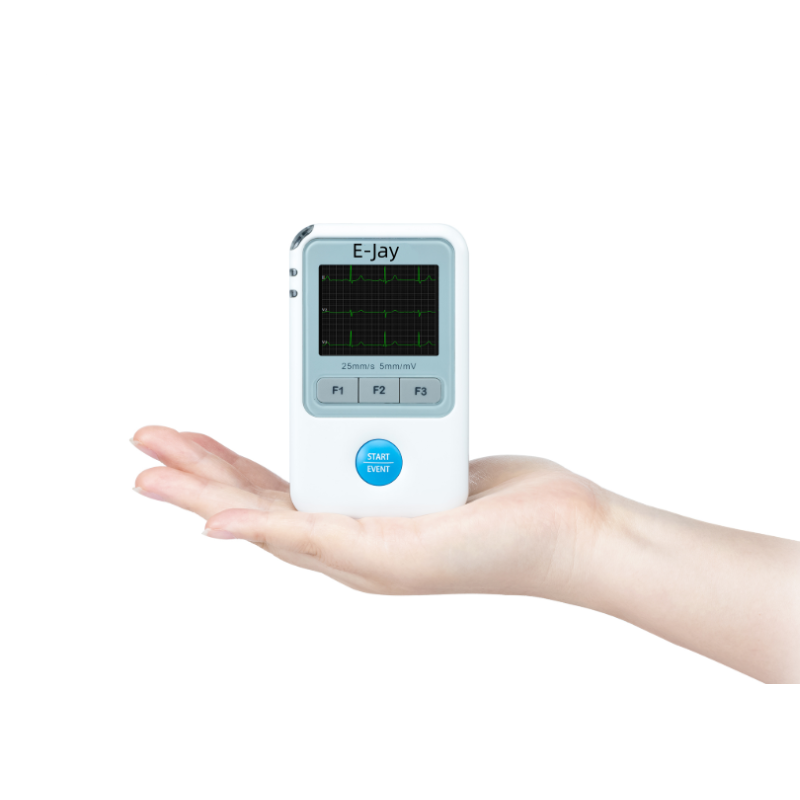

- Portable and Light Portable and light, easy to wear
- Event Button：Event button to record abnormal event time for patient
- OLED Display：OLED display is available on plus serials recorders to preview ECG easily
- Durable Patient Cable：Patient cable with anti-reverse insertion and anti-drop function, safer to wear
