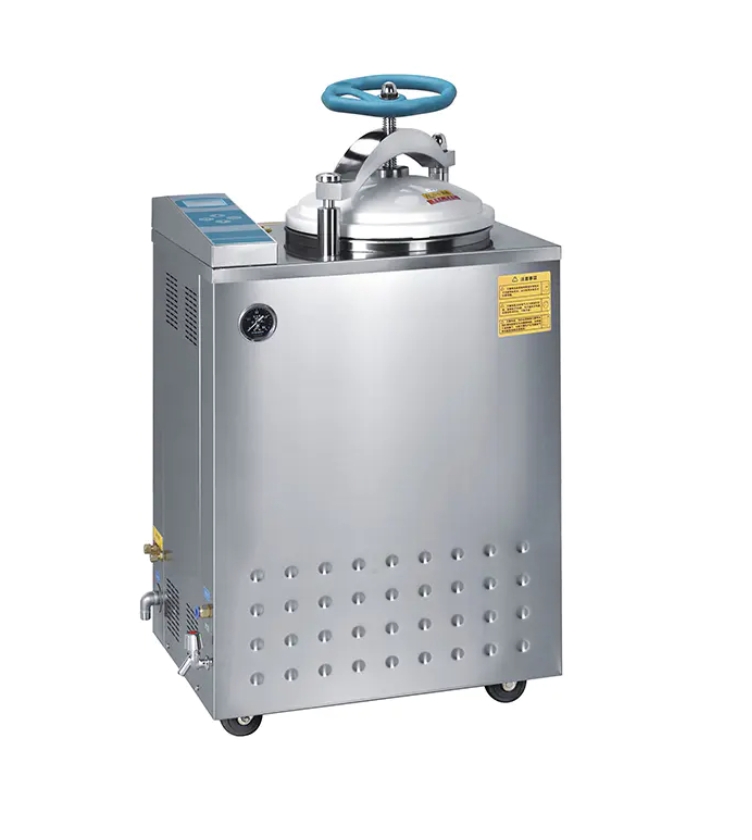

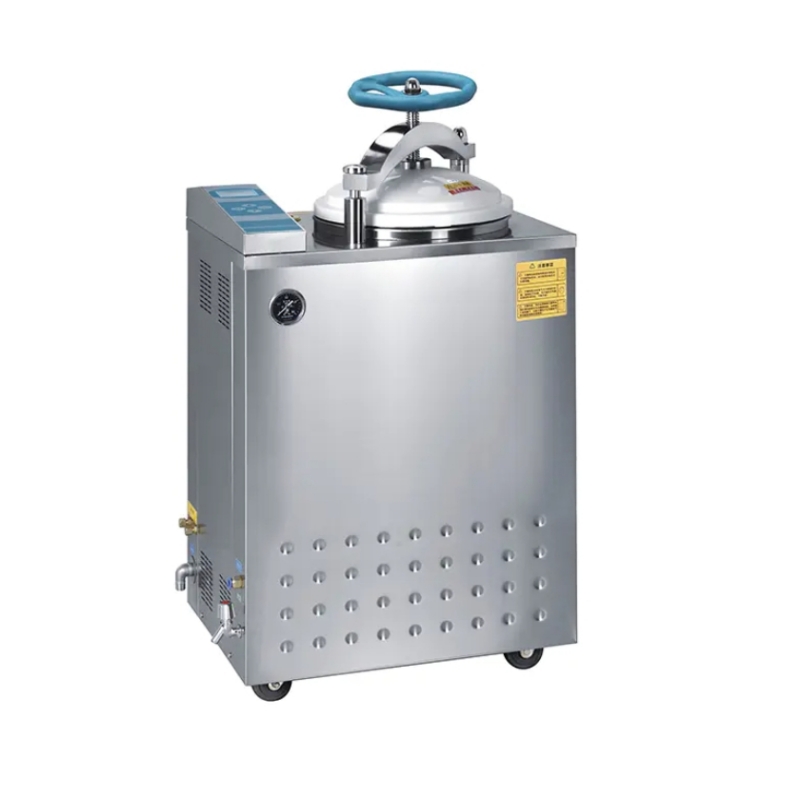

Fully Automatic Circulation Vertical Pressure Steam Sterilizer

Click to enlarge

Fully Automatic Circulation Vertical Pressure Steam Sterilizer BJ

Performance Highlights: Internal steam/water circulation with exhaust cooling (no external steam discharge, keeping the environment clean). Self-inflating seal ensures tightness, while heat uniformity ≤±1℃ guarantees reliable sterilization. Works at 134℃ (adjustable 0~134℃) with 0.22MPa working pressure (max 0.23MPa), timer range 0-99min/0-99h59min. Optional drying system available.
Models & Specifications: Available in 35L (LS-35HG) to 100L (LS-100HG) capacities. Power ranges 2.5KW (220V) to 3×1.5KW (220V). Overall dimensions 470×450×1020mm to 750×510×1250mm, net weight 85~122Kg, suitable for small to medium-sized sterilization needs in clean environments.

Categories: Sterilizer (Autoclave), Vertical Type Tags: Fully Automatic Pressure Steam Sterilizer, Vertical Pressure Steam Sterilizer

Description
Reviews (0)

Description

● Fully stainless steel structure.
● Hand wheel type of quick-open door structure.
● Door safety lock system.
● Automatically controlled by computer.
● LCD display of working status, touch type key.
● Over temperature & over pressure auto-protection.
● The internal steam/water circulation system is equipped with an exhaust cooling system, which avoids the generation of aerosols and does not discharge steam to the outside. Therefore, the working environment is clean and dry.
● Self-inflating type seal.
● Safe protection of water lacking.
● Automatically shut off with a beep reminder after sterilization.
● With two stainless steel sterilizing baskets.
● A high-efficiency filter is added to the exhaust to ensure the safety of the environment and operators.
● Optional drying system.

MODEL/Technical Data	LS-35HG	LS-50HG	LS-75HG	LS-100HG
Chamber volume	35L	50L	75L	100L
Chamber volume	Φ318×450mm	Φ340×550mm	Φ400×600mm	Φ440×650mm
Working pressure	0.22Mpa
Working temperature	134℃
Max. working pressure	0.23Mpa
Heat average	≤±1℃
Timer range	0-99min/0-99hour59min
Temperature adjust range	0-134℃
Power	1×2.5KW/AC220V. 50HZ	2×1.5KW/AC220V 50HZ	3×1.5KW/AC220V 50HZ
Overall dimension(mm）	470×450×1020	710×465×1150	750×510×1250	750×510×1250
Transport dimension（mm）	710×490×1130	740×490×1130	780×600×1380	780×600×1380
G.W/ N.W	104Kg/85Kg	122Kg/99Kg	146Kg/120Kg	148Kg/122Kg
