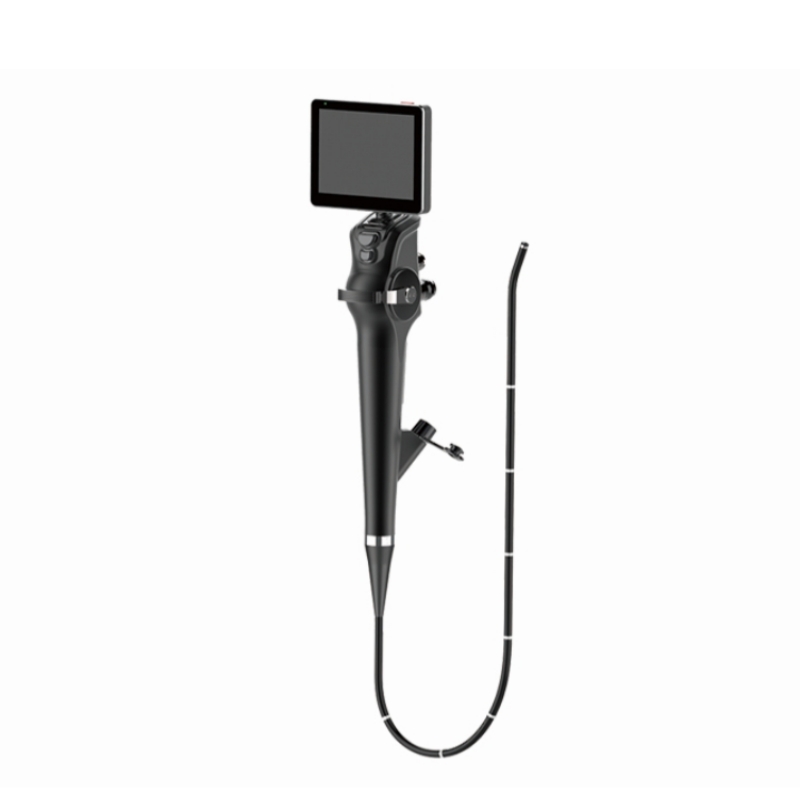

Flexible Fiber Laryngoscope YL 05-F（5.2）

• Functions: Photo, video, sputum suction, drug administration, biopsy.
• Special Applications: For positioning inspection of double-lumen bronchial catheters; Replaces fiberoptic bronchoscopes for bronchial blocker insertion & positioning; Enables visual transnasal tracheal intubation (no laryngoscope/intubation forceps required); Serves as a “quick-solve” tool for difficult airway intubation, suitable for all types of difficult airway intubations.
• Display & Accessories: Compatible with an 8.0-inch display (large, reliable view).

Main Parameters

• Insertion Tube Outer Diameter: 5.2mm; Working Channel: 2.6mm
• Working Length: 650mm
• Bending Angle: U160°/ D130°
• Field of View: 100°
• Depth of Field: 3-200mm

Component Features

• Display Screen：Front/back/left/right rotation angle ≥180°; Imported full-view high - definition display; With USB interface and HDMI video output interface; Connecting to a large screen expands the field of view.
• Camera System：One-key photo taking, long-press video recording; Convenient for reference and teaching.
• Angulation Control：Flexible control of up-down angles for precise positioning.
• Scope Body：1:1 coaxial torque performance design for simpler and smoother operation.

Scope of Application

• Anesthesiology Department, ICU (Intensive Care Unit), Emergency Department, Respiratory Department, Otorhinolaryngology Department
