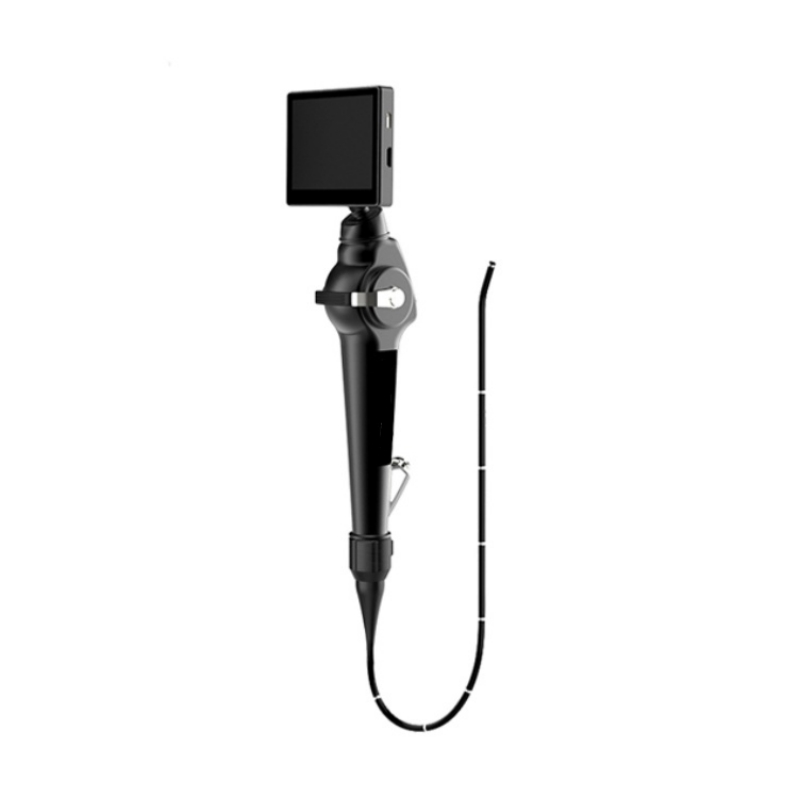

Flexible Fiber Laryngoscope YL

Features

• Functions: Capable of taking photos, recording videos, suctioning sputum, and administering medication.

• Special Applications: Can be used for the positioning inspection of double-lumen bronchial catheters; Can replace fiberoptic bronchoscopes for the insertion and positioning of bronchial blockers; Supports visual transnasal tracheal intubation, operable without laryngoscopes and intubation forceps; Serves as a “quick-solve” intubation tool for difficult airways, applicable to all types of difficult airway intubation scenarios.

• Display and Accessories: Compatible with 10.1-inch/13.3-inch displays for clearer large-screen presentation. Trolley selection is supported.

Key Parameters

• Outer Diameter of Insertion Tube: 2.8mm

• Working Length: 600mm

• Bending Angle: U160°/ D130°

• Field of View: 100°

• Depth of Field: 3-100mm

Display Screen

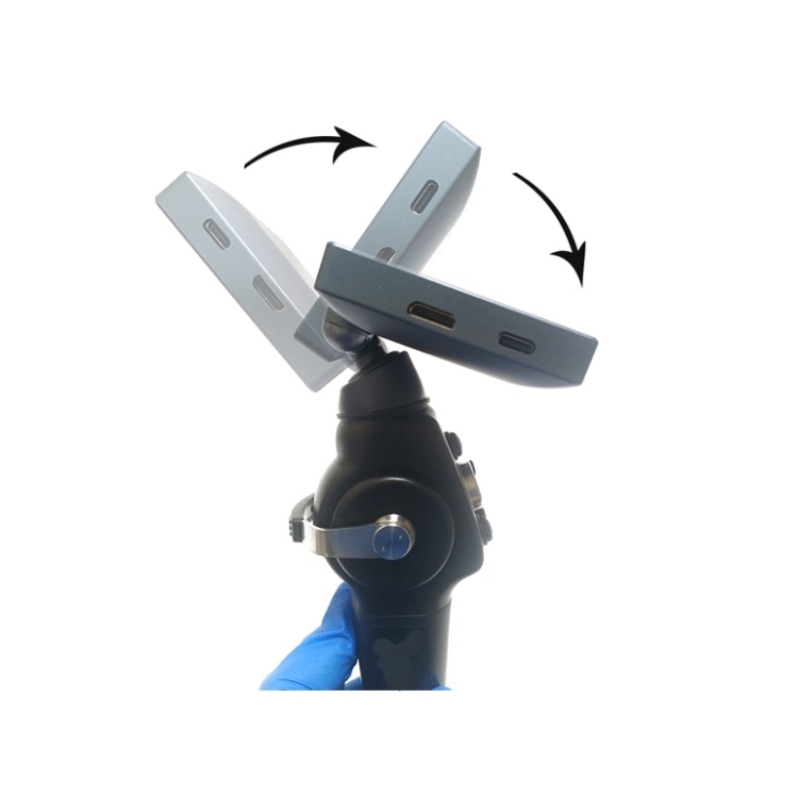

• Front/Back/Left/Right Rotation Angle: ≥180°

• Screen: Adopts a 4-inch high-definition touch-screen.

• Interfaces: Equipped with USB interface and HDMI video output interface; Connecting to a large screen can expand the field of view.

Insertion Part Knob

• Configuration 1: Up-down bidirectional angle adjustable.

• Configuration 2: Up-down, left-right four-directional angle adjustable (Up-down angle: 160°/130°; Left-right angle: 120° each).

Insertion Part

• Outer Diameters: 2.8mm/3.2mm/3.8mm/4.2mm/4.8mm/5.2mm/5.8mm

• Characteristics: Anti-kinking, easy to bend, durable and smooth.

Handle

• Design: Uses a concave-convex line anti-slip design to improve holding comfort.

• Material: Special medical material, highly corrosion-resistant, and the surface texture is easy to clean.

Working Channel

• Inner Diameters: 1.2mm/1.5mm/1.8mm/2.2mm/2.6mm/3.0mm

• Selectable Models

Scope of Application

Anesthesiology Department, ICU (Intensive Care Unit), Emergency Department, Respiratory Department, Otorhinolaryngology Department (ENT Department)
