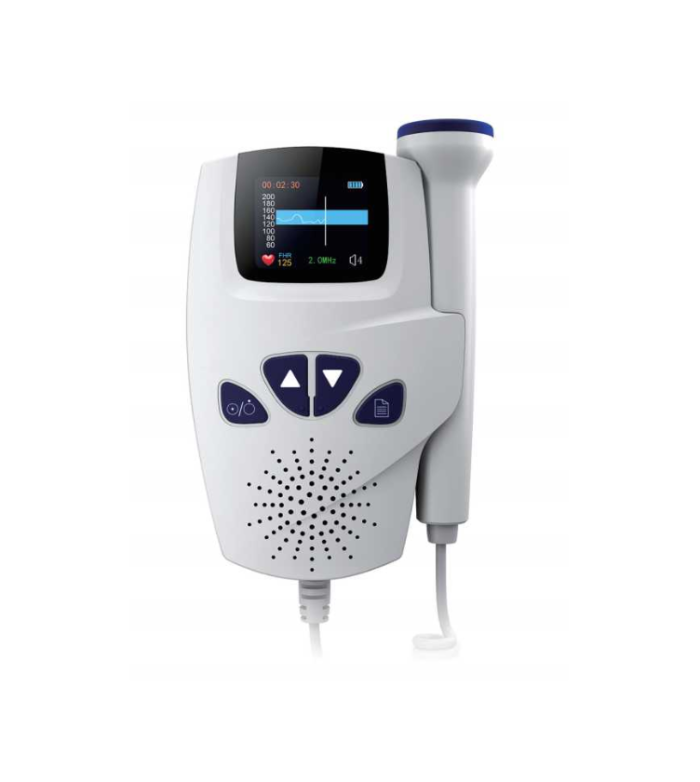

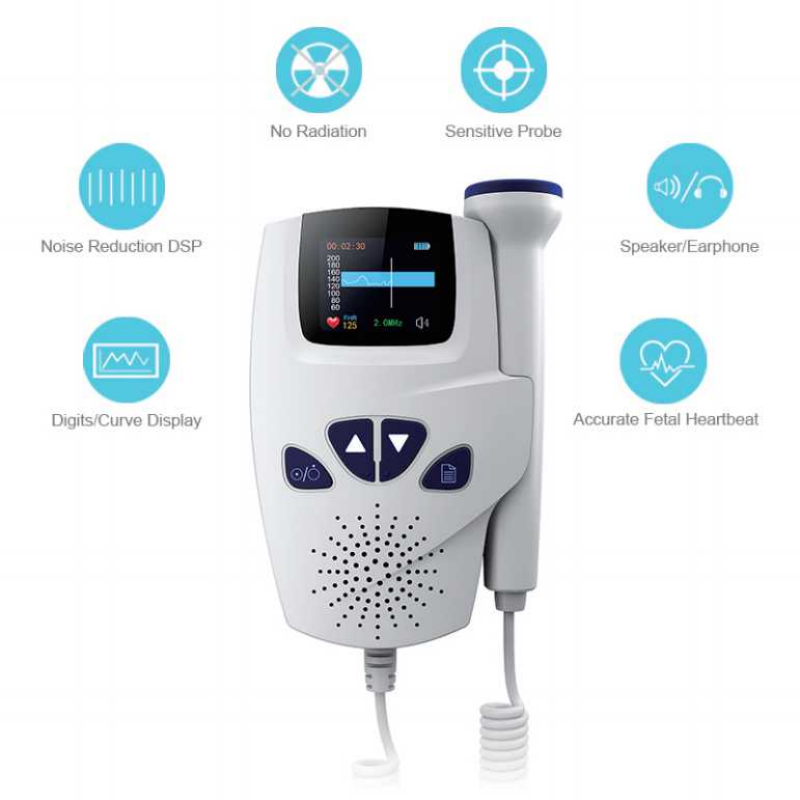

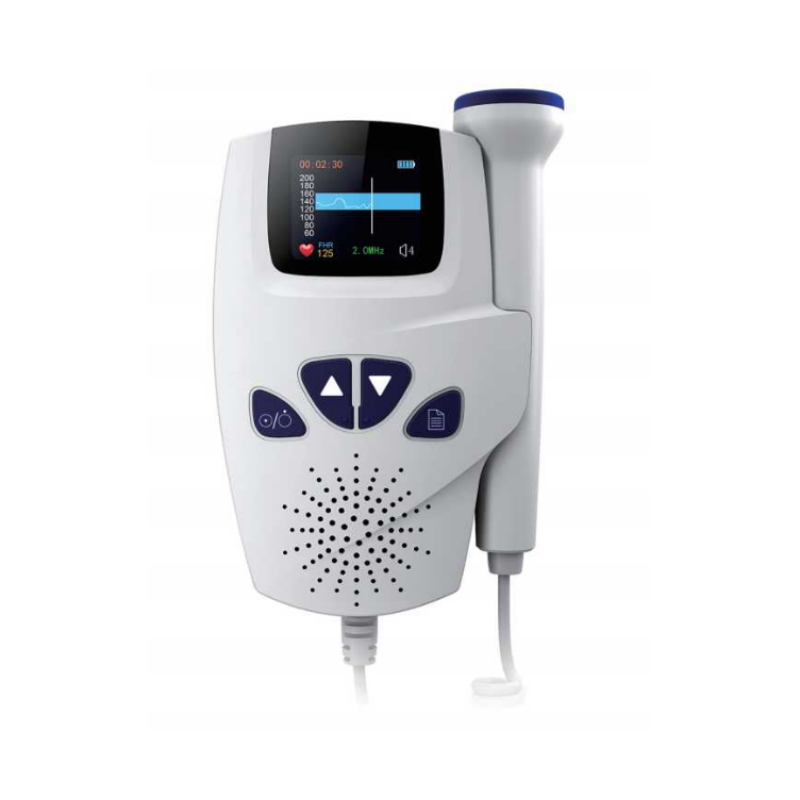

Fetal Doppler AKR AF-706

Models & Display：AF-703/AF-706 with 1.77″ Color TFT screen.
FHR Monitoring：Sensitivity ≥90db, range 50–210BPM (±2BPM accuracy).
Certifications：CE/CFDA/ISO13485/ISO10993/IEC60601, meeting global regulatory requirements.

Description

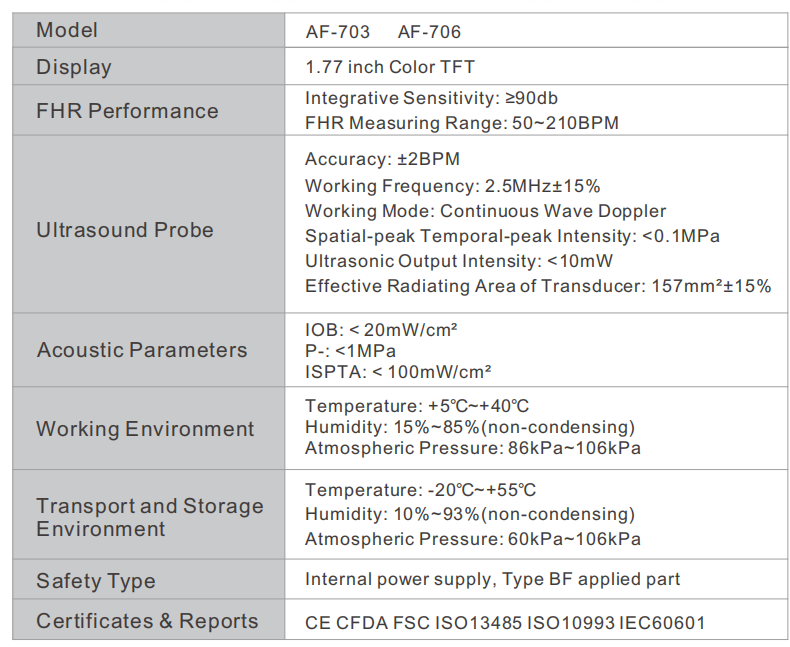

Category	Details
Model	AF-703 AF-706
Display	1.77 inch Color TFT
FHR Performance	Integrative Sensitivity: ≥90db FHR Measuring Range:50~210BPM
Ultrasound Probe	Accuracy:+2BPMWorking Frequency:2.5MHz+15% Working Mode: Continuous Wave Doppler Spatial-peak Temporal-peakIntensity:<0.1MPa Ultrasonic Output Intensity:<10mW Effective Radiating Area of Transducer:157mm2+15%
Acoustic Parameters	10B:<20mW/cm2 P-:<1MPa ISPTA:<100mW/cm2
Working Environment	Temperature:+5℃C~+40℃ Humidity:15%~85%(non-condensing) AtmosphericPressure:86kPa~106kPa
Transport and Storage Environment	Temperature:-20C-+55°C Humidity:10%~93%(non-condensing)A tmospheric Pressure:60kPa~106kPa
Safety Type	Internal power supply, Type BF applied part
Certificates & Reports	CE CFDA FSCI SO13485 1S010993 1EC60601
