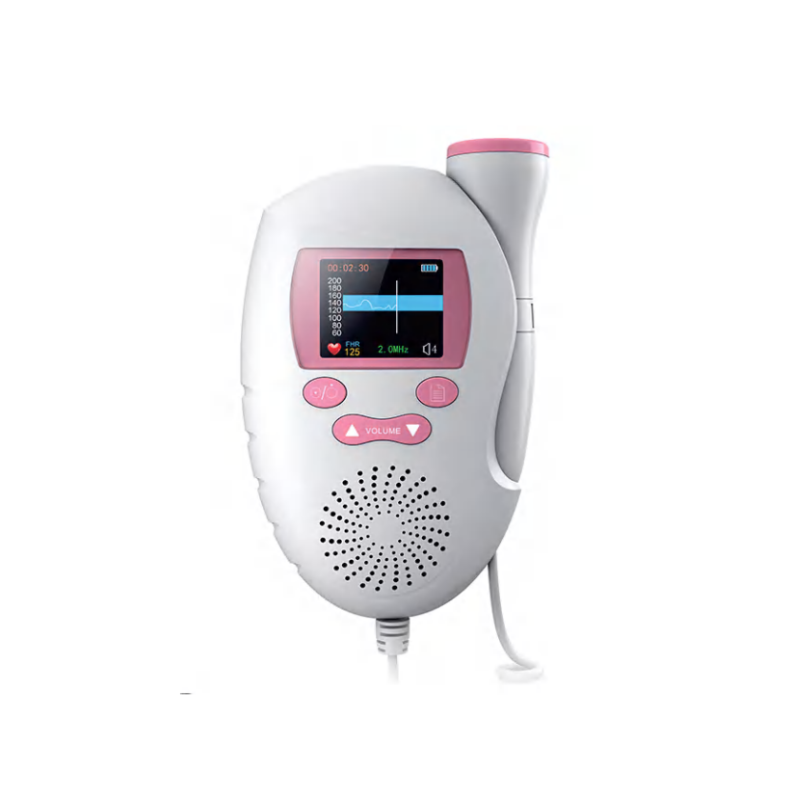

Fetal Doppler AKR AF-703
Category | Details |
|---|---|
Model | AF-703 |
Display | 1.77 inch Color TFT |
FHR Performance | Integrative Sensitivity: ≥90db FHR Measuring Range: 50~210BPM |
Ultrasound Probe | Accuracy: ±2BPM Working Frequency: 2.5MHz±15% Working Mode: Continuous Wave Doppler Spatial-peak Temporal-peak Intensity: <0.1MPa Ultrasonic Output Intensity: <10mW Effective Radiating Area of Transducer: 157mm²±15% |
Acoustic Parameters | IOB: < 20mW/cm² P-: <1MPa ISPTA: < 100mW/cm² |
Working Environment | Temperature: +5℃~+40℃ Humidity: 15%~85%(non-condensing) Atmospheric Pressure: 86kPa~106kPa |
Transport and Storage Environment | Temperature: -20℃~+55℃ Humidity: 10%~93%(non-condensing) Atmospheric Pressure: 60kPa~106kPa |
Safety Type | Internal power supply, Type BF applied part |
Certificates & Reports | CE CFDA FSC ISO13485 ISO10993 IEC60601 |
