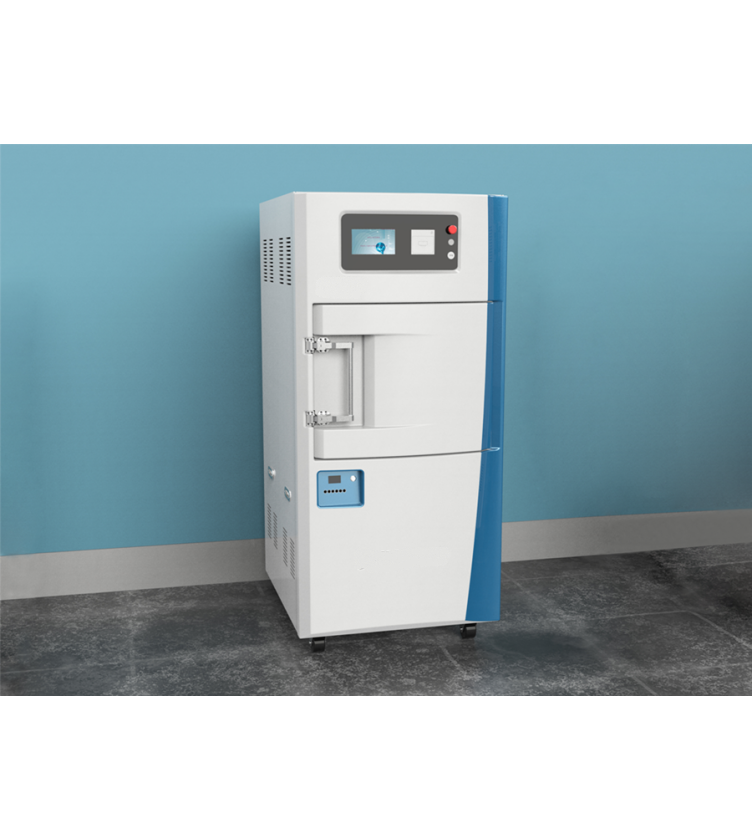

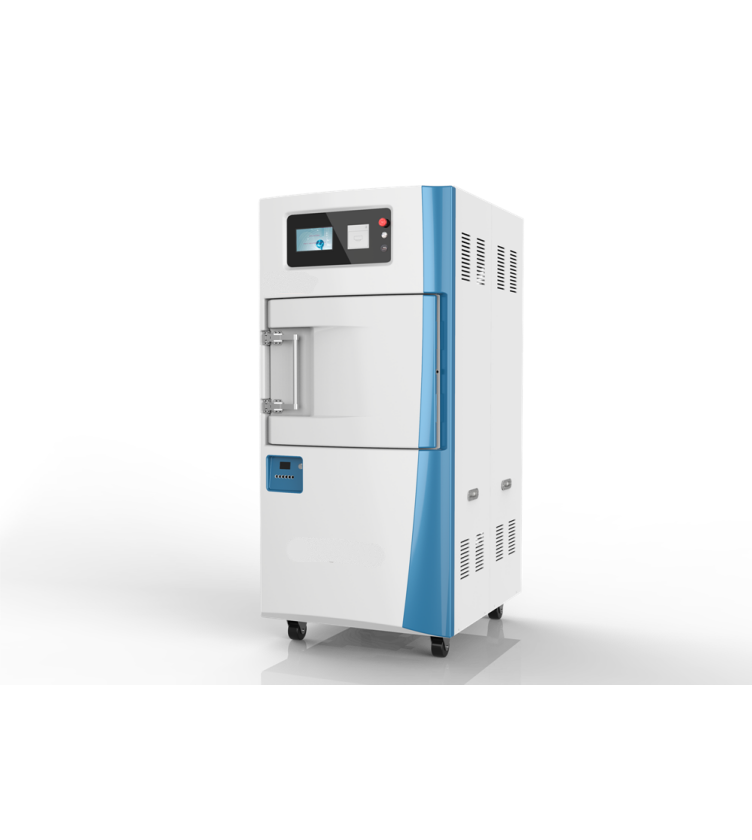

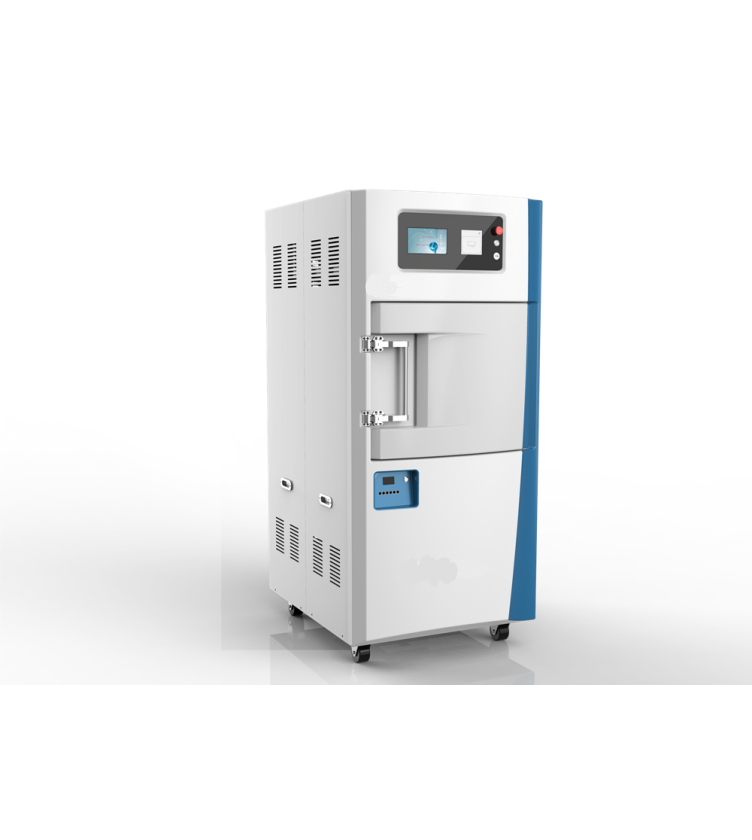

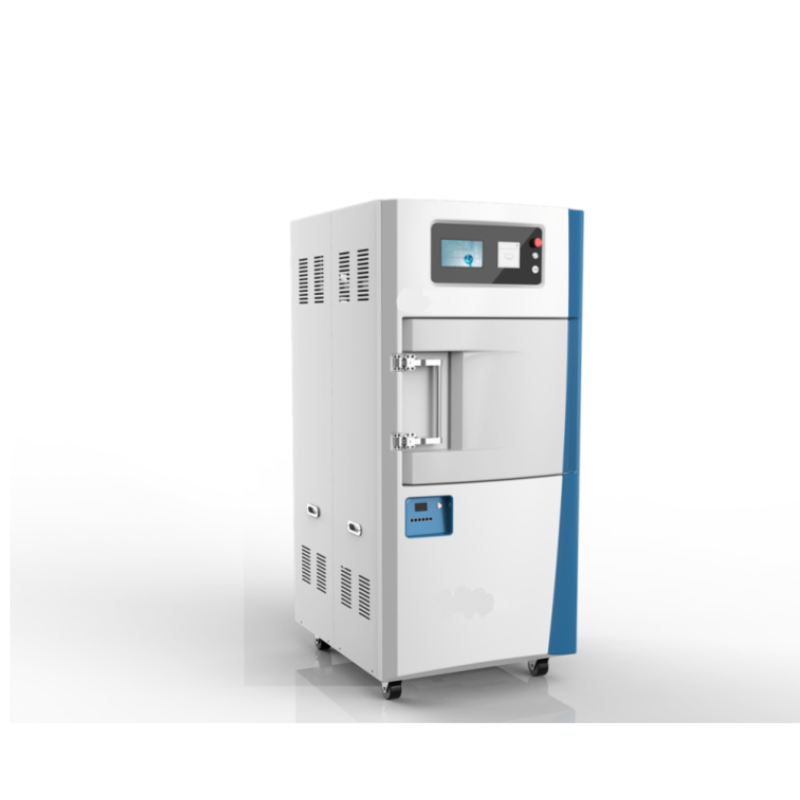

Ethylene Oxide Gas Sterilizer SQ XH

  • Ethylene oxide sterilizers use reactive ethylene oxide gas to sterilize items in sealed chambers under controlled temp, pressure, and humidity.

  • Sterilizes medical devices (endoscopes, implants) and materials (metal, glass, silicone). Models SQ – XH120 (126L, 3.0KVA, 224KG) and SQ – XH220 (192L, 3.6KVA, 247KG) available.

  • Sterilizes medical tools (endoscopes, implants) and materials. Models: SQ – XH120 (126L, 3.0KVA, 224KG); SQ – XH220 (192L, 3.6KVA, 247KG).

Description

An ethylene oxide sterilizer is a special – purpose equipment that uses pure ethylene oxide or ethylene oxide mixed gas to perform low – temperature sterilization on items sealed in the sterilization chamber under stable temperature, pressure, and humidity for a certain period of time. Ethylene oxide gas is a very reactive chemical sterilizing gas. It not only has a broad sterilization spectrum but also can achieve a reliable sterilization effect.

Ethylene oxide sterilization is a currently known effective gas sterilization method. It has advantages such as a broad bactericidal spectrum, strong penetrability, no damage to items, no environmental pollution, reliable chemical and biological detection methods, and easy storage of sterilized items. It is an essential low – temperature sterilization equipment for hospitals.

Scope of Application

Items and materials that can be sterilized
Uterine cavity mirrors, laparoscopes, laryngoscopes, probes, rigid endoscopes, flexible endoscopes, ophthalmic lenses, fiber optic cables, intracranial pressure sensors, cryotherapy probes, prostate resectoscopes, esophageal dilators, electrocautery instruments, defibrillator motors, laser heads, metal products, glass products, silicone products, rubber products, human implants, etc.

Model

Inner Tank Dimensions (mm)

Overall Dimensions (mm)

Volume

Power

Weight

SQ – XH120

700×450×400

976×790×1715

126L

3.0KVA

224KG

SQ – XH220

820×510×460

976×790×1715

192L

3.6KVA

247KG
