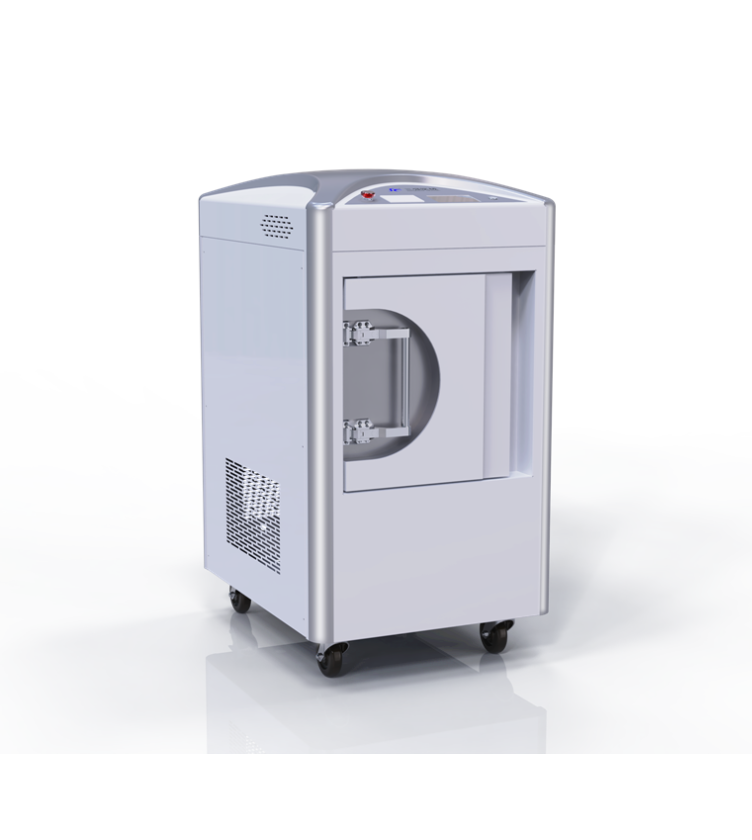

Ethylene Oxide Gas Sterilizer SQ H80
Ethylene oxide sterilization, the most effective gas method, ensures broad – spectrum, damage – free sterilization. Ideal for hospital low – temp sterilization needs.
Used in medical factories, ORs, labs. Models (SQ – H40/80/120/220/330) have sizes (246×450 – 760×545×712mm), volumes (21 – 294L), powers (2.6 – 3.6KVA), weights (45 – 295KG).
Features
Ethylene oxide sterilization is currently the most effective gas sterilization method known. It features a broad bactericidal spectrum, strong penetrability, no damage to items, no environmental pollution, reliable chemical and biological detection methods, and easy storage of sterilized items. It is an essential low - temperature sterilization equipment for hospitals.
Items and Materials That Can Be Sterilized
Uterine cavity mirrors, laparoscopes, laryngoscopes, probes, rigid endoscopes, flexible endoscopes, ophthalmic lenses, fiber optic cables, intracranial sensors, cryotherapy probes, prostate resectoscopes, esophageal dilators, electro - medical devices, defibrillator motors, laser heads, metal products, glass products, silicone products, rubber products, Chinese medicine, Western medicine, human implants, etc.
Application Scenarios
Medical device manufacturers, manufacturers of disposable medical supplies, operating rooms, university laboratories, disinfection supply centers.
Parameter
MODEL | INNER TANK DIMENSIONS (MM) | OVERALL DIMENSIONS (MM) | VOLUME/EFFECTIVE VOLUME | POWER | WEIGHT |
|---|---|---|---|---|---|
SQ-H40 | Φ246×450 | 730×510×410 | 21L | 3.3KVA | 45KG |
SQ-H80 | 585×275×422 | 795×615×1140 | 67L | 2.6KVA | 148KG |
SQ-H120 | 585×375×472 | 795×615×1140 | 103L | 3.0KVA | 177KG |
SQ-H220 | 705×505×552 | 968×800×1240 | 196L | 3.3KVA | 243KG |
SQ-H330 | 760×545×712 | 968×800×1400 |
