Superiority: Excellent Optical Imaging

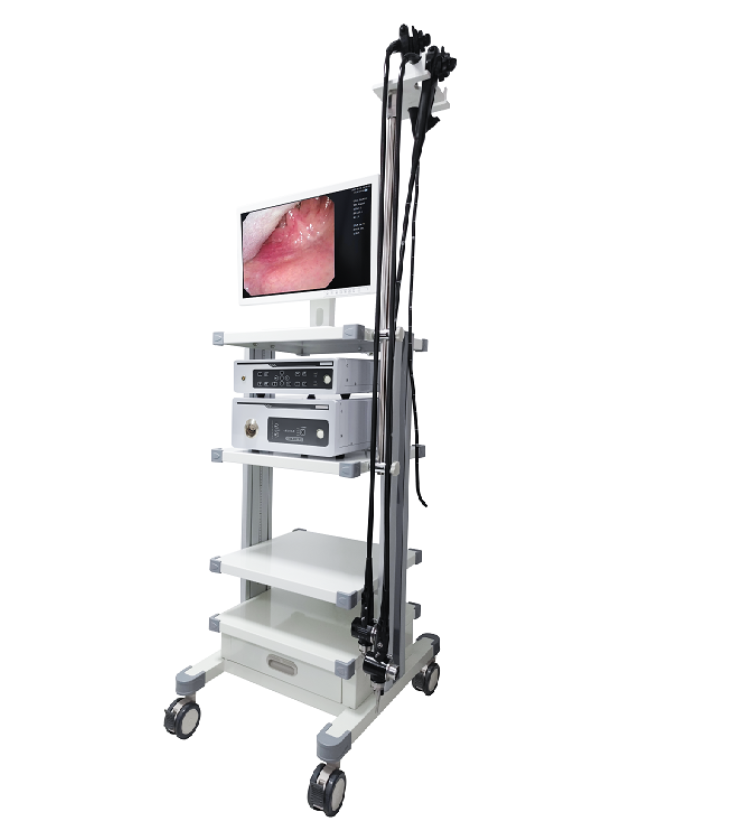

● The electronic gastroscope uses a high-definition 1-megapixel CMOS sensor for high-clarity imaging, facilitating the detection of minimal lesions during routine examinations to avoid missed diagnoses. With a large 2.8mm biopsy channel, it serves as a versatile endoscope for both routine diagnosis and treatment, enabling effective suction while inserting accessories.
● The perfect full-screen display with high-quality imaging allows you to view images with a maximum 120° field of view.
Electronic Endoscope Features
● The operating system is meticulously designed by professional engineers with experience from Germany, fully conforming to ergonomic principles for a more comfortable grip and flexible operation.
● The bending mechanism adopts a chain-driven structure, with a lightweight and elastic bending section. Its excellent operational and insertion performance ensures users feel no fatigue during operation.
● The bending section is designed for long service life, significantly improving the overall durability of the endoscope. The slender insertion tube, which transitions from soft to firm at the front end, allows users to insert and rotate it with ease, enhancing treatment performance and minimizing patient discomfort.
● With a truly fully waterproof structure, the electronic endoscope can be entirely immersed in disinfectant for cleaning and disinfection, reducing cross-infection risks. A convenient leak detector promptly confirms whether water has entered due to damage, preventing equipment failure.
● The light guide connector is crafted with new materials and processes, featuring a novel, aesthetically pleasing, and lightweight design.
● The DSP digital processing circuit reduces signal distortion, ensuring high-quality images from the electronic endoscope.
● Automatic and manual white balance, along with excellent color adjustment functions, ensure true-to-life image reproduction.
● Contour enhancement and adjustable metering range allow customization as needed. An automatic electronic shutter ensures appropriately exposed and sharply contoured images in all conditions.
● A unique continuous four-frame image freezing and storage function enables simultaneous freezing and storage of lesion images from multiple locations, displaying four frames simultaneously with a single-frame local magnification function.
| Category |
Parameter |
Specification |
| Optical System |
Field of View (FOV) |
140° |
|
Direction of View |
0° (Forward Viewing) |
|
Depth of Field |
3–100mm |
| Distal End |
Outer Diameter |
9.6mm |
| Insertion Tube |
Outer Diameter |
9.6mm |
| Bending Section |
Bending Angle |
Up 210° / Down 90° / Left-Right 100° each |
| Working Length |
|
1050mm |
| Total Length |
|
1345mm |
| Instrument Channel |
Inner Diameter |
2.8mm |
