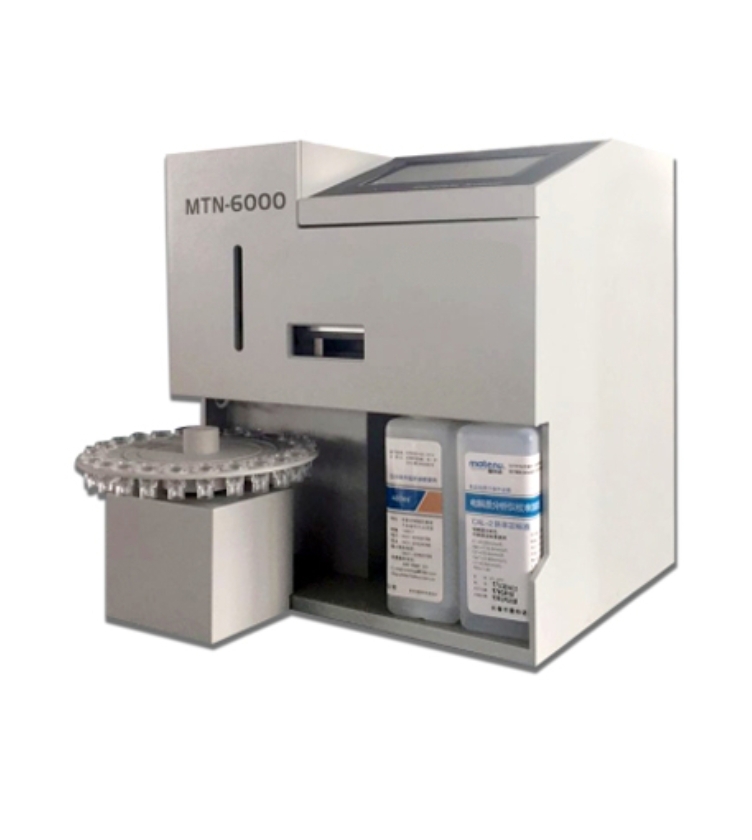

Electrolyte Analyzer MTN 6000
-
Auto electrode tracking/calibration (eliminates drift). Direct ISE measurement for K⁺/Na⁺/Cl⁻/Ca⁺⁺/Li/pH in serum, whole blood, CSF, diluted urine.
-
20-position auto-sampler (unlimited loading), 150μL sample. 1min/test, auto sampling/rinsing/printing. Touchscreen + RS232 (connect workstations).
-
Transparent electrode cavity (easy observation). Solenoid valve flushing (anti-clogging), auto protein cleaning. Operates 5-40℃, ≤85%RH, 220V±22V.
Description
Performance characteristics
-
Automatic tracking and calibration of electrode status eliminates the problem of electrode drift. It can directly measure the concentrations of K+, Na+, Cl -, Ca++,Li, and pH in serum, plasma, whole blood, cerebrospinal fluid, and diluted urine.
-
The transparent electrode cavity makes it easier to observe。
-
Sensor based touch screen design makes operation more convenient.
-
Intelligent maintenance free design.
-
Fully automatic sampling, equipped with an automatic sampler, with 20 sample positions for cyclic use and unlimited sample addition; Direct measurement using ion selective electrode method.
Technical parameter
Test project：K+、Na+、Cl-、Ca++、nCa++、TCa++、Li、PH
Measuring method：Ion selective electrode (ISE) direct method.
Sample type：Serum, plasma, whole blood, cerebrospinal fluid, and diluted urine.
Sample size：150μl
Injection method：Fully automatic sampling, equipped with an automatic sampler,with 20 sample positions for cyclic use and unlimited
sample addition.
Washing method：By using an electromagnetic valve for rapid flushing of gas-liquid segments, the electrode pipeline is thoroughly
cleaned and not easily clogged.
Measurement time：Not exceeding 1 minute (depending on the measured equilibrium time, including suction, rinsing, and printing).
Calibration：Automatic tracking, calibration and correction of electrode status, eliminating the problem of electrode drift.
Quality Control：Specially designed quality control testing and statistical functions, easy to use.
Intelligent design：Calibration, injection, measurement, rinsing, display, and printing of reports are automatically completed by the instrument.
Automatic flushing：Automatic scheduled cleaning function for protein solution to remove pipeline protein adsorption.
Display：Large screen sensor touch screen design, fully Chinese display, more convenient operation, and easy conversation between people.
Printer：Built in high-speed low-noise thermal printer.
Interface：Standard RS232 interface, capable of connecting workstations and central computers.
Usage conditions
Power Supply：-220V±22V，50±1Hz
Ambient temperature：5℃-40℃；
Relative humidity：≤85%RH
