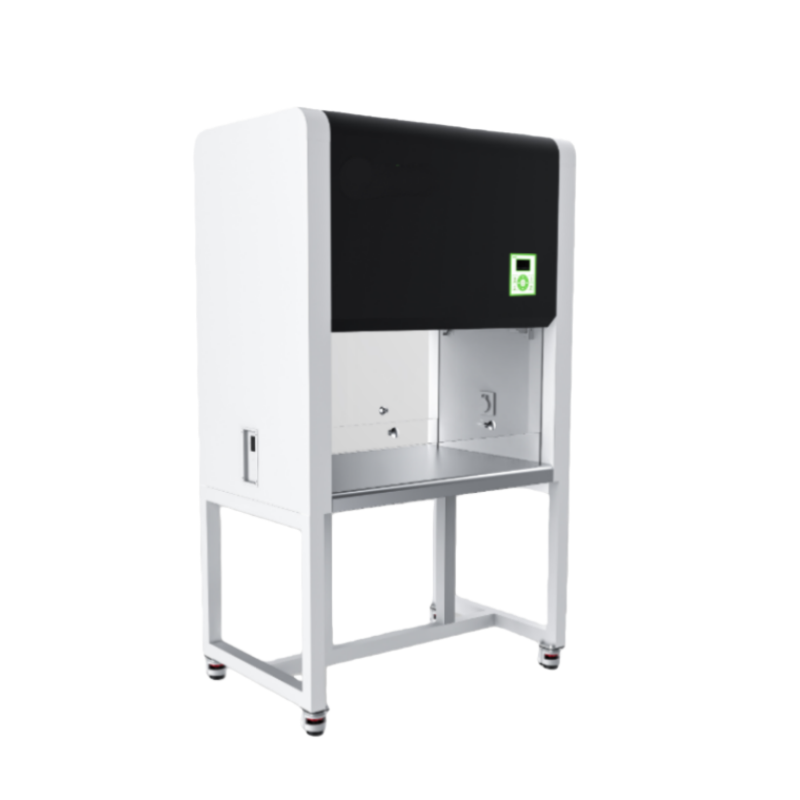

Double-sided Vertical Flow Clean Workbench DE
-
Branded fan + dual-stage filtration (pre-filter + HEPA 99.995%@0.3μm). Pre-filter extends HEPA lifespan by 30%, ensuring ISO 5 (Class 100) cleanliness for sterile lab tasks.
-
7-inch touchscreen tracks real-time airflow (0.30-0.45m/s), UV/filter runtimes. Alerts for height/speed issues + scheduled timing enables unmanned sterilization cycles.
-
Full-steel (1.2mm) cabinet (electrostatic coating, corrosion-resistant). 304 stainless worktop (seamless, easy-clean). Customizable single/double models + Form casters for lab adaptability.
Description
Vertical/Horizontal Flow Clean Bench
01. Equipped with a branded fan, featuring low failure rate, excellent durability, and reliability.
02. Equipped with a HEPA filter, achieving 99.995% filtration efficiency @ 0.3μm.
03. Pre-filter included to intercept large particles, extending the high-efficiency filter’s lifespan.
04. 7-inch HD touchscreen with multi-interface display: real-time wind speed, gear, time, UV lamp/filter runtime.
05. UV lamp & fan support scheduled timing (multi-group reservations configurable).
06. Audible-visual alarm for front glass door (below/above safe height).
07. Low wind speed alarm: alerts at ≤80% of set speed.
08. Adjustable air volume fan system: maintains average wind speed for aseptic operations.
09. Full clean airflow coverage in the work area, ensuring a sterile environment.
10. UV sterilization lamp delay start (5~20s adjustable).
11. Full-steel construction: 1.2mm cold-rolled steel cabinet with electrostatic coating (anti-aging, corrosion-resistant).
12. One-piece 304 stainless steel worktop (no dead corners, easy to clean/maintain).
13. Explosion-proof tempered glass side windows (wide view, good lighting, easy observation).
14. Counterweight front glass design: freely adjustable height, smooth lifting, precise positioning.
15. Front glass door: 6mm safety explosion-proof tempered glass.
16. High-strength base with Form casters.
17. Waterproof sockets for flexible operation.
18. Customizable to meet diverse customer needs.
| Product Model | CB-940AVM-H | CB-1270AVM-H | CB-1340AVM-H | CB-1600AVM-H | CB-940BVM-H | CB-1270BVM-H | CB-1600BVM-H |
|---|---|---|---|---|---|---|---|
| Overall Dimensions (mm) | 1120×650×1750 | 1340×650×1750 | 1460×560×1850 | 1800×650×1750 | 1100×700×1880 | 1340×700×1880 | 1800×700×1880 |
| Work Area (mm) | 940×600×600 | 1270×600×600 | 1340×530×650 | 1600×600×600 | 940×560×600 | 1270×560×600 | 1600×560×600 |
| Structure Type | Single-sided/Single | Single-sided/Small Double | Single-sided/Double | Single-sided/Triple | Double-sided/Single | Double-sided/Double | Double-sided/Triple |
| Airflow Mode | Vertical Laminar Flow | Vertical Laminar Flow | Vertical Laminar Flow | Vertical Laminar Flow | Vertical Laminar Flow | Vertical Laminar Flow | Vertical Laminar Flow |
| Product Protection (Settling Bacteria) | Colony ≤0.5CFU/30min | Colony ≤0.5CFU/30min | Colony ≤0.5CFU/30min | Colony ≤0.5CFU/30min | Colony ≤0.5CFU/30min | Colony ≤0.5CFU/30min | Colony ≤0.5CFU/30min |
| Cleanliness Class | ISO 5 (Class 100) | ISO 5 (Class 100) | ISO 5 (Class 100) | ISO 5 (Class 100) | ISO 5 (Class 100) | ISO 5 (Class 100) | ISO 5 (Class 100) |
| Nominal Airflow Velocity | 0.30~0.45m/s | 0.30~0.45m/s | 0.30~0.45m/s | 0.30~0.45m/s | 0.30~0.45m/s | 0.30~0.45m/s | 0.30~0.45m/s |
| Noise | ≤65dB(A) | ≤65dB(A) | ≤65dB(A) | ≤65dB(A) | ≤65dB(A) | ≤65dB(A) | ≤65dB(A) |
| Front Window Safe Height | 200~350mm | 200~350mm | 200~350mm | 200~350mm | 200~350mm | 200~350mm | 200~350mm |
| Vibration Half-Peak | ≤5μm (Table Center) | ≤5μm (Table Center) | ≤5μm (Table Center) | ≤5μm (Table Center) | ≤5μm (Table Center) | ≤5μm (Table Center) | ≤5μm (Table Center) |
