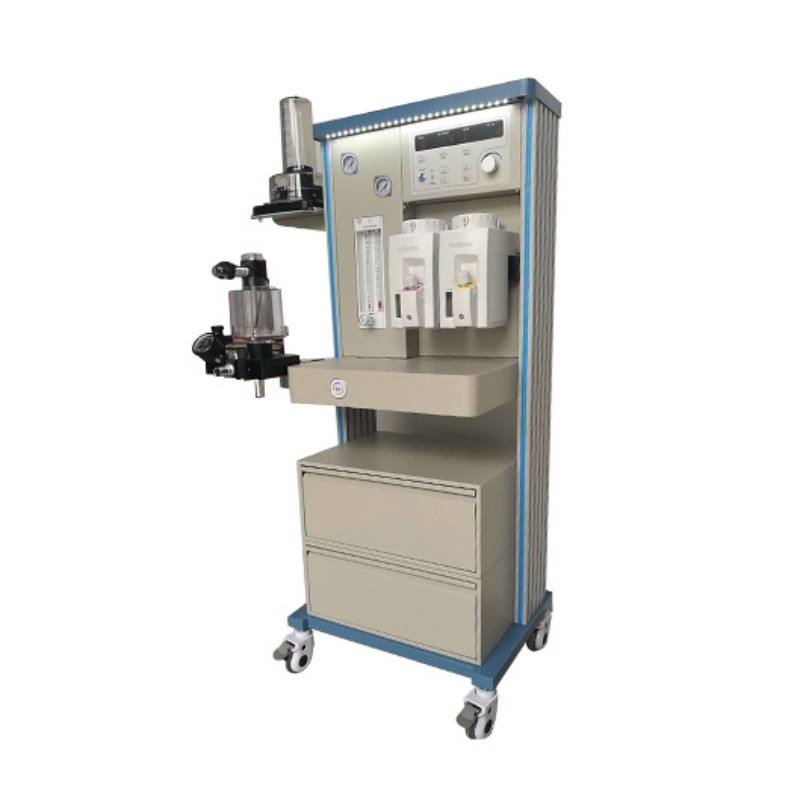

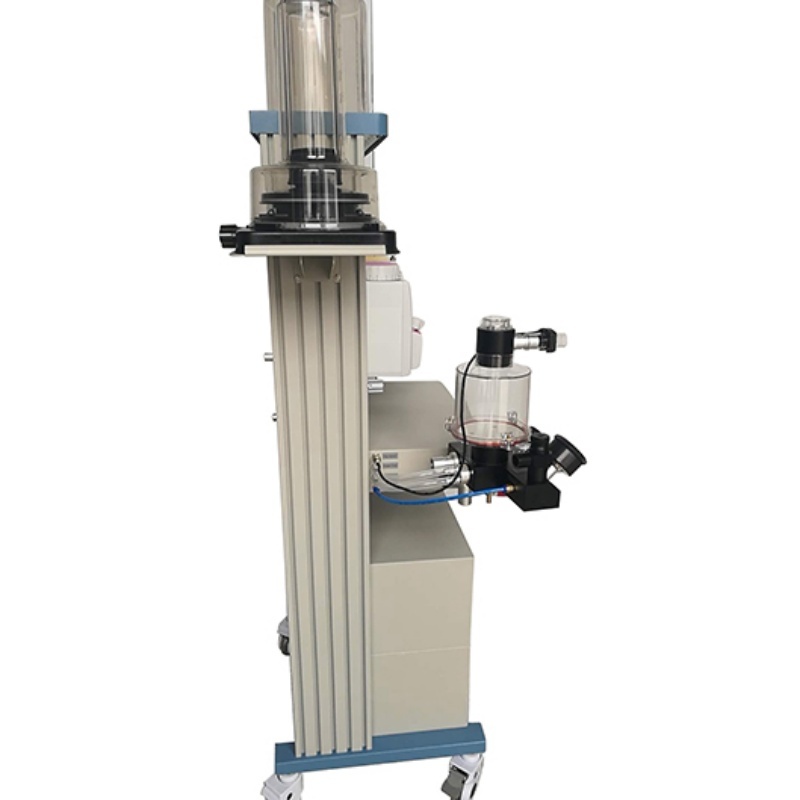

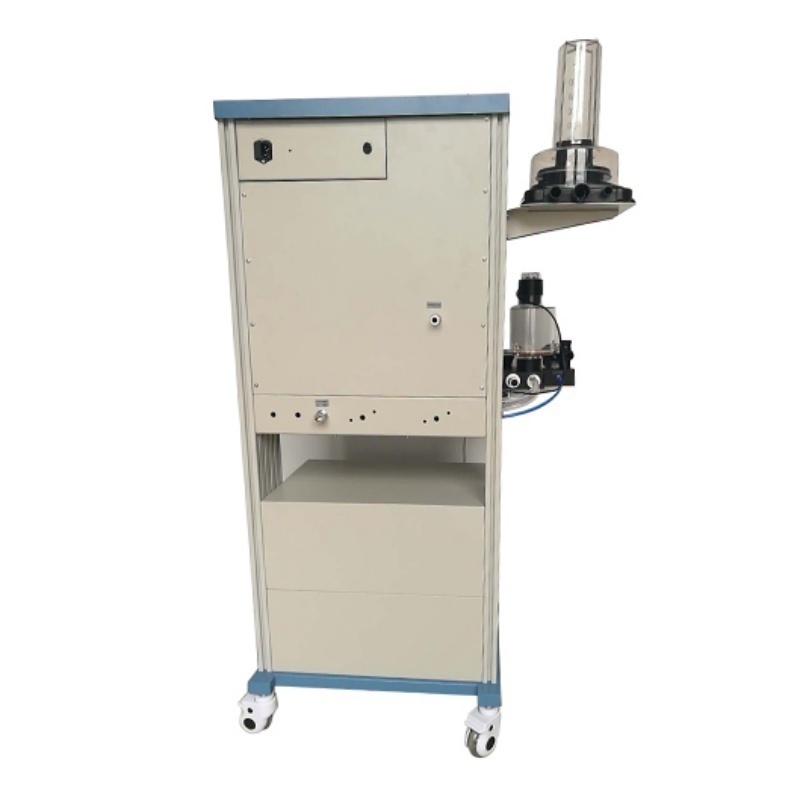

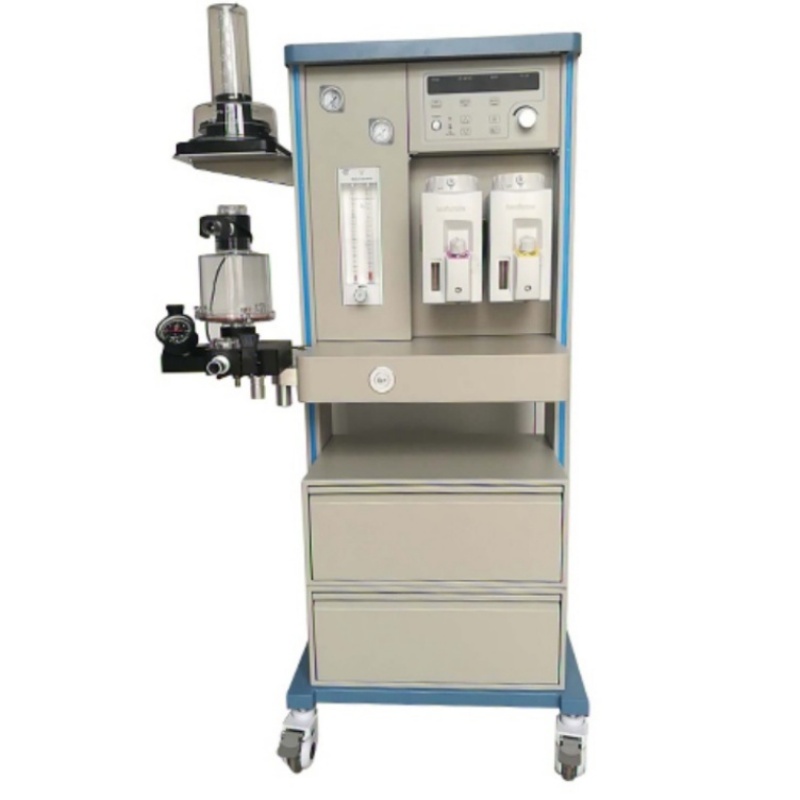

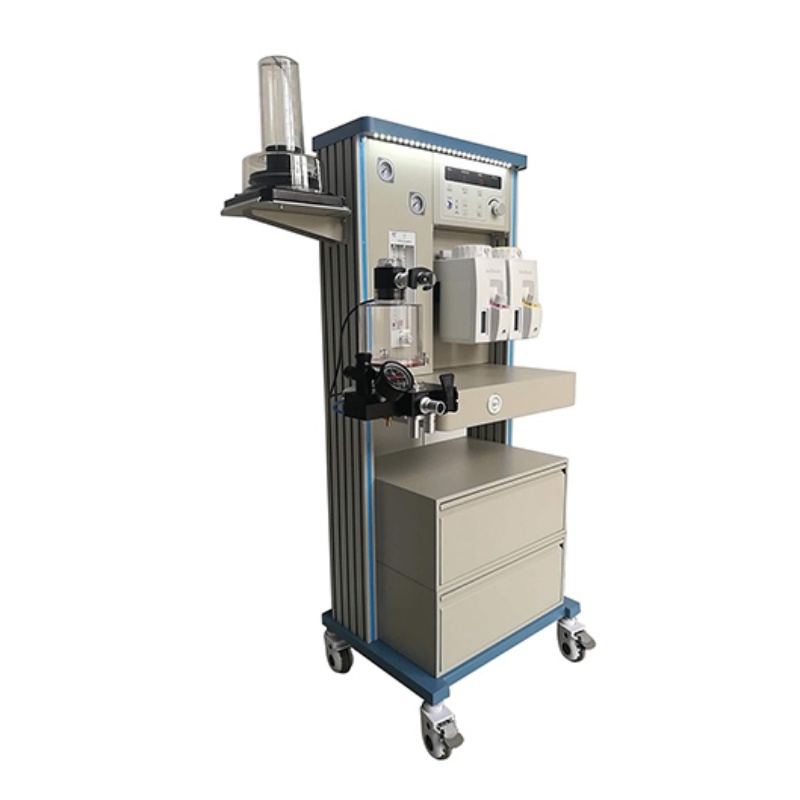

Veterinary Anesthesia Machine DF DA1000Vet

• Small animal bellow design(0-300ml)
• (300-2000ml)optional
• Pneumatically driven and electrically controlled
• Display:HD LCD digital display
• Monitoring：Tidal volume,breathing rate,I:E ratio,Peak airway pressure,
• TV:50-1600ml
• Breathing rate:4-60bpm
• I:E ration:1:1~1:4 adjustable
• Upper airway pressure:2~6kpa
• Lower airway pressure:0.5~2kpa
• Battery low alarm
• Battery no power indicator
• Alarm Silence
• Manuel/Auto Switch
• Product introduction

Main Unit:

• Working Mode: Closed,Semi-closed, semi-open system, Open
• Driven mode: Pneumatically driven manual controlled
• Application:0.5-100kg animal
• Anesthesia gas source switch:start or stop the gas source control
• Pressure Gas Gauge:four press gauge:one is oxygen source pressure
• one is oxygen working
• Alarm parameter:Upper tidal volume alarm,low oxygen alarm,Apnea,Power failure
• High precious anesthesia vaporizer,the agent output is continuous and stable, and precise.
• the agent type: Isoflurane, Enflurane,halothane,sevoflurane.
• Oxygen flush: 25L/min~75L/min
• Airway pressure: O2:0.25Mpa~0.65Mpa
• Power:220V±10%,50HZ±1% or 110V±10%,60HZ±1%

Flow meter:

• O2 Two tube flowmeter
• Two tube:0~1L/min,
• 1~10L/min
• O2& Air Flowmeter Optioanl
• O2&N2O& Air Flowmetr Optiaoni

Circle Absorber:

• Integrated and sterilized at 134℃ high temperature and high pressure
• Visible inspiration valve and expiration valve
• Safety valve pressure limit:6Kpa
• Quick change soda lime system
• Good air tightness,high reliability and minor respiratory impedance
• Manual/ventilation switch
