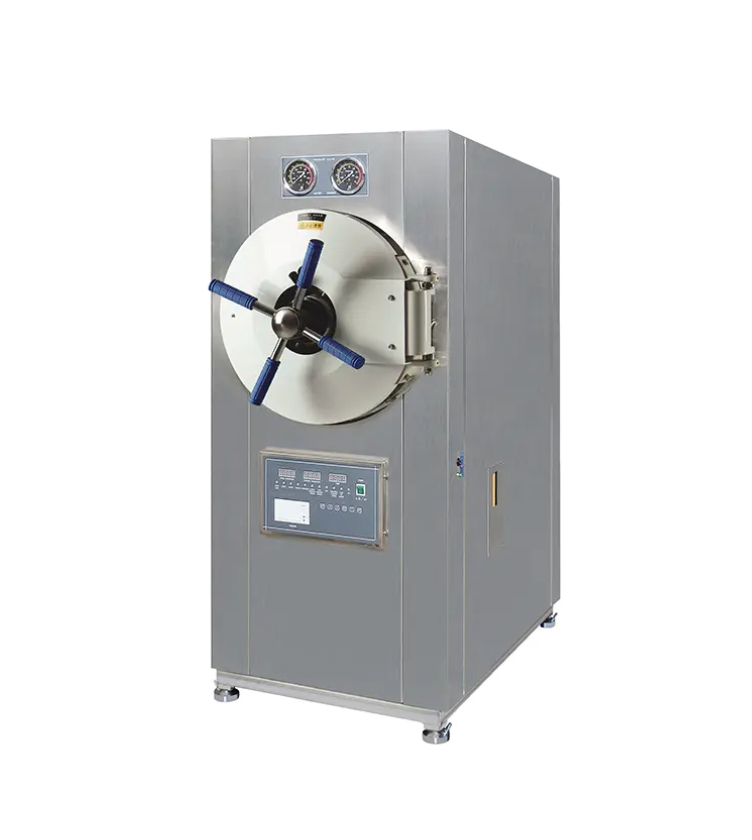

Complete stainless steel Horizontal Pressure Steam Sterilizer With printer BJ

  • All – stainless – steel horizontal pressure steam sterilizers (WS – 150YDD/200YDD/280YDD, 150 – 280L). Horizontal design for space – saving & uniform steam. Auto – controlled, easy to operate. With drying, over – temp/pressure protect.

  • Safety: Door locks till 0.027MPa, won’t start if door loose. Safety valve releases steam at 0.24MPa. Water – leak cuts power + alarms. Full stainless – steel, built – in printer for cycle records.

  • Specs: 0.22Mpa, 134℃ (40 – 134℃ adjust), 0 – 99min sterilize/dry, ≤±2℃ heat. Power 9 – 12KW. Fit medical/lab sterilization with safety, traceability.

Description

Technical Specifications

Complete stainless steel Horizontal Pressure Steam Sterilizer horizontal design optimizes space utilization and facilitates uniform steam distribution within the chamber. equipped with precise controls for managing temperature, pressure, and sterilization cycles, ensuring effective pathogen elimination. inclusion of a built-in printer allows for the automatic documentation of sterilization cycles. This feature enhances traceability and provides a record of each sterilization process. The sterilizer is suitable for a range of applications, including medical and laboratory settings, due to its horizontal design and stainless steel construction. The sterilizer features an efficient water management system to ensure steam generation during the sterilization process.

  • Automatially controlled sterilizing process, easy to operate.
  • With drying function, suitable for medical dressing drying.
  • With over-temperature, over-pressure auto-protect.
  • The door can not be opened until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started if the door doesn't close well.
  • The safety valve will be open automatically when the inner pressure is over 0.24MPa and the steam would be exhausted in the water tank.
  • Automatically cut off the power if the water leak happens, and alarm in the meanwhile.
  • Fully stainless steel structure.
  • With printer.

Table

MODEL/TECHNICAL DATA

WS-150YDD

WS-200YDD

WS -280YDD

Sterilizing chamber volume

150L (Φ440×1000mm)

200L (Φ515×1000mm)

280L (Φ600×1000mm)

Working pressure

0.22Mpa

0.22Mpa

0.22Mpa

Working temperature

134℃

134℃

134℃

Temperature adjust range

40 - 134℃

40 - 134℃

40 - 134℃

Time for sterilization

0-99min

0-99min

0-99min

Time for drying

0-99min

0-99min

0-99min

Heat average

≤±2℃

≤±2℃

≤±2℃

Power

9kw/380V 50Hz

9kw/380V 50Hz

9kw/380V 50Hz

Dimension (mm)

1400×650×1820

1400×750×1700

1520×910×1900

Transport dimension(mm)

1560×860×1820

1560×910×1880

1680×1060×2050

G.W/N.W

430/340kg

436/350Kg

570/462Kg
