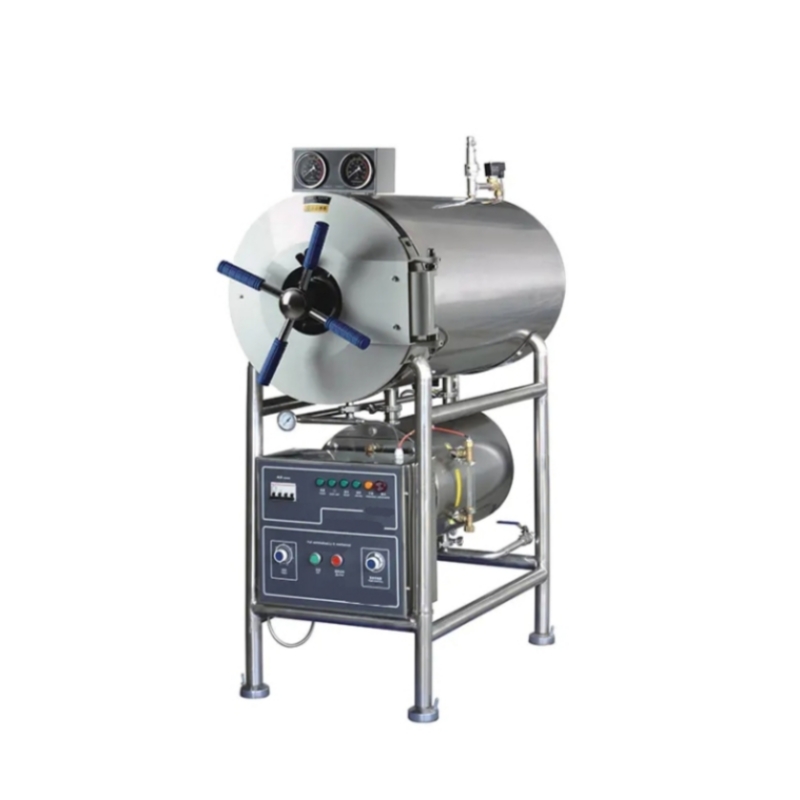

Complete Stainless Steel Horizontal Cylindrical Pressure Steam Sterilizer BJ

  • Safety: Door won’t open till 0.027MPa, won’t start if door loose. Safety valve releases steam to water tank at 0.24MPa. Water – leak triggers power cut + alarm. Full stainless – steel structure for durability.

  • Specs: 0.22Mpa, 134℃ (40 – 134℃ adjust), 0 – 60min sterilize/dry, ≤±2℃ heat. Power 9 – 18KW. Meet medical/lab sterilization needs with safety and efficiency.

Description

Technical Specifications

Complete stainless steel Horizontal Cylindrical Pressure Steam Sterilizer With over-temperature, over-pressure auto-protect. The sterilizer is constructed entirely of stainless steel, ensuring durability, corrosion resistance, and easy maintenance. The horizontal cylindrical design optimizes space utilization while providing efficient steam distribution within the chamber. The sterilizer incorporates an over-temperature protection mechanism to prevent excessive heat, ensuring the safety of the equipment and its contents. The door cannot be opened until the pressure within the chamber is reduced to a safe level (0.027MPa), enhancing operator safety. In the event of a water shortage, the sterilizer will automatically cut off power to prevent damage. An alarm will signal the occurrence. The inclusion of a printer provides a documentation system for tracking and recording sterilization cycles, ensuring compliance with regulatory standards.

  • Automatially controlled sterilizing process, easy to operate.
  • With drying function, suitable for medical dressing drying.
  • With over-temperature, over-pressure auto-protect.
  • The door can not be opened until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started if the door doesn't close well.
  • The safety valve will be open automatically when the inner pressure is over 0.24MPa and the steam would be exhausted in the water tank.
  • Automatically cut off the power if the water leak happens, and alarm in the meanwhile.
  • Fully stainless steel structure.

MODEL/TECHNICAL DATA

WS-150YDC

WS-200YDC

WS-280YDC

WS-400YDC

Sterilizing chamber volume

150L

200L

280L

400L

Φ440×1000mm

Φ515×1000mm

Φ600×1000mm

Φ700×1100

Working pressure

0.22Mpa

0.22Mpa

0.22Mpa

0.22Mpa

Working temperature

134℃

134℃

134℃

134℃

Temperature adjust range

40 - 134℃

40 - 134℃

40 - 134℃

40 - 134℃

Time for sterilization

0 - 60min

0 - 60min

0 - 60min

0 - 60min

Time for drying

0 - 60min

0 - 60min

0 - 60min

0 - 60min

Heat average

≤±2℃

≤±2℃

≤±2℃

≤±2℃

Power

9kw/380V 50Hz

9kw/380V 50Hz

12kw/380V 50Hz

18kw/380V 50Hz

Dimension (mm)

1400×600×1300

1400×670×1650

1400×770×1780

1430×880×1830

Transport dimension(mm)

1560×750×1850

1560×820×1850

1680×920×1950

1600×1050×2050

G.W/N.W

320/240kg

350/260Kg

465/365kg

530/420kg
