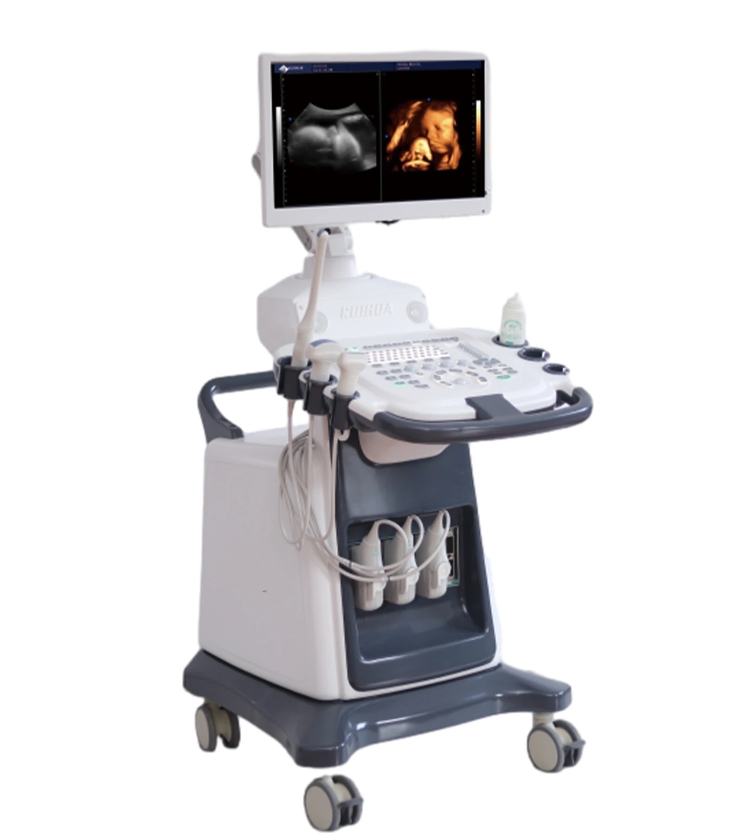

Color Doppler Ultrasound RH DU8-M9

Application range : It is suitable for diagnosis and analysis of the abdomen (liver, gallbladder, kidney, pancreas, spleen), obstetrics and gynecology, heart, thyroid, small organs, urology, superficial and orthopedic surgery. It can perform power diagnosis on large blood vessels such as liver, gallbladder, spleen, kidney and carotid artery.

Imaging unit Digital 2D grayscale imaging unit

Digital Color Doppler Unit

Digital Spectral Doppler Display and Analysis Unit

Digital power blood flow imaging unit

Color Doppler operating frequency Color and Doppler operating frequency can be digitally displayed and adjusted independently

Beam processing: fully digital beam former, continuous dynamic focusing, dynamic variable aperture, dynamic beam apodization, dynamic filtering;

Digital beam enhancer, multiple beam synthesis, inverted pulse harmonic imaging, Doppler imaging (including color, energy, directional energy Doppler mode), spectral Doppler imaging (including pulse Doppler, continuous wave Doppler), speckle noise suppression technology, speckle softening technology

Extended pulse Extended pulse imaging technology improves image penetration and increases the ability to examine difficult patients in the far field

Probe array element number ≥ 128

Image magnification : real-time partial magnification, shiftable, 6 times magnification, 16 levels adjustable

Image pre-processing (total gain, acoustic power, gray value, dynamic range);

Post-processing (edge enhancement, frame averaging, line averaging, gamma correction, contrast, brightness);

Correlation processing, logarithmic compression, TGC control, interpolation, black and white grayscale flip, left and right flip, up and down flip, frame correlation, smoothing, black and white grayscale conversion, grayscale suppression

Image pseudo color function has image pseudo color function

Movie playback image retrieval, movie loop playback: ≥ 1536 frames, playback time ≥ 75 seconds

Chinese and English interface display: hospital name, department, patient ID , name, date, time, probe number, frequency, gain, depth, focus position, magnification, puncture guide line, text annotations, etc.

Basic Measurements

Calculation function: B- mode basic measurements: distance, angle, perimeter and area, volume, stenosis rate, histogram, cross-section

M mode basic measurement: heart rate, time, distance, speed

Doppler measurements: time, heart rate, velocity, acceleration

Routine general measurement: distance, area, perimeter, volume, ratio, angle, histogram, cross-section, residual urine volume, stenosis rate, heart rate, time, slope speed

Heart measurements and calculations Time, slope, heart rate, left ventricle measurement, left ventricular function, wall thickness assessment, mitral valve measurement, aorta measurement, body surface area calculation, heart measurement report

The system presets of the inspection mode provide real-time, non-preset 2D, color Doppler and spectral Doppler modes. One-touch automatic image optimization adjustment

The probe is connected to 4 interfaces, all activated and automatically identified

Probe receiving dynamic range ≥ 150dB ( 40dB ~ 150dB visible, adjustable)

Interface language : Chinese / English interface, switchable, Chinese / English input possible
