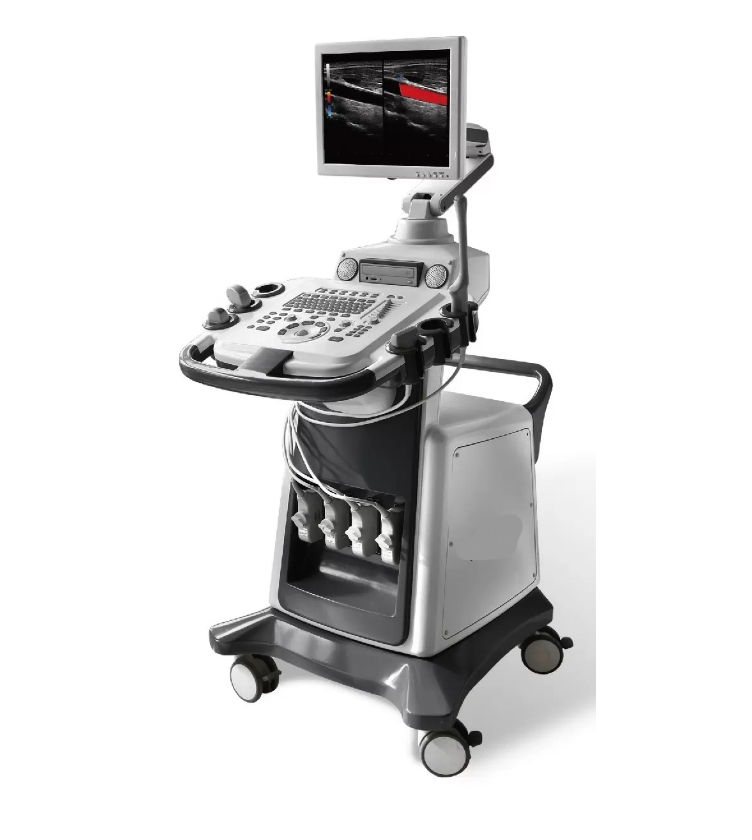

Color Doppler Ultrasound Cart RH DU8-M6

Application range : It is suitable for diagnosis and analysis of the abdomen (liver, gallbladder, kidney, pancreas, spleen), obstetrics and gynecology, heart, thyroid, small organs, urology, superficial and orthopedic surgery. It can perform power diagnosis on large blood vessels such as liver, gallbladder, spleen, kidney and carotid artery.

Basic Measurements

Calculation function: B- mode basic measurements: distance, angle, perimeter and area, volume, stenosis rate, histogram, cross-section

M mode basic measurement: heart rate, time, distance, speed Doppler measurement: time, heart rate, speed, acceleration

Routine general measurement: distance, area, perimeter, volume, ratio, angle, histogram, cross-section, residual urine volume, stenosis rate, heart rate, time, slope speed

Gynecological measurement and calculation of uterus, endometrium, cervix, ovary, follicle measurement, obstetric report function

Obstetric measurement and calculation of distance, gestational sac GS , biparietal diameter BPD , head circumference HC , abdominal circumference AC , femur length FL , vertebral length LV , humerus length HL , crown-rump length CRL , occipital-frontal diameter OFD , abdominal transverse diameter TAD , hip angle measurement (hip dysplasia), gestational age, fetal weight WT , due date calculation, obstetric Chinese standard formula, fetal growth curve, AF-I fetal physiological scoring system, obstetric report function

Urology measurements and calculations Prostate measurement, bladder volume, left and right kidney measurement, residual urine volume measurement, urology measurement report

Heart measurements and calculations Time, slope, heart rate, left ventricle measurement, left ventricular function, wall thickness assessment, mitral valve measurement, aorta measurement, body surface area calculation, heart measurement report

Peripheral vascular measurement and analysis Peripheral vascular measurement and analysis

Doppler blood flow measurement and analysis Spectral Doppler automatic envelope measurement

The system presets of the inspection mode provide real-time, non-preset 2D, color Doppler and spectral Doppler modes. One-touch automatic image optimization adjustment

Transmitting sound beam focusing transmission: 8 segments

Signal input and output power interface, S-video interface, network port, USB interface, HDMI interface;

Support PAL , NTSC and other video standards,

Display ≥ 15 -inch high-resolution color progressive scan full-viewing angle LCD display , free arm 360 ° rotation, operation panel can rotate 20 ° left and right;

The probe is connected to 4 interfaces, all activated and automatically identified
